Sharp XV-Z200U Home Theater Video Projector User Manual

Table of Contents

1. Introduction
2. Package Contents
3. Setting Up the Projector
4. Connecting Devices
5. Using the Projector
6. Troubleshooting
7. Frequently Asked Questions

1. Introduction

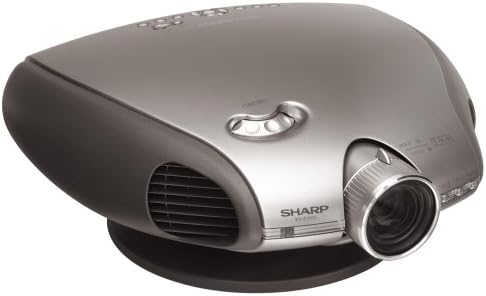

Welcome to the Sharp XV-Z200U Home Theater Video Projector. This high-quality projector is designed to provide you with an exceptional viewing experience for movies, presentations, and more. With its native resolution of 1024 x 576, high contrast ratio, and multiple connectivity options, this projector is perfect for both home and professional use.

2. Package Contents

• Sharp XV-Z200U Home Theater Video Projector
• Remote Control (with 2 AA batteries)
• Power Cord
• Swivel Stand
• User Manual

3. Setting Up the Projector

1. Place the projector on a flat, stable surface or mount it on a compatible tabletop mount.
2. Attach the swivel stand to the bottom of the projector if desired.
3. Connect the power cord to the projector and plug it into an electrical outlet.
4. Adjust the projector's position and angle to achieve the desired image size and focus.
5. Turn on the projector using the power button on the projector or the remote control.

4. Connecting Devices

The Sharp XV-Z200U projector accepts various input sources, including composite, S-video, component, DVI-I/HDCP, and analog computer inputs. To connect a device, follow the steps below:

1. Identify the appropriate input port on the projector for your device.
2. Connect the device to the projector using the appropriate cable (not included).
3. Turn on the connected device.
4. Press the "Input" button on the projector or remote control to select the corresponding input source.

5. Using the Projector

1. Use the remote control or the buttons on the projector to navigate the on-screen menu and adjust settings as needed.
2. Switch between 4:3 and 16:9 aspect ratios by pressing the "Aspect" button on the remote control.
3. Adjust the focus and zoom using the dials on the projector.
4. Use the keystone correction feature to correct image distortion if necessary.
5. Turn off the projector by pressing the power button and allowing the cooling fan to run until the projector shuts down completely.

6. Troubleshooting

No image or poor image quality

Check that the projector is connected to a device and the correct input source is selected. Adjust the focus and zoom dials on the projector. Ensure the device's resolution is compatible with the projector's native resolution.

Remote control not working

Check that the remote control has functioning batteries and is pointed directly at the projector's IR sensor. Ensure there are no obstacles between the remote control and the projector.

Overheating

Ensure the projector's air vents are not blocked and that there is adequate ventilation around the projector. Clean the air filter if necessary.

7. Frequently Asked Questions

Is the Sharp XV-Z200U projector compatible with HDTV signals?

Yes, this projector is HDTV signal compatible.

Can I connect my laptop to the projector?

Yes, you can connect your laptop to the projector using the appropriate input port and cable (not included).

Is the projector compatible with both PC and Mac?

Yes, the Sharp XV-Z200U projector is compatible with both PC and Mac devices.

What is the display resolution of the projector?

The native display resolution of the projector is 1024 x 576.

Q: What is the native resolution of the Sharp XV-Z200U Home Theater Video Projector?
A: The native resolution of the Sharp XV-Z200U Home Theater Video Projector is 1,024 x 576.

Q: Is the projector compatible with HDTV signals?
A: Yes, the Sharp XV-Z200U Home Theater Video Projector is compatible with HDTV signals.

Q: What aspect ratios does the projector support?
A: The Sharp XV-Z200U Home Theater Video Projector supports switchable 4:3 and 16:9 aspect ratios.

Q: What is the contrast ratio and brightness of the projector?
A: The Sharp XV-Z200U Home Theater Video Projector has a high 2,000:1 contrast ratio and 700 ANSI lumens of brightness.

Q: What types of inputs does the projector accept?
A: The Sharp XV-Z200U Home Theater Video Projector accepts composite, S-video, component, DVI-I/HDCP, and analog computer inputs.

Q: Is there a matching swivel stand included with the projector?
A: Yes, a matching swivel stand is included with the Sharp XV-Z200U Home Theater Video Projector.

Q: Is the projector compatible with PC and Mac computers?
A: Yes, the Sharp XV-Z200U Home Theater Video Projector is compatible with both PC and Mac computers.

Q: What are the dimensions and weight of the projector?
A: The dimensions of the Sharp XV-Z200U Home Theater Video Projector are 12.7 x 4.3 x 14.5 inches and it weighs 9 pounds.

Q: What is the connectivity technology used by the projector?
A: The Sharp XV-Z200U Home Theater Video Projector uses HDMI connectivity technology.

Q: What type of display does the projector use?
A: The Sharp XV-Z200U Home Theater Video Projector uses a DLP display.

Q: What is the form factor and mounting type of the projector?
A: The Sharp XV-Z200U Home Theater Video Projector has a portable form factor and tabletop mounting type.

Q: What type of controller does the projector use?
A: The Sharp XV-Z200U Home Theater Video Projector uses button control as its controller type.

Q: What devices is the projector compatible with?
A: The Sharp XV-Z200U Home Theater Video Projector is compatible with laptops.
