Dual Electronics LU53PB 3-Way High Performance Outdoor Indoor Speakers User Manual

Package Contents

• 2 x LU53PB Speakers
• 2 x Mounting Brackets
• 4 x Thumb Screws
• User Manual

Installation

1. Choose a suitable location for your speakers, ensuring they are protected from direct exposure to rain and sunlight.
2. Hold the mounting bracket against the wall or ceiling, making sure it is level, and mark the screw hole locations with a pencil.
3. Drill pilot holes at the marked locations using an appropriate drill bit for your wall or ceiling material.
4. Attach the mounting bracket to the wall or ceiling using suitable screws and wall anchors (not included).
5. Slide the speaker onto the mounting bracket and secure it in place using the included thumb screws.
6. Repeat steps 1-5 for the second speaker.

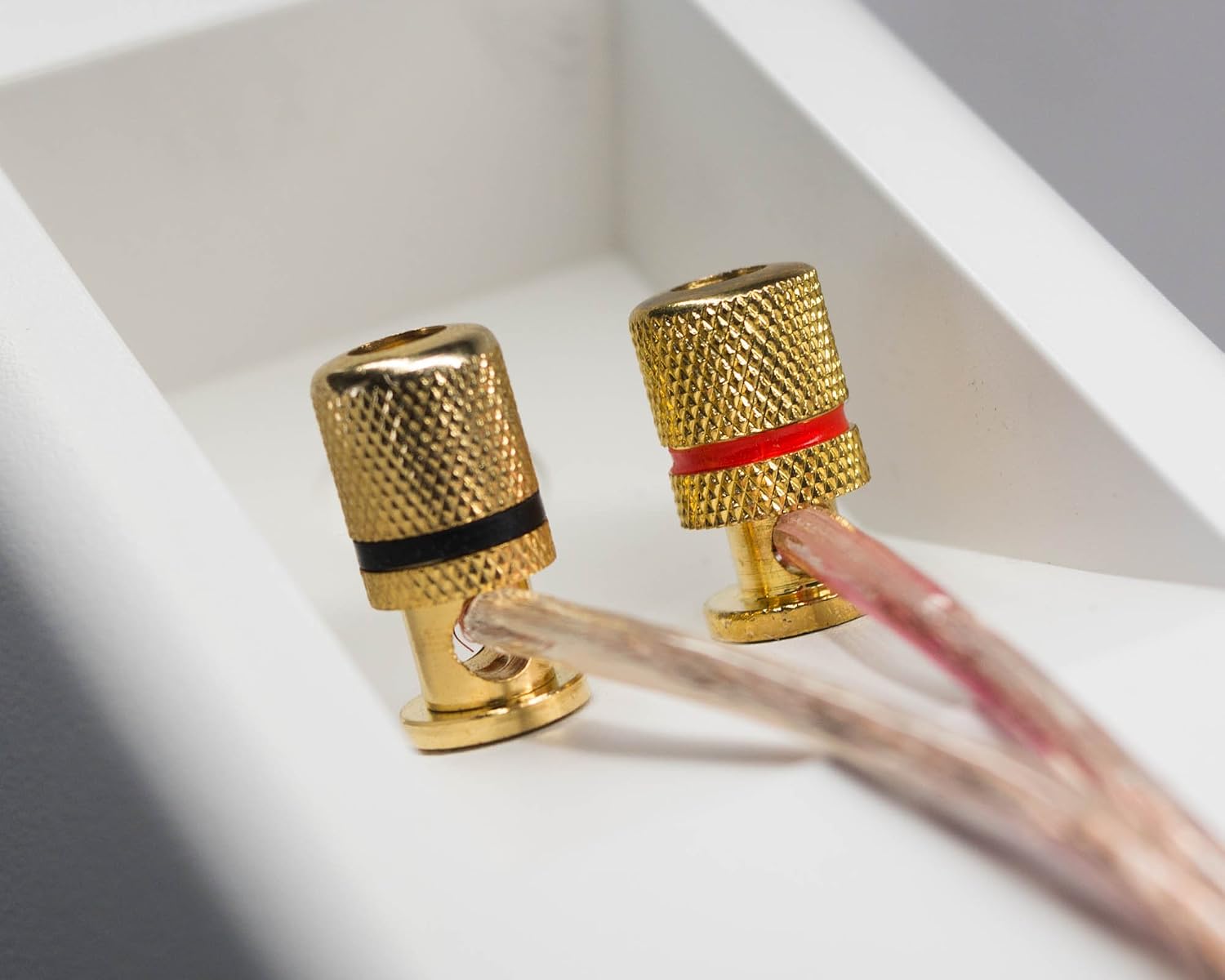

7. Connect speaker wires to the speakers and your audio source (amplifier, receiver, etc.) observing proper polarity (red to positive, black to negative).
8. Adjust the angle and direction of the speakers as desired and tighten the thumb screws to secure the position.
9. Turn on your audio source and test the sound quality and volume of the speakers.

Troubleshooting Tips

• If there is no sound, check the speaker wire connections at both the speaker and audio source. Ensure proper polarity and secure connections.
• If the sound is distorted, reduce the volume or bass settings on your audio source.
• If the speakers are not producing enough bass, try adjusting their position or angle to better direct the sound towards the listening area.
• If the speakers are producing a humming or buzzing noise, check for any nearby sources of electromagnetic interference (e.g., power lines, transformers, or electronic devices) and move the speakers or interference source if necessary.

Frequently Asked Questions

Can these speakers be mounted horizontally or vertically?

Yes, the LU53PB speakers can be mounted in either orientation. The swiveling logo badge can be adjusted to maintain a consistent appearance regardless of the mounting orientation.

Are these speakers weather resistant?

Yes, the LU53PB speakers have a weather-resistant design, featuring a UV treated ABS enclosure and a UV resistant resin coating. They are suitable for use in outdoor areas, but should be protected from direct exposure to rain and sunlight.

What is the recommended power source for these speakers?

The LU53PB speakers have a power handling of 60 watts RMS and 125 watts peak power. They should be connected to an amplifier or receiver with a power output within this range.

Do these speakers have Bluetooth connectivity?

No, the LU53PB speakers do not have built-in Bluetooth connectivity. However, you can connect them to a Bluetooth amplifier or receiver, such as the Dual Electronics DBTMA100, for wireless audio streaming.

What is the warranty on these speakers?

The LU53PB speakers come with a 1-year warranty, covering parts and labor, as well as customer service support.

Q: What is the size and type of the woofer?
A: The woofer size and type is 5 1/4" (133mm) Polypropylene with Polyelite PVA Surround.

Q: Are these speakers weather-resistant?
A: Yes, these speakers are weather-resistant and specially designed to withstand rain and heat.

Q: Can these speakers be mounted horizontally or vertically?
A: Yes, these speakers can be mounted horizontally or vertically to better fit any space.

Q: What is the RMS power of these speakers?
A: The RMS power of these speakers is 60 watts.

Q: Do these speakers come with mounting brackets?
A: Yes, these speakers come with mounting brackets and thumb screws for easy installation.

Q: Are these speakers Bluetooth-enabled?
A: No, these speakers are not Bluetooth-enabled.

Q: What is included in the package?
A: The package includes 2 speakers, 2 mounting brackets, 4 thumb screws, and a manual.

Q: Can you replace the speaker grills?
A: Yes, the speaker grills can be replaced by popping them out and sanding and repainting.

Q: Can these speakers be mounted to the ceiling?
A: Yes, these speakers can be mounted to the ceiling facing down.

Q: What is the warranty on these speakers?
A: These speakers come with a 1-year warranty for parts and labor.
