Definitive Technology AW 5500 All Weather Speaker with Bracket User Manual

Package Contents

• 1 x Definitive Technology AW 5500 All Weather Speaker (Black)
• 1 x Galvanized steel mounting bracket
• User Manual

Speaker Placement

Choose a suitable location for your speaker, considering factors such as distance from your listening area, accessibility for wiring, and exposure to weather conditions. The speaker is designed to withstand harsh weather conditions, but it is recommended to place it under an eave or other sheltered location to prolong its lifespan.

Mounting the Speaker

1. Attach the included galvanized steel mounting bracket to the back of the speaker using the provided screws. Ensure that the bracket is securely fastened.
2. Choose a mounting location that allows for a 360-degree rotation for horizontal or vertical orientation. Mark the location of the mounting holes on the wall or other mounting surface.
3. Drill pilot holes for the mounting screws and insert appropriate anchors if necessary.
4. Attach the bracket to the mounting surface using suitable screws, ensuring it is securely fastened.
5. Rotate the speaker to the desired orientation and tighten the bracket's adjustment screws to secure the speaker in place.

Connecting the Speaker

Use high-quality speaker wire (14-gauge recommended) to connect the speaker to your amplifier or receiver. Ensure that the wire is long enough to reach the desired location without stretching or straining the connections.

1. Strip the ends of the speaker wire to expose the bare conductor.
2. Connect the positive (+) terminal on the speaker to the positive (+) terminal on your amplifier or receiver. Similarly, connect the negative (-) terminal on the speaker to the negative (-) terminal on your amplifier or receiver. Ensure that the connections are secure and that there is no risk of a short circuit.
3. Repeat the process for any additional speakers you wish to connect.
4. Power on your amplifier or receiver and adjust the volume and settings to your preference.

Troubleshooting Tips

• If there is no sound coming from the speaker, check the connections between the speaker and the amplifier or receiver. Ensure that the wires are securely connected and that the terminals are not short-circuited.
• If the sound is distorted, reduce the volume on your amplifier or receiver. If the distortion persists, check the speaker wire connections and ensure that they are secure and not short-circuited.
• If the speaker is not producing enough bass, ensure that it is mounted correctly and that the bass radiator is facing the appropriate direction. Experiment with different mounting locations to optimize bass performance.

Frequently Asked Questions

Q: How many speakers are included in the package?

A: The package includes one Definitive Technology AW 5500 All Weather Speaker.

Q: Can these speakers be used indoors?

A: Yes, the AW 5500 speakers can be used both indoors and outdoors. They are designed to withstand harsh weather conditions, making them suitable for outdoor use, but they can also be used indoors for high-quality sound reproduction.

Q: What is the recommended amplifier power for these speakers?

A: The Definitive Technology AW 5500 speakers can handle up to 175 watts of power. Ensure that your amplifier or receiver is compatible with the speaker's power requirements before connecting them.

Q: Can I use these speakers with a subwoofer?

A: Yes, you can use the AW 5500 speakers with a subwoofer to enhance the low-frequency performance of your audio system. Connect the subwoofer to your amplifier or receiver according to the manufacturer's instructions.

Q: Are these speakers sold in pairs or individually?

A: The Definitive Technology AW 5500 All Weather Speakers are sold individually. If you need a pair of speakers, you will need to purchase two units.

Q: What are the features of the Definitive Technology AW 5500 All Weather Speaker with Bracket?

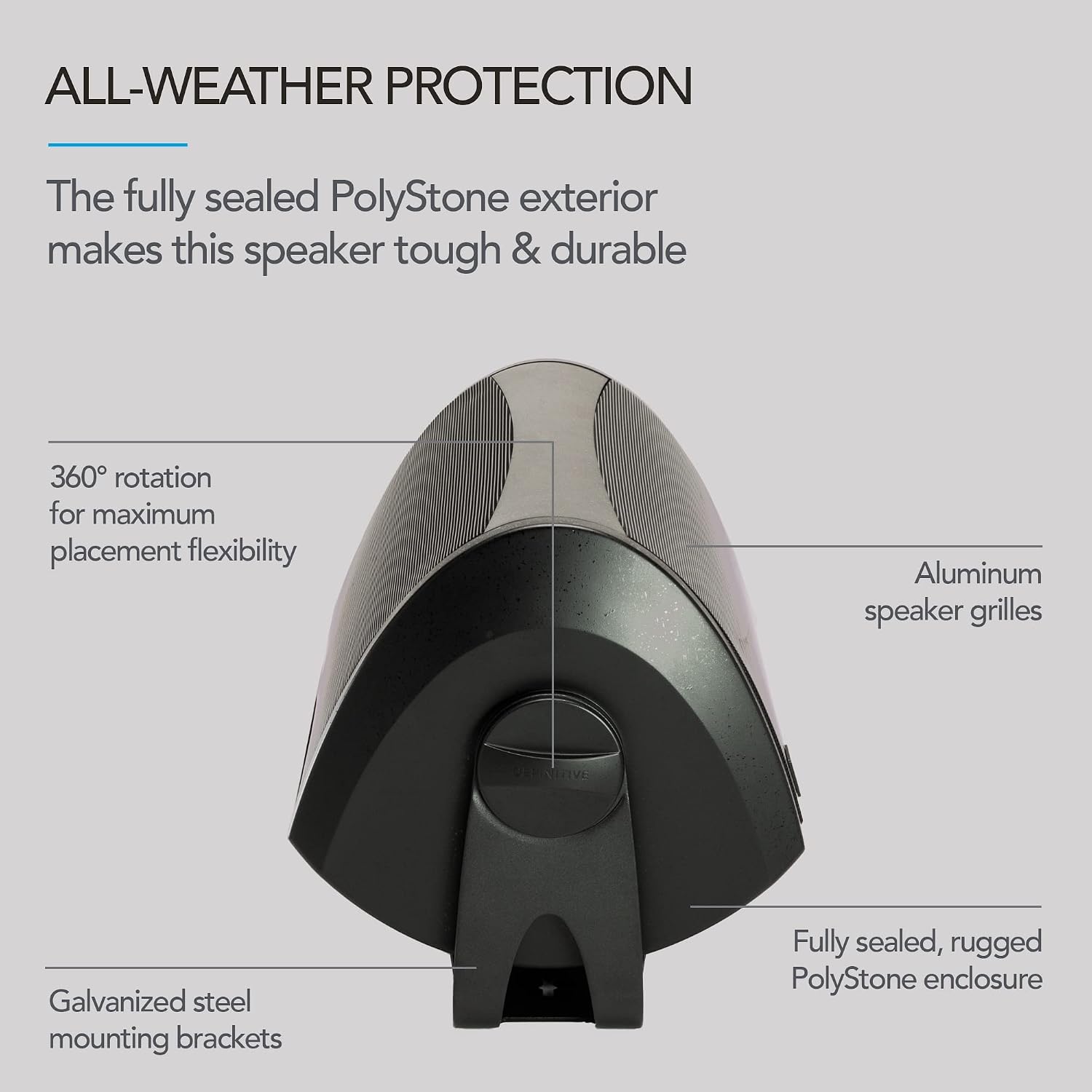

A: The Definitive Technology AW 5500 All Weather Speaker with Bracket is equipped with high-quality components used in Definitive's indoor speakers, providing fuller sound and deeper bass. It has a 5.25" Mid/Woofer, a 1" Tweeter and a 5" x 8" oval pressure-driven low bass radiator for more accurate sound reproduction. The speaker is designed to look great and sound even better with DT’s Balanced Double Surround System (BDSS) drivers. It can rock your patio, backyard, or pool with clear, high-definition sound across your open spaces due to its powerful bass, low distortion and broad dispersion. The fully sealed PolyStone exterior makes this speaker tough and durable so it can withstand the harshest weather conditions. It is moisture resistant and wear-resistant, making it an excellent choice for outdoor use. The Galvanized steel mounting brackets (included) give you 360-degree rotational flexibility for horizontal or vertical mounting, providing endless mounting and placement options.

Q: What are the specifications of the Definitive Technology AW 5500 All Weather Speaker with Bracket?
A: The Definitive Technology AW 5500 All Weather Speaker with Bracket has a model number of AW5500BK and belongs to the category of Electronics > Home Audio > Speakers > Outdoor Speakers. It measures 12.7 x 7.8 x 8.2 inches and weighs 8.33 pounds. Its ASIN is B00170IO7S, and its item model number is AW5500BK. The speaker type is Outdoor Architectural Speakers, and it is recommended for volume use. It has a subwoofer diameter of 5.25 inches and a total frequency response of 45 Hz → 30,000 Hz nominal impedance of 8 ohms sensitivity (1 watt @ 1 meter) 91 dB.

Q: Is the Definitive Technology AW 5500 All Weather Speaker with Bracket water-resistant?
A: Yes, the Definitive Technology AW 5500 All Weather Speaker with Bracket is water-resistant designed for outdoor environments. It can withstand rain, snow, and temperature extremes that drive us indoors. With Definitive Technology's proprietary weather seal defending the subwoofers, tweeters, and passive radiators, it boasts a class-leading 5-Year Warranty.

Q: Can the Definitive Technology AW 5500 All Weather Speaker with Bracket be painted?
A: Yes, the Definitive Technology AW 5500 All Weather Speaker with Bracket can be painted, but you have to use a kind of paint that fixed in plastic and metal. The layer of paint has to be very slim; otherwise, it will close the micro-holes of the speaker's cover.

Q: What is included in the package of Definitive Technology AW 5500 All Weather Speaker with Bracket?
A: The package of Definitive Technology AW 5500 All Weather Speaker with Bracket includes one speaker and Galvanized steel mounting brackets for 360-degree rotational flexibility for horizontal or vertical mounting.
