Definitive Technology AW 6500 All Weather Speaker with Bracket User Manual

Package Contents

• 1 x Definitive Technology AW 6500 All Weather Speaker
• 1 x Galvanized Steel Mounting Bracket
• 1 x User Manual

Preparation for Installation

1. Choose a suitable location for your AW 6500 speaker, considering factors such as exposure to direct rain, snow, and sunlight. The speaker should be mounted under eaves or other protective areas to avoid direct contact with water.
2. Ensure that the mounting surface is strong enough to support the weight of the speaker and the bracket.
3. Prepare the necessary tools and equipment, such as a drill, screws, and a level.

Mounting the Speaker

1. Attach the galvanized steel mounting bracket to the back of the AW 6500 speaker using the provided screws. Ensure that the bracket is securely fastened to the speaker.
2. Hold the speaker with the attached bracket against the mounting surface and mark the locations of the mounting holes on the surface.
3. Drill pilot holes at the marked locations, taking care not to damage any electrical wiring or other utilities behind the surface.
4. Secure the speaker and bracket to the mounting surface using appropriate screws and anchors. Ensure that the speaker is level and firmly attached to the surface.
5. Connect the speaker to your audio source using high-quality speaker wire. For runs over 20 feet, use a larger gauge speaker wire (10 gauge recommended).

Speaker Placement and Adjustment

1. The AW 6500 speaker can be mounted horizontally or vertically, with the mounting bracket allowing for 360-degree rotation. Adjust the speaker's angle to direct the sound towards your desired listening area.
2. To enhance bass performance, mount the speaker where the bass can reflect off a solid surface, such as under eaves or on a raised platform.
3. For optimal sound quality, position the speakers so that the listening area is within 45 degrees of the speaker's axis.

Troubleshooting Tips

• If you experience rattling or vibration from the mounting bracket at high volumes, place a foam pad or rubber shelf liner between the bracket and the mounting surface to reduce the noise.
• If the speaker's sound quality is not as expected, ensure that the speaker wire connections are secure and that high-quality speaker wire is being used.
• Allow for a break-in period of approximately 30 hours for the speaker to reach its optimal performance.

Frequently Asked Questions

Do the AW 6500 speakers require a separate subwoofer for optimal bass performance?

No, the AW 6500 speakers are designed with a passive radiator that provides excellent bass performance without the need for a separate subwoofer.

Can I paint the AW 6500 speaker to match my outdoor decor?

Yes, the AW 6500 speaker is available in a paintable white finish, allowing you to customize the speaker's appearance to match your outdoor decor.

What is the recommended power output for driving the AW 6500 speakers?

For optimal performance, use an amplifier or receiver with a power output of at least 100 watts RMS per channel.

Are the AW 6500 speakers waterproof?

The AW 6500 speakers are weather-resistant but not fully waterproof. They should be mounted in a location that is protected from direct exposure to rain and snow.

Q: What are the features of the Definitive Technology AW 6500 All Weather Speaker with Bracket?
A: The Definitive Technology AW 6500 All Weather Speaker with Bracket is a fully sealed outdoor speaker that provides indoor speaker sound for the great outdoors. It has active drivers, in conjunction with the low bass radiator, that double the bass output but still maintain a weather-tight seal. It also has racetrack-shaped planar pressure-coupled low bass radiators that deliver rich, warm audio. Its rugged PolyStone enclosures ensure a great performance even in the elements. The speaker comes with integrated galvanized steel mounting brackets that give 360-degree placement flexibility.

Q: What are the specifications of this product?
A: The Definitive Technology AW 6500 All Weather Speaker with Bracket has a model number of AW6500BK and weighs 10 pounds. Its product dimensions are 14.5 x 9.3 x 8.9 inches, and it is categorized under Electronics > Home Audio > Speakers > Outdoor Speakers. The speaker is wired and has a speaker type of outdoor. Its recommended uses for product include music, pool, and indoor.

Q: Does the package include mounting brackets?
A: Yes, the package includes galvanized steel mounting brackets that give you 360-degree rotational flexibility for horizontal or vertical mounting.

Q: How does the sound exit from the speakers?

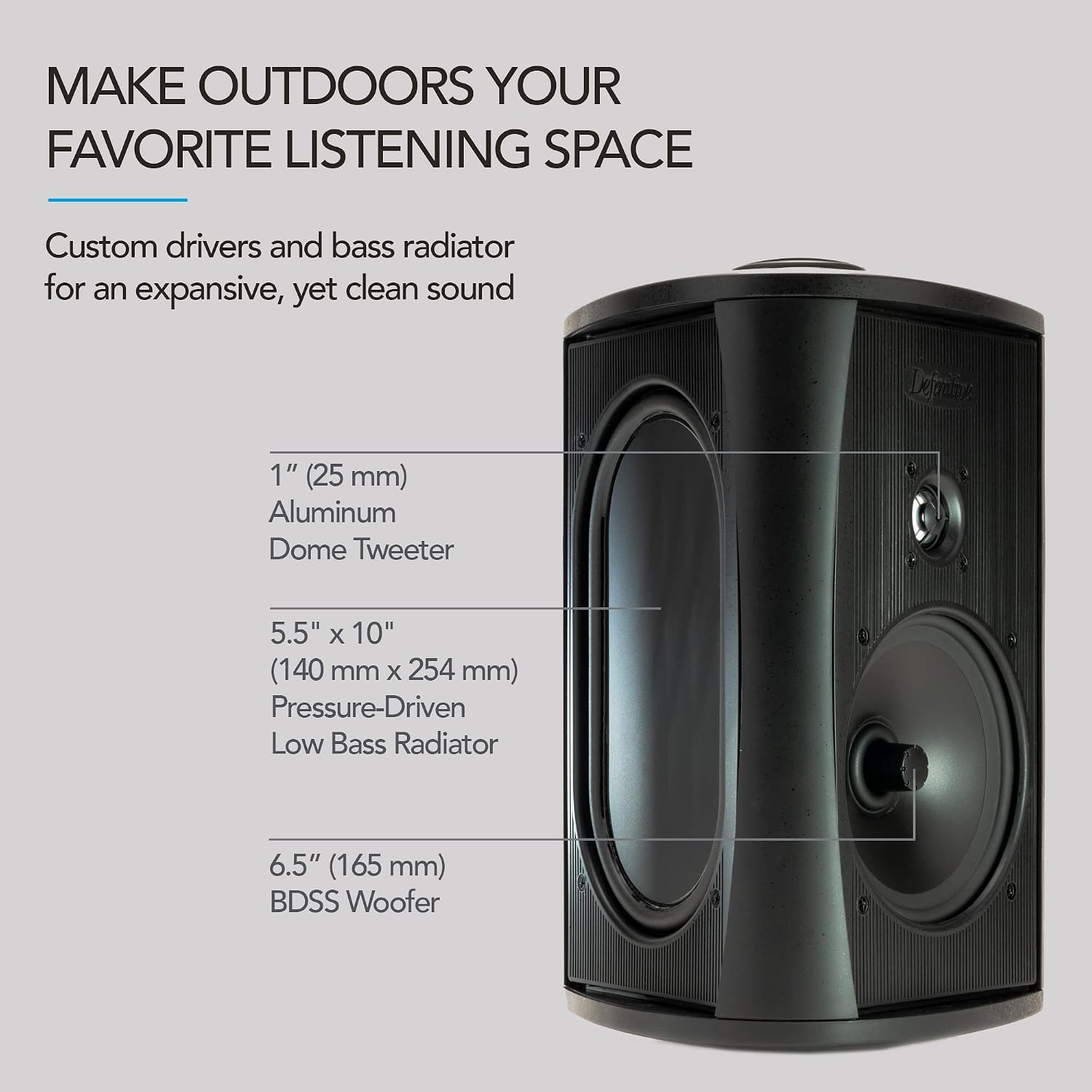

A: The sound exits from two different angles. The tweeter and mid-bass driver is located on one side, and the Bass Radiator is located on the other side. You will want to aim the tweeter and mid-bass driver towards the listening area if possible.

Q: How many ohms is this rated?
A: The nominal impedance of the AW6500's which I purchased is 4 to 8 ohms.

Q: Is this speaker available in a 70v version?
A: It is not sure whether the AW6500 is available in a 70v version.

Q: Is the bass level adjustable on speakers?
A: The bass level is not adjustable from the speaker. It can only be adjusted through the device you have them playing through.

Q: Can I connect two speakers out of one output by connecting them in series?
A: You can connect two speakers out of one output by connecting them in series, but there are some negatives. First, you will not get stereo playback, and second, some amplifiers cannot deal with 2 speakers in series because the resulting drop in impedance might be enough to damage the amplifier.

Q: How does the Definitive AW6500 compare to Klipsh AW650 and Polk Atrium 6?
A: According to reviews, the Definitive AW6500 is the best outdoor speaker that you will find. It has a well-balanced, very good bass, beautiful mids and highs, and a lot of volume without distortion. The Klipsh AW650 has a lot of volume, very good bass, mids, and highs but is less balanced than the Definitive AW6500. The Polk Audio Atrium 6 has good sound quality but does not reach the levels of the Definitive or Klipsh speakers.
