Polk Audio OWM3 Wall and Bookshelf Speakers User Manual

Table of Contents

1. Introduction
2. Package Contents
3. Speaker Placement
4. Mounting Options
5. Connecting the Speakers
6. Troubleshooting Tips
7. Frequently Asked Questions (FAQ)

1. Introduction

Congratulations on your purchase of Polk Audio OWM3 Wall and Bookshelf Speakers. These versatile and high-performance speakers are designed to deliver detailed audio and a deeper bass with minimal distortions, making your movie and music nights exquisite. With their unique curved design and multiple placement options, these speakers can be used in various applications, including home theater systems, desktop stereo setups, and multi-zone home sound systems.

2. Package Contents

• Polk Audio OWM3 Speakers (Pair)
• Paintable Grilles
• User Manual

3. Speaker Placement

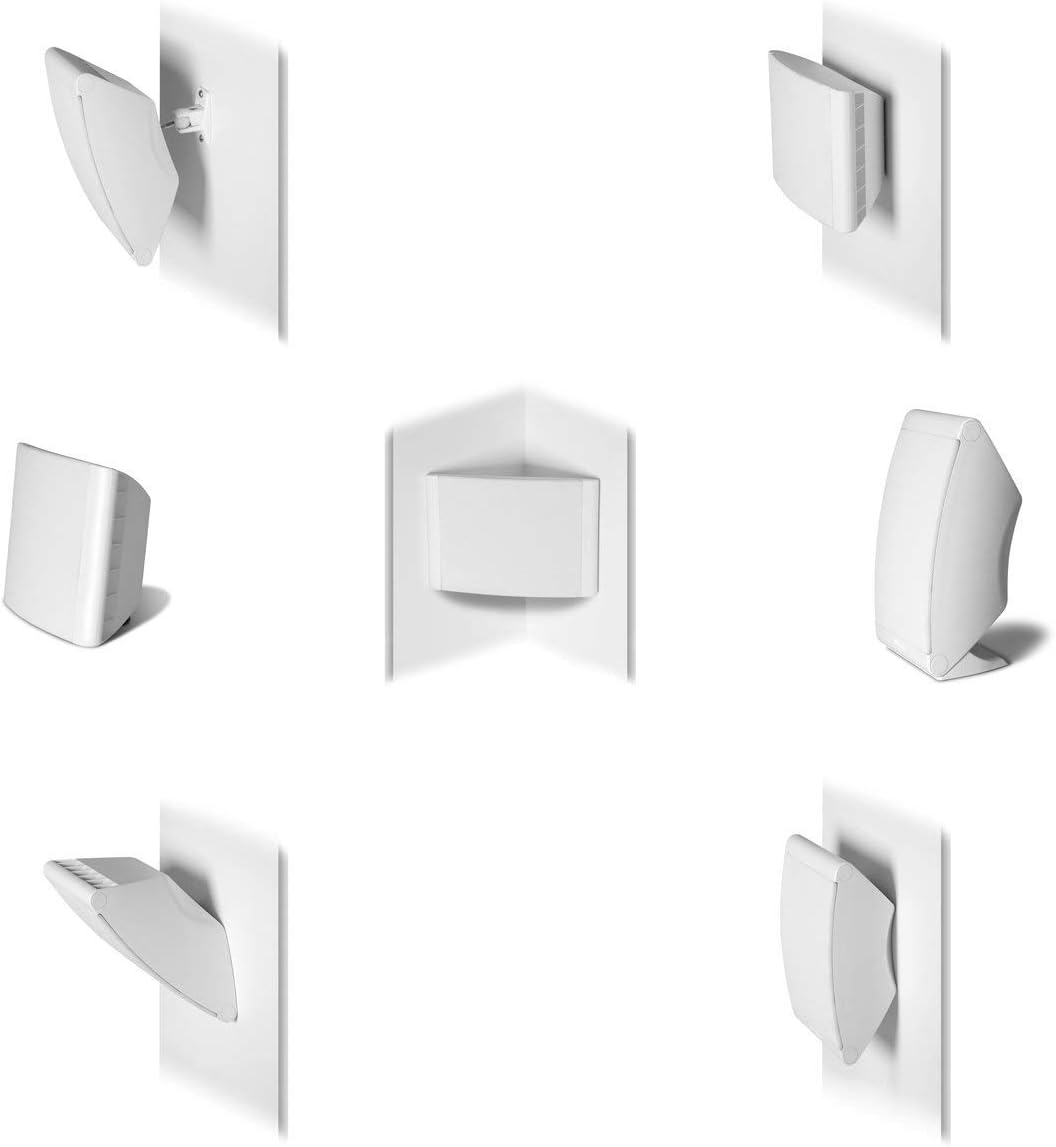

The OWM3 speakers can be placed in various orientations, including horizontal, vertical, corner, angular, shelf, top, or wall-mounted. Choose the placement that best suits your room and application. For optimal sound quality, ensure that the speakers are positioned at ear level and aimed towards the listening area.

4. Mounting Options

The OWM3 speakers can be mounted on walls or placed on shelves. To mount the speakers on a wall, you will need to purchase separate wall-mounting brackets. Follow the instructions provided with the brackets to securely mount the speakers. Ensure that the mounting surface is strong enough to support the weight of the speakers.

5. Connecting the Speakers

1. Turn off your amplifier or receiver before connecting the speakers.
2. Locate the speaker terminals on the back of the OWM3 speakers. There are two terminals: one for the positive (+) connection and one for the negative (-) connection.
3. Strip the ends of your speaker wire, exposing approximately 1/2 inch of bare wire.
4. Insert the positive (+) wire into the positive (+) terminal on the speaker, and insert the negative (-) wire into the negative (-) terminal. Ensure that the wires are securely connected and that there is no exposed wire outside the terminals.
5. Connect the other ends of the speaker wires to the corresponding terminals on your amplifier or receiver, ensuring that the positive (+) and negative (-) connections match.
6. Turn on your amplifier or receiver and test the speakers for proper operation.

6. Troubleshooting Tips

• If there is no sound from the speakers, ensure that the amplifier or receiver is turned on and that the speaker wires are securely connected to both the speakers and the amplifier or receiver.
• If the sound is distorted or muffled, check the speaker wire connections and make sure there is no exposed wire outside the terminals.
• If the bass response is weak, adjust the crossover settings on your amplifier or receiver to better match the OWM3 speakers.
• If the speakers are not producing enough volume, ensure that the volume level on your amplifier or receiver is set appropriately.

7. Frequently Asked Questions (FAQ)

1. Can I use the OWM3 speakers for Dolby Atmos?
   Yes, the OWM3 speakers can be used as Atmos speakers. They can be mounted on the ceiling or placed on top of your existing speakers to provide an immersive Atmos experience.
2. What is the recommended crossover setting for these speakers?
   The recommended crossover setting for the OWM3 speakers is between 80Hz and 110Hz. Adjust the setting based on your personal preference and room acoustics.
3. Do the speakers come with wall-mounting brackets?
   No, wall-mounting brackets are not included with the speakers. You will need to purchase them separately if you wish to mount the speakers on a wall.
4. Can these speakers be used outdoors?
   The OWM3 speakers are not designed for outdoor use. They are intended for indoor applications only.
5. What is the impedance of these speakers?
   The OWM3 speakers have an impedance of 8 Ohms.

FAQ [continued]

Product: Polk Audio OWM3 Wall and Bookshelf Speakers

Manufacturer Details:
- Dynamic Balance composite cone drivers
- Capacitive Coupling Technology (CCT) to boost and smooth bass response

Product Description:
The Polk Audio OWM3 Wall and Bookshelf Speakers are versatile and high-performance speakers that can be used for multi-zone home sound systems. They are equipped with a 4.5" Mid/Woofer, 1" Tweeter, exclusive Dynamic Balance & Capacitive Coupling Technology (CCT) that produces detailed audio, making your movie & music nights exquisite. The compact design of the OWM3 allows them to go practically anywhere a speaker can go and do practically anything a speaker can do.

Features:
- Durable and high-performance speakers
- Equipped with Dynamic Balance & Capacitive Coupling Technology (CCT)
- Deep bass with minimal distortions even at extreme volume levels
- 7 unique placement options
- Versatile in application
- Unwavering commitment, reliability, and craftsmanship from Polk Audio

Specifications:
- Brand: Polk Audio
- Model Number: AM3348-A
- Product Dimensions: 10 x 7 x 4 inches
- Item Weight: 4 pounds
- ASIN: B0018QNYXA
- Speaker Type: Bookshelf, Surround Sound, Woofer
- Connectivity Technology: Wired
- Speaker Maximum Output Power: 100 Watts
- Model Name: OWM 3
- Impedance: 8 Ohm

FAQ:
Q: What is the overall size of the speakers?
A: The speakers are 10 inches tall, 7 inches wide, and 4 inches front to back.

Q: Can they be used as L/R front speaker in 7.1 with TL2 being satellite?
A: Ideally all front speakers should be the same for optimal performance. Using the OWM3 as left/right main would work, and probably sound OK. Lower frequencies (>120hz) would be handled by the sub/LFE channel with a powered sub.

Q: How do these speakers do for a stereo? Is there enough bass or does it require a subwoofer?
A: These are very nice speakers, but because of the size/design, they are more of a satellite speaker with decent midbass and highs. For a dance studio, you will definitely need a powered sub with these speakers.

Q: Does it require an amplifier or does it have an inbuilt amp?
A: It requires an amplifier.

Q: What is the total frequency response?
A: The total frequency response is 80 hz - 25 kHz.

Q: Do these come with the articulated pin shown on the second picture or do I need to buy those separately?
A: The articulated wall mounts do not come with the speakers, but many applications do not require special mounts as the specially designed cases will mount at many different angles.

Customer Reviews:
- Customers have praised the speakers' mountability, ease of hookup, and great sound quality.
- Some customers have used them as ceiling Atmos speakers and were impressed with their performance.
- They are highly recommended for small rooms and where mounting options are limited.

User Manual (PDF)

Specifications

Brand	Polk Audio
Manufacturer	Polk Audio
Model Number	AM3348-A
Product Dimensions	1 x 1 x 1 inches
Item Weight	4 pounds
ASIN	B0018QNYXA
Item model number	AM3348-A
Customer Reviews	4.7 out of 5 stars 1,379 ratings 4.7 out of 5 stars
Best Sellers Rank	#13,436 in Electronics
Is Discontinued By Manufacturer	No
Date First Available	May 8, 2008
Speaker Type	Bookshelf, Surround Sound, Woofer
Connectivity Technology	Wired
Speaker Maximum Output Power	100 Watts
Model Name	OWM 3
Impedance	8 Ohm
Weight	4 pounds
Dimensions	1 x 1 x 1 inches
First Available	May 8, 2008
