Emerson 1F97-1277 Touchscreen 7-Day Programmable Thermostat User Manual

Table of Contents

1. Product Overview
2. Installation
3. Initial Setup
4. Programming the Thermostat
5. Operating the Thermostat
6. Troubleshooting Tips
7. Frequently Asked Questions

1. Product Overview

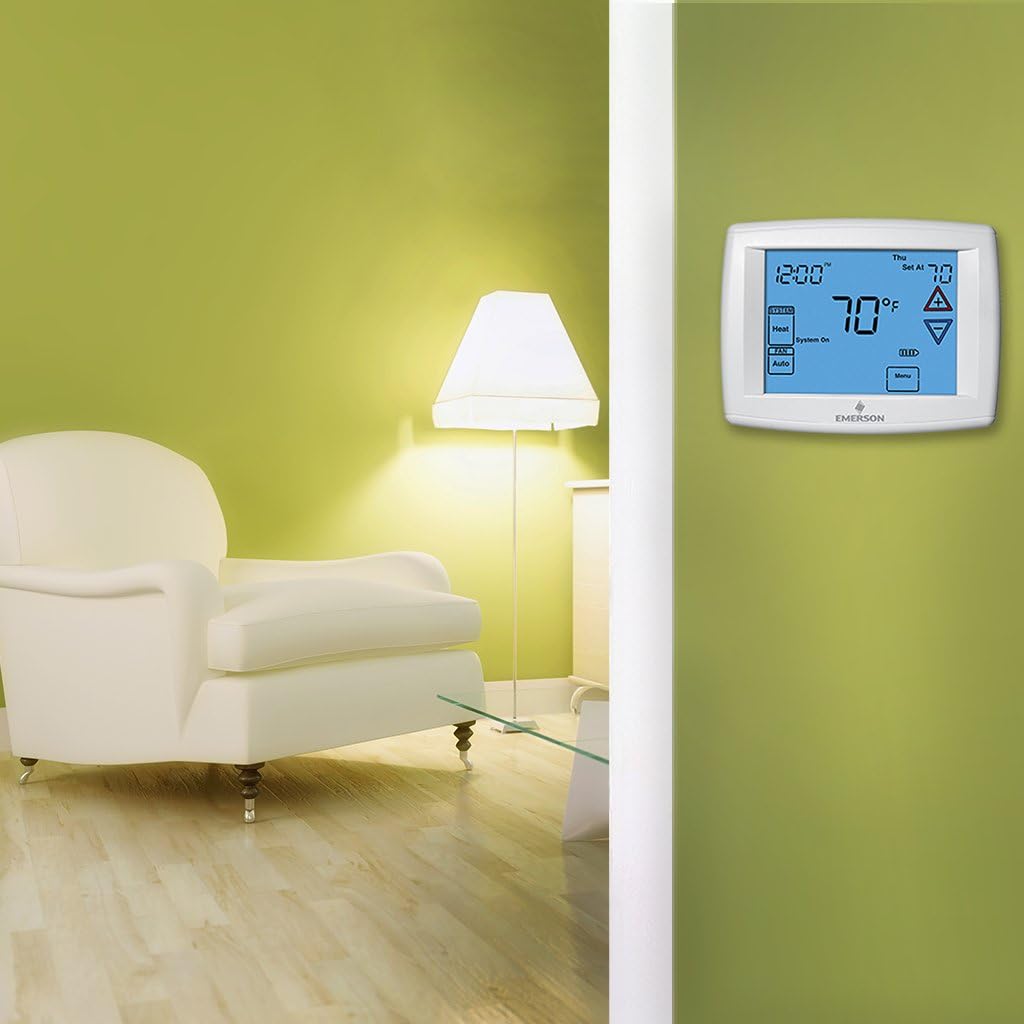

The Emerson 1F97-1277 Touchscreen 7-Day Programmable Thermostat is designed for single-stage and heat pump systems without auxiliary heat. It features a large, easy-to-read 12-inch touchscreen display, 7-day programmable settings, and compatibility with various heating and cooling systems.

2. Installation

Warning: Before installation, turn off power to your heating and cooling system at the main fuse or circuit breaker.

1. Remove the existing thermostat from the wall, but keep the wires connected.
2. Label each wire with the provided labels based on the terminal it is connected to.
3. Disconnect the wires from the old thermostat and remove the wall plate.
4. Mount the new thermostat wall plate using the provided screws and anchors. Make sure it is level.
5. Connect the labeled wires to the corresponding terminals on the new thermostat.
6. Attach the thermostat to the wall plate by aligning the pins and snapping it into place.
7. Turn the power back on to your heating and cooling system.

3. Initial Setup

1. Insert 2 AA batteries into the battery compartment on the back of the thermostat.
2. Upon powering up, the thermostat will display the setup menu.
3. Select your desired language and press "Next".
4. Set the current date and time, then press "Next".
5. Choose the type of system you have (heat pump or single-stage) and press "Next".
6. Select whether you want the thermostat to control heating, cooling, or both, and press "Next".
7. Review the settings summary and press "Done" to save and exit the setup menu.

4. Programming the Thermostat

1. Press the "Menu" button on the thermostat.
2. Select "Program" to enter the programming menu.
3. Choose the day of the week you want to program and press "Next".
4. Set the desired start time and temperature for each period (Wake, Leave, Return, Sleep) by pressing the up and down arrows.
5. Press "Next" to move to the next period and repeat the process for all periods.
6. Once all periods are set, press "Done" to save and exit the programming menu.
7. Repeat the process for each day of the week.

5. Operating the Thermostat

To manually adjust the temperature, press the up or down arrows on the main screen. The thermostat will return to the programmed temperature after 4 hours, or you can press "Hold" to maintain the new temperature indefinitely. To return to the programmed temperature, press "Run Program".

6. Troubleshooting Tips

• If the thermostat is not functioning properly, check the wiring connections and ensure the power is on to your heating and cooling system.
• If the temperature reading seems inaccurate, you can calibrate the thermostat through the settings menu.
• If the thermostat is randomly changing temperatures, disable the "Automatic Schedule" and "Energy Management Recovery" features in the settings menu.

7. Frequently Asked Questions

Can I use this thermostat with a multi-stage heating and cooling system?

No, the Emerson 1F97-1277 thermostat is designed for single-stage and heat pump systems without auxiliary heat.

Do I need a professional to install this thermostat?

While the installation process is relatively simple, if you are not comfortable with wiring or have a complex system, it is recommended to have a professional install the thermostat.

How do I enable the backlight feature?

You can enable the backlight feature in the settings menu. Choose between having the backlight always on or only when the screen is touched.

Is there a vacation mode for this thermostat?

There is no specific vacation mode, but you can manually adjust the temperature and press "Hold" to maintain that temperature until you return home and press "Run Program".

Q: What type of thermostat is the Emerson 1F97-1277?
A: The Emerson 1F97-1277 is a programmable touchscreen thermostat that is compatible with single-stage and heat pump systems.

Q: Can it be programmed for different schedules for each day of the week?
A: Yes, this thermostat allows you to set a different schedule for each day of the week with its 7-day programmable feature.

Q: Does it have reliable temperature control?
A: Yes, this thermostat has precision temperature accuracy of 1 degree, allowing you to keep your home temperatures within one degree of where you set it.

Q: What type of systems is it compatible with?
A: This thermostat is compatible with single-stage heating, cooling, and heat-pump systems. It can also work with millivolt applications and 3-wire zone systems.

Q: Is it easy to install and set up?
A: Yes, this thermostat comes with step-by-step instructions for quick and easy setup.

Q: Does it have a keypad lockout feature?
A: Yes, this thermostat has a keypad lockout feature for added security.

Q: Can it save on energy costs?
A: Yes, when you use the programmed heating and cooling schedules, you can save on energy costs with this thermostat. It also features patented Cool Saving, which saves energy during peak A/C demand periods.

Q: Is it compatible with multi-stage gas, oil, electric systems or line voltage (110V/220 V baseboard heating) systems?
A: No, this thermostat will not work with multi-stage gas, oil, electric systems or line voltage (110V/220 V baseboard heating) systems. It is designed to work with single-stage and heat-pump gas, electric, oil systems.

Q: Does it come with customer support?
A: Yes, Emerson provides technical support seven days a week for this thermostat. It also comes with a 5-year warranty.

Q: Is it wifi compatible?
A: No, this model is not wifi compatible.

Q: How many programs/settings per day can be entered?
A: There are 4 settings per day for each of the heating and cooling cycles. You can program all 7 days separately or program one setting for the weekdays and separately program Saturday and Sunday. You also have a copy feature that permits one day's setting to be copied to another day.

Q: What is the minimum temperature setting for this thermostat?
A: The minimum temperature setting for this thermostat is 45°F.

Q: Does it allow programmable separate fan control?
A: Yes, this thermostat allows programmable separate fan control.
