Klipsch CDT-3650-C II In-Ceiling Speaker User Manual

Table of Contents

1. Package Contents
2. Installation
3. Adjustments and Tweeter Attenuation
4. Pairing with Installation Kit and Speaker Enclosure
5. Troubleshooting Tips
6. Frequently Asked Questions

1. Package Contents

• Klipsch CDT-3650-C II In-Ceiling Speaker

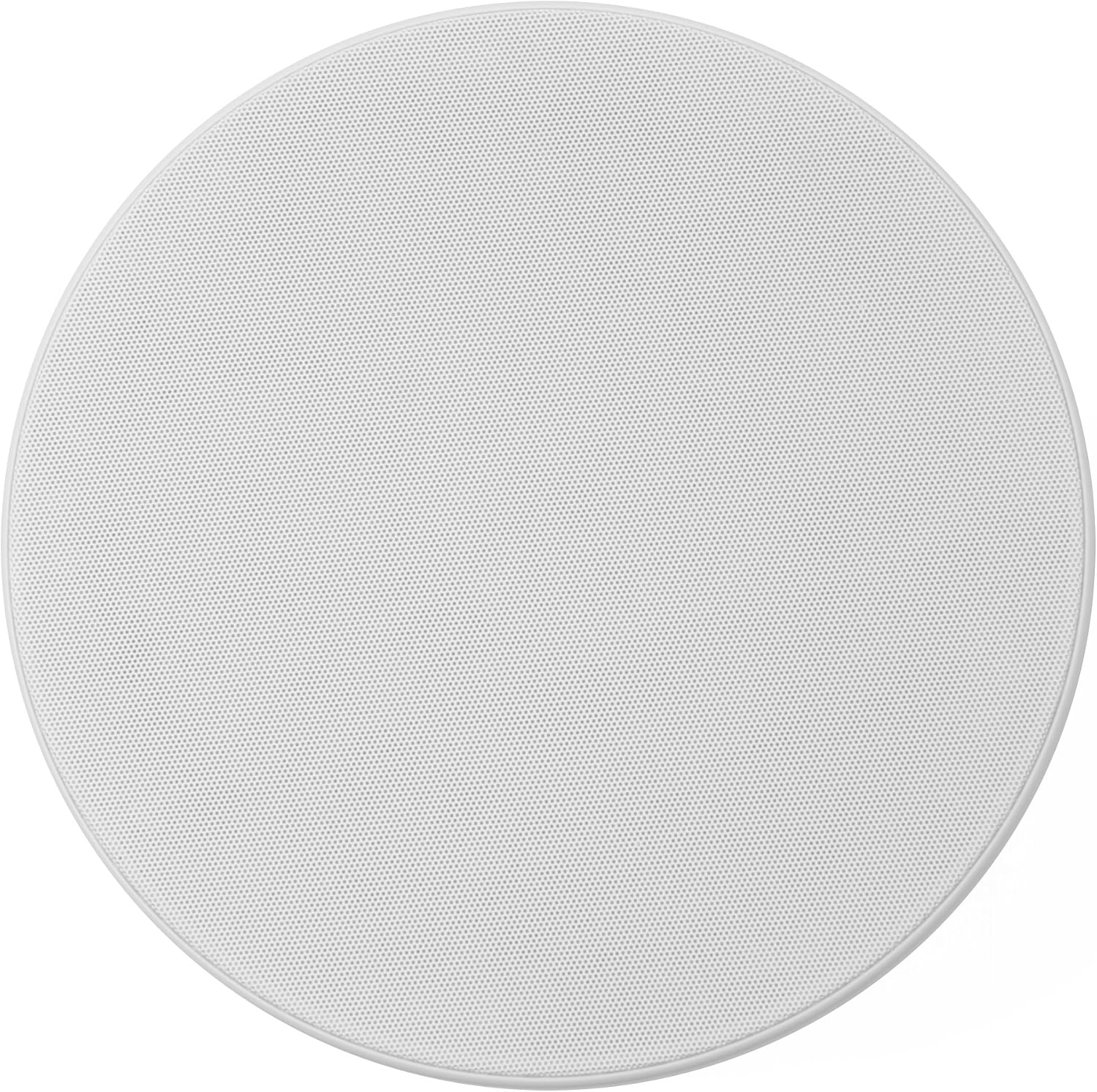

• Low-profile SlimTrim magnetic grille
• User Manual

2. Installation

1. Choose the desired location for the speaker, ensuring it is at least 1 inch away from any ceiling joist.
2. Use the included template to mark the cutting area for the speaker hole.
3. Using a drywall saw, carefully cut out the hole while holding a shop vacuum hose to collect dust.
4. Feed the speaker wires through the hole and connect them to the speaker's red and black connectors. Ensure a secure connection by pressing down on the levers while inserting the wires.
5. Insert the speaker into the hole, making sure the insulation is not obstructing the speaker.
6. Tighten the screws on the speaker using a cordless drill until snug, then finish tightening with a screwdriver.
7. Aim the tweeter and speaker for optimal listening, which can be adjusted later if needed.
8. If desired, spray paint the magnetic grille to match your ceiling and attach it to the speaker.

3. Adjustments and Tweeter Attenuation

To adjust the sound of the speaker, you can use the pivot feature to direct the tweeter and woofer towards the desired listening area. Additionally, the treble attenuation switch can be accessed on the crossover network to adjust the high-frequency response.

4. Pairing with Installation Kit and Speaker Enclosure

The Klipsch CDT-3650-C II In-Ceiling Speaker can be paired with the Klipsch IK-650-C installation kit and the ME-650-C fire-rated speaker enclosure (both sold separately) for optimal performance and to meet local building codes.

5. Troubleshooting Tips

• If the speaker is cutting in and out, check the connections between the speaker wires and the speaker's connectors.
• If the sound is distorted or unclear, adjust the tweeter and woofer direction or use the treble attenuation switch to modify the high-frequency response.
• If the speaker is not producing sound, ensure it is properly connected to your amplifier or receiver.

6. Frequently Asked Questions

Q: Can these speakers be used for outdoor installations?

A: The CDT-3650-C II is designed for indoor use only and is not recommended for outdoor installations.

Q: Are these speakers compatible with Dolby Atmos?

A: Yes, these speakers can be used as part of a Dolby Atmos setup, providing an immersive audio experience.

Q: Can I use these speakers without a subwoofer?

A: While the CDT-3650-C II speakers provide good bass response, it is recommended to pair them with a Klipsch subwoofer for optimal low-frequency performance.

Q: What is the difference between the CDT-3650-C II and the CDT-5650-C II?

A: The CDT-5650-C II offers slightly better sound quality and performance, but both models provide excellent audio for their respective price points.

Q: What is the technology used in the Klipsch CDT-3650-C II In-Ceiling Speaker?
A: The Klipsch CDT-3650-C II In-Ceiling Speaker uses Controlled Dispersion Technology (CDT) to direct high and midbass frequencies to the main listening area. It also features a 100-degree symmetrical Tractrix Horn, which directs sound more accurately than a typical dome tweeter.

Q: What are the specifications of this product?
A: The Klipsch CDT-3650-C II In-Ceiling Speaker has a 1” Aluminum Tweeter, a 6.5"" Pivoting IMG Woofer, and horn-loaded technology. It also has treble attenuation switches.

Q: Is this speaker suitable for Dolby Atmos sound?
A: While it was not designed as a Dolby Atmos speaker, it would work well as a height speaker in a Dolby Atmos system when used with other Klipsch Reference Premier speakers.

Q: Is this product sold in pairs?
A: No, the Klipsch CDT-3650-C II In-Ceiling Speaker is sold individually.

Q: Can these speakers be installed in a wall with standard 2x4 studs?
A: No, these speakers are designed specifically for ceilings, which typically have deeper joists than the studs in a wall. Klipsch sells in-wall speakers that will fit standard 2x4 studs.

Q: Does this product come with a grille/plate? Can the speaker be adjusted angles?
A: Yes, the Klipsch CDT-3650-C II In-Ceiling Speaker comes with a magnetically attracted grill. During installation, you can turn to position the speaker to use the 15° tilt of the woofer, and the tweeter swivels independently from the woofer for directional positioning as well.

Q: Is the grill color white, or does it need to be painted?
A: The grill color of the Klipsch CDT-3650-C II In-Ceiling Speaker is already white, but it is also paintable if you want a different color.

Q: What is the weight and dimensions of this product?
A: The Klipsch CDT-3650-C II In-Ceiling Speaker weighs 5.39 pounds and has dimensions of 4.5 x 9.5 x 9.5 inches.

Q: Does this product require an enclosure around the back of the speaker?
A: No, the Klipsch CDT-3650-C II In-Ceiling Speaker is designed to not need an enclosure around the back of the speaker. In some cases, having an enclosure can deteriorate the sound quality.

Q: What should I do if I need help in choosing which speakers from Klipsch's lines should be paired for best matched sound?
A: You can reach out to Klipsch directly, who will be able to recommend which speakers from their lines should be paired for the best-matched sound.
