FARAD MARLIN 400L Roof Box User Manual

Product Overview

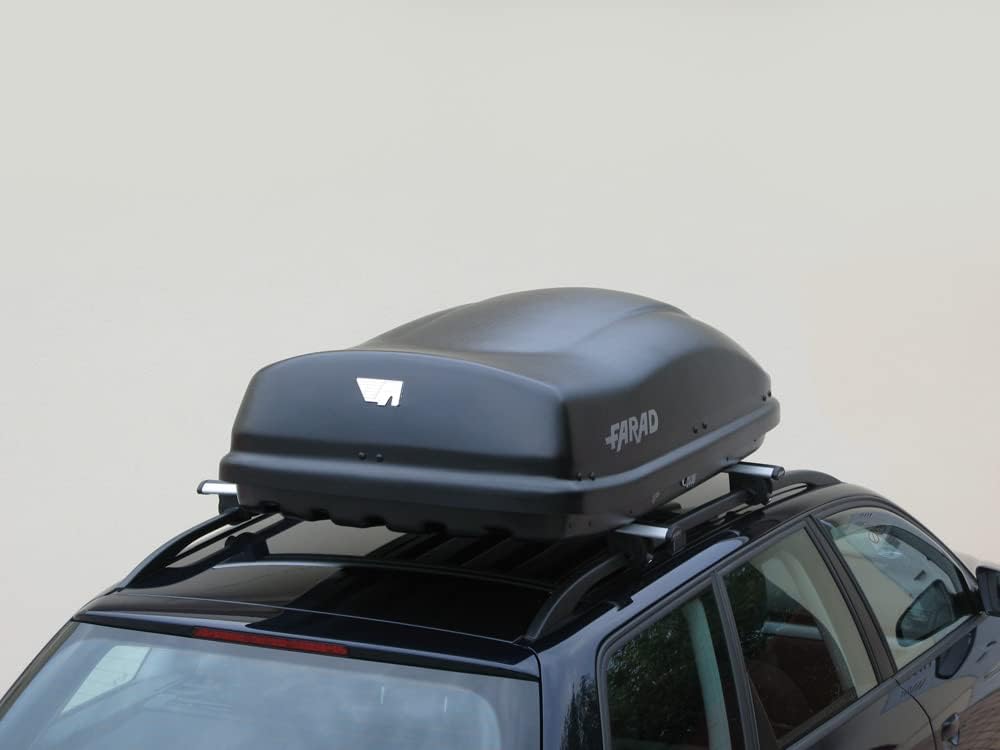

The FARAD MARLIN 400L is a high-quality roof box designed for extra storage on vehicles. It features a central locking system, dual-side opening, and is constructed from UV-resistant, shockproof material.

Specifications

• Volume: 400 Litres
• External Dimensions: 160 x 80 x 40 cm
• Internal Dimensions: 154 x 73 cm
• Max Load: 75 kg (autos), 90 kg (caravans)
• Color: Matte Black
• Weight: 13 Kilograms
• Fixation Type: Roof Mounting
• Compatibility: Crossbars up to 8 cm in width and 3.5 cm in height
• Bar Spacing: 18/77 cm (min/max)

Installation Instructions

1. Check the compatibility of your vehicle's crossbars with the roof box.
2. Position the roof box on the crossbars, ensuring it is centered and not obstructing any antennas or extending over the windshield.
3. Open the roof box to access the Farad Fast Fix mounting system.
4. Adjust the clamps to align with the crossbars and secure them tightly.
5. Ensure the roof box is securely attached to the crossbars by attempting to move it. If it shifts, retighten the clamps.
6. Close the roof box and check that the central locking system engages at all three points.

Troubleshooting Tips

• Warning: Never open both locks at the same time, as it may be difficult to re-engage them.
• If you encounter difficulty closing the roof box, ensure that only one side is unlocked at a time.
• If the pre-drilled holes do not align with your vehicle's crossbars, you may need to drill new holes. Ensure you do this carefully to avoid damaging the box.
• If the roof box makes noise at high speeds, recheck the mounting system for any loose parts and tighten as necessary.

Frequently Asked Questions (FAQs)

What is the actual size of the roof box?

The external dimensions are 160 x 80 x 40 cm, while the internal dimensions are slightly less at 154 x 73 cm.

Can I open the roof box from both sides?

Yes, the FARAD MARLIN 400L features a dual-side opening for convenience.

How do I ensure the roof box is securely fastened?

After installation, perform a manual check by trying to move the roof box. If there is any movement, tighten the clamps further.

Is it difficult to install the roof box?

No, the Farad Fast Fix mounting system is designed for easy installation, typically taking about 5 minutes once you are familiar with the process.

What should I do if the pre-drilled holes do not align with my crossbars?

You may need to drill additional holes. However, it is a simple process, just ensure you measure and align carefully before drilling.

How much weight can the roof box hold?

The maximum load capacity is 75 kg for autos and 90 kg for caravans.

Q: What is the volume of the Farad Marlin 400L black roof box?
A: The volume of the Farad Marlin 400L black roof box is 400 liters.

Q: What are the external dimensions of the roof box?
A: The external dimensions of the roof box are 160 x 80 x 40 cm.

Q: What are the internal dimensions of the roof box?
A: The internal dimensions of the roof box are 154 x 73 cm.

Q: Is the roof box certified?
A: Yes, the roof box is certified with TÜV-GS and City-Crash homologations.

Q: What is the maximum load capacity for cars and caravans?
A: The maximum load capacity for cars is 75 kg, and for caravans, it is 90 kg.

Q: What are the features of the Farad Marlin roof box?
A: The Farad Marlin roof box features a central locking system on three points, double side opening with patented lifters, Farad Fast Fix quick mounting system included, and UV-resistant shockproof material.

Q: What kind of roof bars can this roof box fit on?
A: This roof box can fit on all models with crossbars up to 8 cm in width and 3.5 cm in height. The minimum and maximum distance between the bars should be between 18 cm and 77 cm.

Q: Is there any information about the brand?
A: The brand of this product is Farad.

Q: What category does this product belong to?
A: This product belongs to the Auto et Moto > Transport et rangement > Galeries de toit et coffres > Coffres de toit category.

Q: What is the weight of the product?
A: The weight of the product is 13 kilograms.
