Nippon America Power Horn Speaker 100W Indoor Outdoor 100 Watt User Manual

Table of Contents

1. Package Contents
2. Installation
3. Connecting to Audio Devices
4. Specifications
5. Troubleshooting Tips
6. Frequently Asked Questions

1. Package Contents

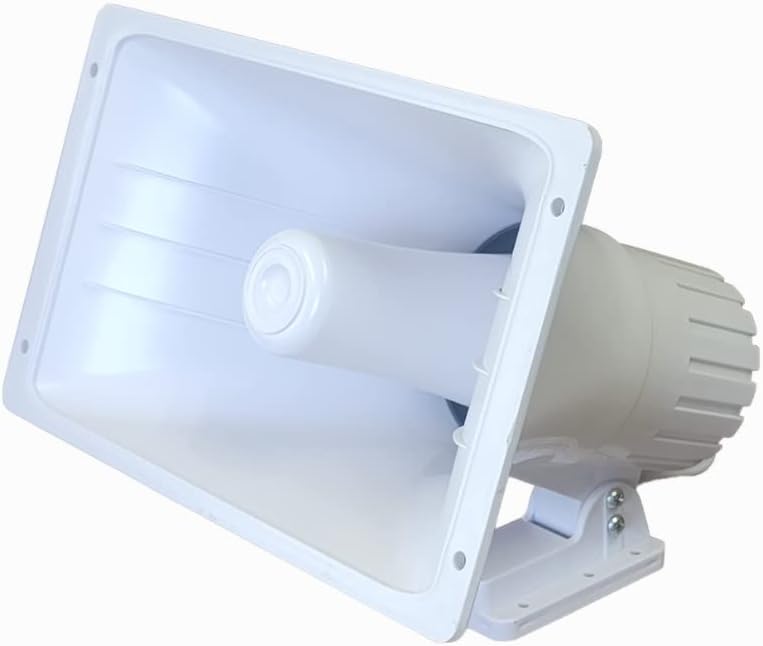

• Nippon America Power Horn Speaker (Model: TC55)
• Mounting Bracket
• User Manual

2. Installation

The Nippon America Power Horn Speaker can be mounted on walls or ceilings. To install the speaker, follow these steps:

1. Choose a suitable location for the speaker, ensuring it is protected from direct exposure to water.
2. Use the provided mounting bracket as a template to mark the screw holes on the mounting surface.
3. Drill pilot holes at the marked locations.
4. Attach the mounting bracket to the surface using appropriate screws (not included).
5. Slide the speaker onto the bracket and secure it in place.

3. Connecting to Audio Devices

The Nippon America Power Horn Speaker is compatible with any audio device with an output signal. To connect the speaker to your audio device, follow these steps:

1. Ensure that your audio device is turned off.
2. Connect the speaker's positive (+) terminal to the positive (+) terminal of your audio device using speaker wire (not included).
3. Connect the speaker's negative (-) terminal to the negative (-) terminal of your audio device using speaker wire (not included).
4. Turn on your audio device and adjust the volume to the desired level.

4. Specifications

• Power: 100 Watt Max Power, 50W RMS
• Impedance: 8 Ohms
• Frequency Response: 350Hz-9KHz
• Mounting Type: Wall Mount or Ceiling Mount
• Dimensions: 8.5 x 11 x 6.5 inches; 6 Pounds

5. Troubleshooting Tips

• If the speaker is not producing sound, check the connections between the speaker and the audio device. Ensure that the speaker wires are securely connected to the appropriate terminals.
• If the sound quality is poor, adjust the volume and equalizer settings on your audio device.
• If the speaker stops working after exposure to water, turn off the audio device and disconnect the speaker. Allow the speaker to dry completely before attempting to use it again.

6. Frequently Asked Questions

Can this speaker be used indoors and outdoors?

Yes, the Nippon America Power Horn Speaker can be used both indoors and outdoors. However, it is not waterproof, so it should be protected from direct exposure to water.

What is the recommended wattage for this speaker?

The recommended wattage for this speaker is 30 to 50 watts RMS.

Is this speaker compatible with any audio device?

Yes, this speaker is compatible with any audio device with an output signal.

Can I use this speaker as a center channel for my home theater system?

Yes, this speaker can be used as a center channel for a home theater system, providing crisp and clear sound.

Product FAQ:

Q: What are the dimensions and weight of the Nippon America Power Horn Speaker?
A: The product dimensions are 8.5 x 11 x 6.5 inches, and it weighs 6 pounds.

Q: What is the power rating of this speaker?
A: The Nippon America Power Horn Speaker has a maximum power output of 100 watts, with a RMS power rating of 50 watts.

Q: What is the frequency response range of this speaker?
A: The frequency response range of this speaker is from 350Hz to 9KHz.

Q: What type of mounting does this speaker require?
A: This speaker requires wall mounting.

Q: Is this speaker compatible with all audio devices?
A: Yes, this speaker is compatible with any audio device that has an output signal.

Q: Does this speaker require a direct power source?
A: No, it does not require a direct power source. It is a PA speaker that will play from the power of an amplifier.

Q: Can I hook this up to a car stereo?
A: Yes, you can hook this up to a car stereo. However, it is recommended to use a small amplifier with bass turned all the way down for optimal sound quality.

Q: What is the impedance of this speaker?
A: The impedance of this speaker is 8.0 ohms.

Q: Is assembly required for this product?
A: No, assembly is not required for this product.

Q: Is this speaker battery-powered or electric-powered?
A: This speaker is electric-powered and requires a corded electric power source.

Q: What is included in the package when purchasing this product?
A: The package includes one indoor/outdoor Powerhorn speaker.
