VIVITEK D853W 3000 Lumen WXGA Projector User Manual

Table of Contents

1. Introduction
2. Package Contents
3. Projector Setup
4. Connecting Devices
5. Using the Projector
6. Troubleshooting Tips
7. Frequently Asked Questions

1. Introduction

Welcome to the VIVITEK D853W 3000 Lumen WXGA Projector user manual. This projector is designed to provide high-quality images and videos for various purposes, such as presentations, movies, and gaming. With its various connection options, it is compatible with a wide range of devices.

2. Package Contents

Before you begin setting up your projector, please ensure that you have the following items in the package:

• VIVITEK D853W Projector
• Remote Control
• Power Cord
• VGA Cable
• User Manual

3. Projector Setup

1. Place the projector on a flat, stable surface or mount it on the ceiling using a compatible projector mount (not included).
2. Adjust the projector's position to achieve the desired image size and distance from the screen or wall.
3. Connect the power cord to the projector and plug it into a power outlet.
4. Turn on the projector using the power button located on the top of the projector or the remote control.
5. Adjust the focus and zoom rings on the lens to achieve a clear image.
6. If necessary, use the digital keystone correction to adjust the image shape.

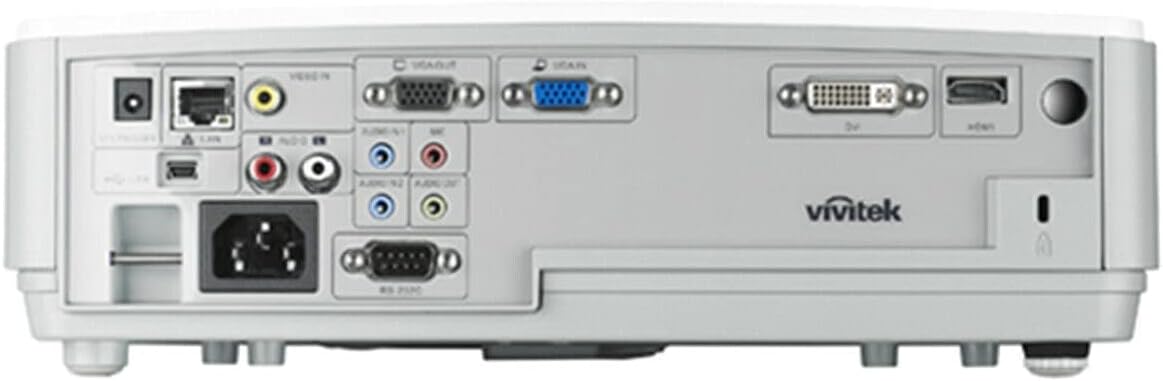

4. Connecting Devices

To connect a device to the projector, choose the appropriate connection method from the list below and follow the corresponding steps:

HDMI

Connect an HDMI cable (not included) from your device to the HDMI port on the projector.

VGA

Connect the included VGA cable from your device to the VGA port on the projector.

DVI

Connect a DVI cable (not included) from your device to the DVI port on the projector.

Composite

Connect a composite video cable (not included) from your device to the RCA port on the projector.

Network

Connect an Ethernet cable (not included) from your device to the RJ-45 LAN port on the projector.

USB

Connect a USB cable (not included) from your device to the USB Mini Type-A port on the projector.

5. Using the Projector

1. Turn on the connected device.
2. Press the "Source" button on the projector or remote control to select the appropriate input source.
3. Adjust the volume using the "Volume" buttons on the projector or remote control.
4. Use the "Menu" button to access the projector's settings and adjust them as needed.
5. When finished, turn off the projector using the power button on the projector or remote control.

6. Troubleshooting Tips

No image appears on the screen

Ensure the projector is turned on and the correct input source is selected. Check the connections between the projector and the device.

Image is not clear or focused

Adjust the focus and zoom rings on the lens. Ensure the projector is at the correct distance from the screen or wall.

Image is distorted or has incorrect colors

Use the digital keystone correction and color correction settings in the projector's menu to adjust the image.

Remote control does not work

Ensure the remote control has working batteries and is pointed directly at the projector's IR sensor.

7. Frequently Asked Questions

What is the lamp life of the VIVITEK D853W projector?

The lamp life is 4000 hours in normal mode and 6000 hours in Eco mode.

Can the VIVITEK D853W projector be used for 3D content?

Yes, this projector is PC 3D Ready and can display 3D content when connected to a compatible device.

What is the maximum resolution supported by the projector?

The maximum supported resolution is 1600x1200.

Is the projector compatible with laptops?

Yes, the projector can be connected to laptops using HDMI, VGA, or DVI cables.

Q: What is the brightness of the Vivitek D853W projector?
A: The Vivitek D853W projector has a brightness of 3200 ANSI Lumens.

Q: What is the resolution of the Vivitek D853W projector?
A: The Vivitek D853W projector has a resolution of 1280x800.

Q: What is the aspect ratio of the Vivitek D853W projector?
A: The Vivitek D853W projector has an aspect ratio of 16:10 (WXGA).

Q: What is the contrast ratio of the Vivitek D853W projector?
A: The Vivitek D853W projector has a contrast ratio of 3,200:1 (full on/off).

Q: What type of display does the Vivitek D853W projector use?
A: The Vivitek D853W projector uses a 0.60" DLP x 1 display.

Q: What are the video modes supported by the Vivitek D853W projector?
A: The Vivitek D853W projector supports video modes including 720p, 1080i, 576i, 480p, and 480i.

Q: What are the data modes supported by the Vivitek D853W projector?
A: The Vivitek D853W projector supports data modes up to MAX 1600x1200.

Q: Is the Vivitek D853W projector compatible with PC 3D?
A: Yes, the Vivitek D853W projector is PC 3D ready.

Q: What is the lamp life of the Vivitek D853W projector?
A: The lamp life of the Vivitek D853W projector is 4000 hours / 6000 hours (Eco).

Q: What type of lamp does the Vivitek D853W projector use?
A: The Vivitek D853W projector uses a 220W Metal Halide bulb.

Q: What is the throw distance of the Vivitek D853W projector?
A: The Vivitek D853W projector has a throw distance of 5.0' - 32.2'.

Q: What is the image size range of the Vivitek D853W projector?
A: The Vivitek D853W projector can project an image size ranging from 40.20" - 299.78".

Q: What is the throw ratio of the Vivitek D853W projector?
A: The Vivitek D853W projector has a throw ratio of 1.52:1 - 1.76:1 (D:W).

Q: What type of keystone correction does the Vivitek D853W projector have?
A: The Vivitek D853W projector has digital keystone correction that is vertical only.

Q: What is the weight and size of the Vivitek D853W projector?
A: The Vivitek D853W projector weighs 6.0 lbs and its dimensions are 4.30" x 12.00" x 8.50" (HxWxD).

Q: What is the wattage of the Vivitek D853W projector?
A: The Vivitek D853W projector has a power consumption of 280 watts with a voltage range of 110V - 240V.

Q: What are the connectivity options available on the Vivitek D853W projector?
A: The Vivitek D853W projector features multiple connectivity options including VGA, USB, HDMI, Composite RCA, LAN, RS232 DB-9pin, USB Mini Type-A, and 12-Volt Trigger.

Q: Does the Vivitek D853W projector have built-in speakers?
A: Yes, the Vivitek D853W projector has a built-in speaker with 10.0 Watts Mono output.

Q: What are the special features of the Vivitek D853W projector?
A: The Vivitek D853W projector features PC 3D Ready, Built-in Speakers, Ceiling Projection, Color Correction, HD Ready, Portable, Projection Tilt, Rear Projection, and Table Top Projection.
