Klipsch R-115SW Subwoofer User Manual

Table of Contents

1. Introduction
2. Package Contents
3. Product Overview
4. Setup and Installation
5. Operation and Settings
6. Troubleshooting Tips
7. Frequently Asked Questions

1. Introduction

Thank you for purchasing the Klipsch R-115SW Subwoofer. This high-quality subwoofer is designed to deliver powerful, deep bass to enhance your home audio experience. Please read this user manual carefully to ensure proper setup and usage.

2. Package Contents

• Klipsch R-115SW Subwoofer
• Power Cord
• User Manual

3. Product Overview

The Klipsch R-115SW Subwoofer features a 15" spun-copper Cerametallic woofer, driven by a powerful 400-watt RMS amplifier (800 watts peak power). It is compatible with the wireless audio adapter kit for easy connection to your sound system. The all-digital amplifier delivers dynamic power to enhance your audio experience.

4. Setup and Installation

1. Find a suitable location for the subwoofer, ensuring it is close to an electrical outlet and within reach of your audio system.
2. Place the subwoofer on a stable, flat surface, making sure there is adequate space around it for ventilation.
3. Connect the power cord to the subwoofer and plug it into an electrical outlet.
4. Connect the subwoofer to your audio system using either a wired connection or the wireless audio adapter kit (sold separately).
5. Turn on the subwoofer and your audio system.

5. Operation and Settings

The Klipsch R-115SW Subwoofer features several controls and settings to customize your audio experience:

• Gain: Adjusts the subwoofer's output level. Start with the gain set to the middle position and adjust according to your preference.
• Low Pass: Adjusts the crossover frequency for the subwoofer. Set this control to match the low-frequency capabilities of your main speakers.
• Phase: Adjusts the phase of the subwoofer's output in relation to your main speakers. Experiment with this control to find the setting that provides the best bass response in your listening area.
• Power: Switches the subwoofer between ON, OFF, and AUTO power modes. In AUTO mode, the subwoofer will automatically turn on when it detects an audio signal and turn off after a period of inactivity.

6. Troubleshooting Tips

If you encounter any issues with your Klipsch R-115SW Subwoofer, try the following troubleshooting tips:

• Ensure the power cord is securely connected to the subwoofer and plugged into a working electrical outlet.
• Verify that the audio cable connecting the subwoofer to your audio system is properly connected.
• Check the settings on your audio system to ensure it is sending a signal to the subwoofer.
• Adjust the Gain, Low Pass, and Phase controls to optimize the subwoofer's performance in your listening area.
• If the subwoofer is not producing any sound, try resetting it by turning it off, unplugging it from the electrical outlet, waiting 30 seconds, and then plugging it back in and turning it on.

7. Frequently Asked Questions

Q: Will this subwoofer last?

A: The Klipsch R-115SW Subwoofer is designed for long-lasting performance. However, if you encounter any issues, Klipsch offers customer service and warranty support.

Q: How do I connect the subwoofer wirelessly?

A: The Klipsch R-115SW Subwoofer is compatible with the wireless audio adapter kit (sold separately). Follow the instructions provided with the kit to connect the subwoofer wirelessly to your audio system.

Q: What is the recommended setting for the Low Pass control?

A: Set the Low Pass control to match the low-frequency capabilities of your main speakers. Consult your speaker's user manual for information on their frequency range.

Q: Can I use this subwoofer in an apartment or multi-family dwelling?

A: Due to its powerful output, the Klipsch R-115SW Subwoofer may not be suitable for use in apartments or multi-family dwellings, as it may disturb your neighbors.

Product: Klipsch R-115sw Subwoofer - Electronics

Specifications:
- Brand: Klipsch
- Manufacturer: Klipsch
- Model Number: R-115 SW
- Category: Electronics > Home Audio > Speakers > Subwoofers

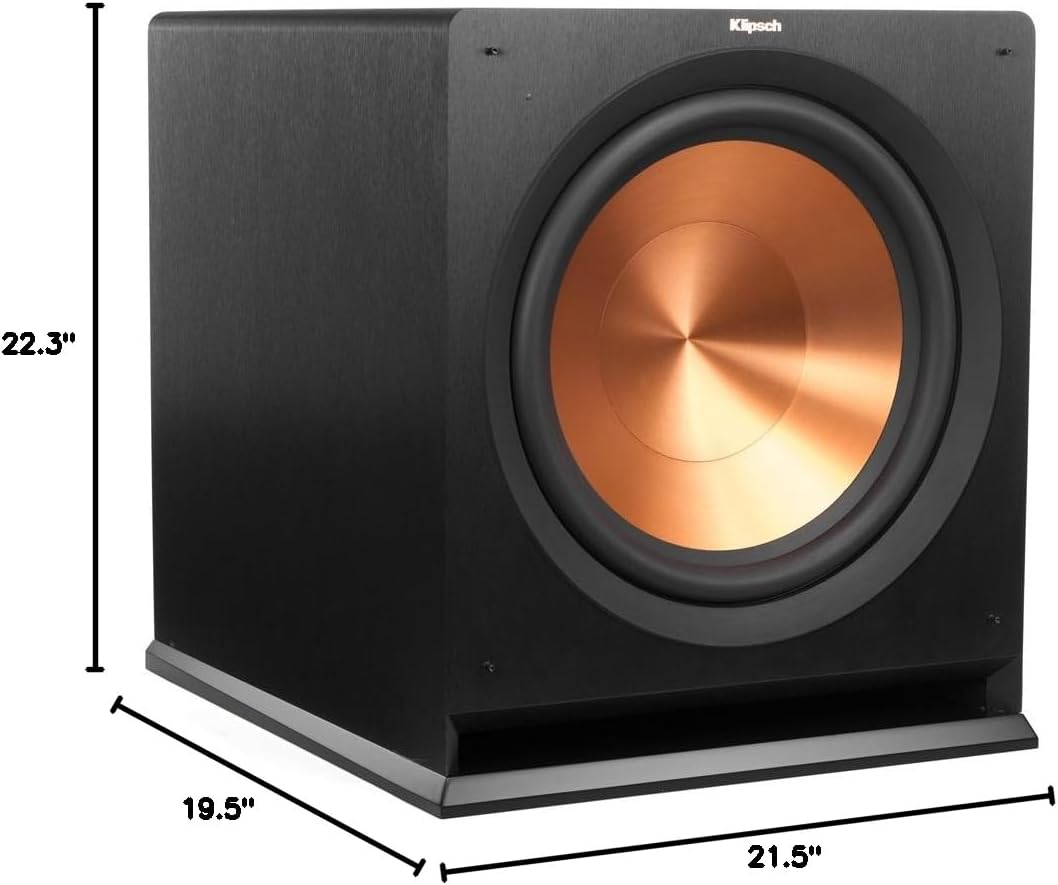

- Product Dimensions: 21.5 x 19.5 x 22.3 inches
- Item Weight: 75.2 pounds
- ASIN: B00OOSAELO
- Item model number: R-115 SW
- Customer Reviews: 3.8 out of 5 stars 182 ratings 3.8 out of 5 stars
- Best Sellers Rank: #139,158 in Electronics
- Is Discontinued By Manufacturer: No
- Date First Available: March 18, 2015
- Model Name: R-115sw
- Speaker Type: Subwoofer, Woofer
- Connectivity Technology: Wireless
- Special Feature: Built-in microphone
- Weight: 75.2 pounds
- Dimensions: 21.5 x 19.5 x 22.3 inches

FAQ:
Q1. What is the difference between the R-115sw and the SPL-150?
A1. The R-115sw was phased out as they began releasing the SPL-150, and they are essentially the same apart from price and age at this point. They have a slightly different cabinet build, but the amp that powers them is not upgraded.

Q2. Can I use this sub turn the gain to LFE and give my bookshelf speakers more power with this sub?
A2. The volume or gain is calibrated in decibels (- to +), and the low pass or crossover is in hertz (Hz), which is where you set the LFE function of the subwoofer. The amplifier in the sub is for the function of the sub, and the bookshelf speakers would get their power from the source they are connected to, such as an AV receiver or power amp, unless they are powered themselves. This sub will make your movies sound better, but it may not be the best sub for music if that is the primary use of your system. Also, consider if you really need a sub of this size as it is large and heavy.

Q3. When will Klipsch come out with a better amp for these? They're known for premature failure.
A3. The issue of premature failure was resolved when these were first introduced, and if you have an older one that fries, Klipsch will send you a replacement amp.

Q4. Will this sub link to my Klipsch soundbar?
A4. Klipsch makes a wireless kit that should work to have the soundbar connected to the sub. However, testing has shown that the OSD wireless kit is better.

Q5. Does this unit have an auto-on function when receiving an input signal from a preamp sub out?
A5. Yes, it does. It has a switch that changes from "On," "Standby," and "Off." In Standby mode, it will come on when it receives an audio signal.

Q6. Would it be better to get one of these or two R-120sw's?
A6. One of these will reach some frequencies that the R-120 won’t. At the end of the day, you'll feel better knowing that you got the one with the best quality. If you have bookshelf speakers, this is a large and heavy sub, so consider if you really need a sub of this size.

Q7. Will this one last?
A7. The amps in these subs have a tendency to fail, but Klipsch has been good about customer service and will send a replacement amp if needed.

Overall, the Klipsch R-115sw Subwoofer is a powerful and great-sounding sub that can be connected wirelessly to a sound system. It has a 15" spun-copper Cerametallic woofer and an all-digital amplifier that delivers 800 watts of dynamic power. However, it is large and heavy, so consider if you really need a sub of this size.
