Klipsch RP-450C Center Channel Speaker User Manual

Table of Contents

1. Introduction
2. Package Contents
3. Speaker Placement
4. Connecting the Speaker
5. Troubleshooting Tips
6. Frequently Asked Questions

1. Introduction

Thank you for purchasing the Klipsch RP-450C Center Channel Speaker. This speaker has been designed to deliver the ultimate home theater experience, with lifelike movie dialogues and music lyrics. Please read this user manual carefully to ensure proper setup and usage of your new speaker.

2. Package Contents

• Klipsch RP-450C Center Channel Speaker
• Strong, Flexible Removable Grille
• User Manual

3. Speaker Placement

The Klipsch RP-450C center channel speaker should be placed either above or below your TV or projector screen. Ensure that the speaker is aligned with the center of the screen and at ear level when seated in your primary listening position. The speaker can be placed on a shelf, stand, or a specially designed center channel speaker mount. Please note that the speaker is not designed for wall mounting.

4. Connecting the Speaker

1. Turn off your amplifier or receiver before making any connections.
2. Locate the speaker terminals on the back of the RP-450C speaker. There will be two sets of terminals: one for the positive (+) connection and one for the negative (-) connection.
3. Connect the speaker wire from your amplifier or receiver to the appropriate terminals on the back of the speaker. Ensure that the positive (+) terminal on the speaker is connected to the positive (+) terminal on your amplifier or receiver, and the negative (-) terminal on the speaker is connected to the negative (-) terminal on your amplifier or receiver.
4. Secure the connections by tightening the terminal screws on the back of the speaker.
5. Turn on your amplifier or receiver and test the speaker for proper operation.

5. Troubleshooting Tips

• If there is no sound from the speaker, check all connections and ensure that the speaker wires are connected to the correct terminals.
• If the sound is distorted, ensure that the speaker is not being overdriven by your amplifier or receiver. Reduce the volume if necessary.
• If the sound is lacking bass or sounds thin, check the polarity of the speaker connections. Make sure the positive (+) and negative (-) terminals are connected correctly.

6. Frequently Asked Questions

Q: Can I wall mount the RP-450C speaker?

A: The Klipsch RP-450C is not designed for wall mounting. It is recommended to place the speaker on a shelf, stand, or a specially designed center channel speaker mount.

Q: What is the difference between the RP-450C and the RP-504C?

A: The main difference between the two models is the size and number of woofers. The RP-450C has four 5.25" woofers, while the RP-504C has four 6.5" woofers. The RP-504C also has a slightly higher power handling capacity.

Q: Is the RP-450C compatible with Dolby Atmos?

A: Yes, the Klipsch RP-450C is Dolby Atmos ready and can be used in a Dolby Atmos home theater setup.

Q: Can I use the RP-450C as a standalone speaker for music listening?

A: While the RP-450C is designed primarily as a center channel speaker for home theater use, it can also be used for music listening. However, for the best music listening experience, it is recommended to use a pair of Klipsch floorstanding or bookshelf speakers.

Q: What are the dimensions and weight of the Klipsch RP-450C Center Channel Speaker?
A: The product dimensions of the Klipsch RP-450C Center Channel Speaker are 14.6 x 31.2 x 6.9 inches, and it weighs 35.7 pounds.

Q: What are the features of the Klipsch RP-450C Center Channel Speaker?

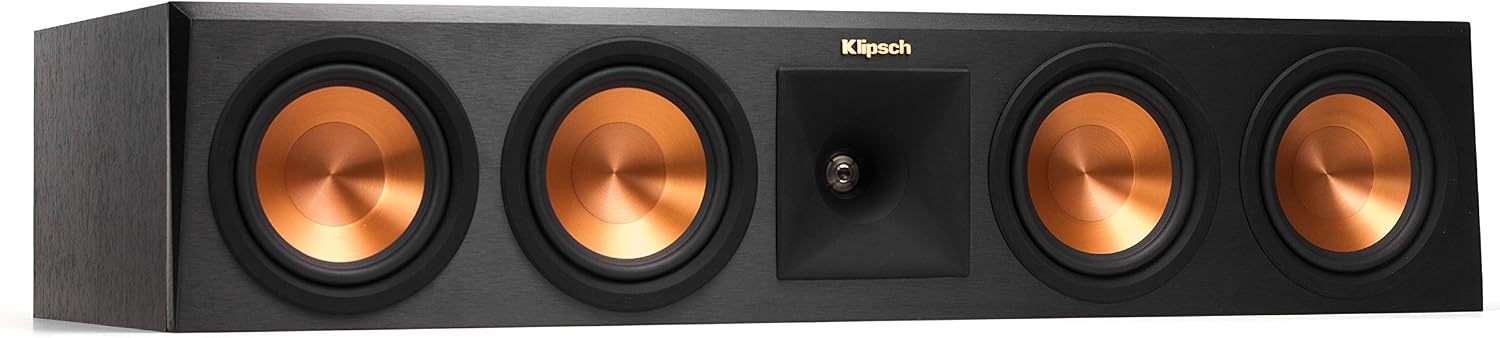

A: The Klipsch RP-450C Center Channel Speaker has a 1" Linear Travel Suspension Titanium Tweeter, quad 5.25" Spun Copper Cerametallic Cone Woofers, and a 90x90 Hybrid Tractrix Horn. It also has an all-new Tractrix Port, MDF Cabinet with Brushed Polymer Veneer Baffle Finish, and a strong, flexible removable grille.

Q: What is the country of origin of the Klipsch RP-450C Center Channel Speaker?
A: The Klipsch RP-450C Center Channel Speaker is made in China.

Q: Is the Klipsch RP-450C Center Channel Speaker compatible with Dolby Atmos?
A: Yes, the Klipsch RP-450C Center Channel Speaker is Dolby Atmos ready and can deliver a hemisphere of sound that completely engulfs the listener in their movies and music.

Q: How many woofers does the Klipsch RP-450C Center Channel Speaker have?
A: The Klipsch RP-450C Center Channel Speaker has four 5.25" Cerametallic woofers.

Q: How do you connect banana plugs to this speaker?
A: To connect banana plugs to this speaker, remove the little covers on top of the connectors by prying them off with a knife or your fingernails to reveal the spot to plug your banana plug into.

Q: Does the Klipsch RP-450C Center Channel Speaker replace all three front speakers in a home theater setup?
A: No, the Klipsch RP-450C Center Channel Speaker is designed to be a center channel speaker and should be used in conjunction with left and right speakers in a home theater setup.

Q: What is the difference between the RP-450C and the RP-504C?
A: The main difference between the RP-450C and the RP-504C is that the RP-504C has a new vented tweeter that provides better clarity and distinction than its predecessor. Other than this, these speakers are similar.

Q: Is it worth spending $250 more on the RP-504C compared to the RP-450C?
A: The decision to spend more on the RP-504C instead of the RP-450C depends on personal preference. While both speakers are similar, the RP-504C has a new vented tweeter that provides better clarity and distinction.

Q: Can anyone recommend a TV stand with a middle shelf with dimensions that fit the Klipsch RP-450C Center Channel Speaker?
A: It is not recommended to place a center speaker inside a shelf. It is best to have it as close to the TV as possible. If you cannot mount your TV, you may want to consider placing the speaker on top of the console.

Q: Does Sound Distributors sell new or open box Klipsch RP-450C Center Channel Speakers?
A: Sound Distributors sells both new and open box Klipsch RP-450C Center Channel Speakers.

Q: Are there any recommended center channel speakers that match well with RB-81 II speakers for home theater use?
A: It is recommended to have all front three speakers match timbre for a smooth transition across the front stage. The RC-62II would be a perfect match for RB-81 II speakers, while the RC-64II would be a more expensive but closer match for the tweeters. The RP-450C is also a good option but may be less forward or bright than the RB-81 II speakers.

Q: What are some customer reviews of the Klipsch RP-450C Center Channel Speaker?
A: Customers have praised the Klipsch RP-450C Center Channel Speaker for its clear and natural sound, ability to bring movie dialogue and music lyrics to life, and compatibility with Dolby Atmos. Some customers have also recommended Sound Distributors as a great seller for Klipsch products.
