Audio-Technica Wireless Microphones and Transmitters (ATW1301) User Manual

Table of Contents

1. Introduction
2. Package Contents
3. System Setup
4. Operating the System
5. Troubleshooting Tips
6. Frequently Asked Questions

1. Introduction

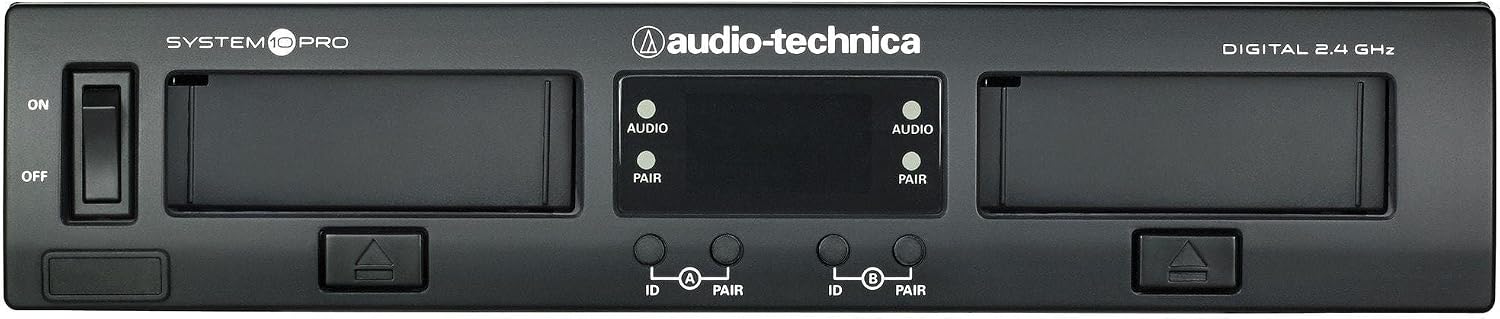

Welcome to the Audio-Technica ATW1301 System 10 PRO Rack-Mount digital wireless system. This system offers interference-free operation in the 2.4 GHz range and features 24-bit operation, easy setup, clear natural sound quality, and three levels of diversity assurance: frequency, time, and space.

2. Package Contents

Before you begin, ensure your package contains the following items:

• ATW-RC13 receiver chassis with rack-mount adapters
• One or two ATW-RU13 receiver units with corresponding AT8690 receiver unit mounting brackets
• Joining plate (for dual-channel systems only)
• RJ12 cable
• AC adapter
• One or two ATW-T1001 UniPak body-pack or ATW-T1002 handheld transmitters, or one of each

3. System Setup

1. Connect the AC adapter to the ATW-RC13 receiver chassis and plug it into a power outlet.
2. Attach the rack-mount adapters to the receiver chassis if needed.
3. Insert the ATW-RU13 receiver unit(s) into the chassis or mount them remotely using the AT8690 mounting brackets and an Ethernet cable (up to 328 feet away).
4. For dual-channel systems, use the joining plate to connect the receiver units.
5. Connect the RJ12 cable between the receiver chassis and receiver unit(s).
6. Install batteries in the ATW-T1001 UniPak body-pack or ATW-T1002 handheld transmitter(s).
7. Turn on the receiver unit(s) and transmitter(s).

4. Operating the System

1. Turn on the receiver unit(s) and transmitter(s) by pressing their power buttons.
2. Check the displays on the receiver unit(s) and transmitter(s) to ensure they are connected and operating on the same channel.
3. Adjust the volume on the receiver unit(s) as needed.
4. For the ATW-T1001 UniPak body-pack transmitter, connect a compatible microphone or instrument cable to the transmitter's input connector.
5. For the ATW-T1002 handheld transmitter, simply speak or sing into the microphone.

5. Troubleshooting Tips

1. If the system is not connecting, ensure the receiver unit(s) and transmitter(s) are operating on the same channel.
2. Check the battery level on the transmitter(s) if the signal is weak or intermittent.
3. If experiencing interference, try changing the channel on the receiver unit(s) and transmitter(s).
4. Ensure the antennas on the receiver unit(s) and transmitter(s) are not obstructed or damaged.

6. Frequently Asked Questions

Q: Can I use multiple ATW1301 systems together?

A: Yes, up to five chassis (10 receiver units) can be linked using the included RJ12 cable, allowing for the simultaneous use of up to 10 channels.

Q: Is the ATW1301 compatible with other Audio-Technica wireless systems?

A: The ATW1301 is part of the System 10 wireless family and is designed to work with other System 10 components.

Q: What is the operating range of the ATW1301?

A: The ATW1301 operates in the 2.4 GHz range (outside TV bands) and can be used up to 328 feet away when the receiver units are mounted remotely using an Ethernet cable.

Q: Can I use the ATW1301 with both handheld and body-pack transmitters?

A: Yes, the ATW1301 system can be used with either ATW-T1001 UniPak body-pack or ATW-T1002 handheld transmitters, or a combination of both.

Q: What is the Audio-Technica Wireless Microphones and Transmitters (ATW1301) used for?
A: The Audio-Technica Wireless Microphones and Transmitters (ATW1301) is a System 10 PRO Rack-Mount digital wireless system that provides interference-free operation in the 2.4 GHz range for musical instruments.

Q: What are the features of the Audio-Technica Wireless Microphones and Transmitters (ATW1301)?
A: The Audio-Technica Wireless Microphones and Transmitters (ATW1301) features a durable half-rack chassis that can house two receiver units, up to 10 channels can be used simultaneously, and it has three levels of diversity assurance: frequency, time, and space. The system also includes an ATW-RC13 receiver chassis with rack-mount adapters, one or two ATW-RU13 receiver units with corresponding AT8690 receiver unit mounting brackets, a joining plate (for dual-channel systems only), one RJ12 cable, one AC adapter, and one or two ATW-T1001 UniPak body-pack or ATW-T1002 handheld transmitters.

Q: What is the weight and dimension of the Audio-Technica Wireless Microphones and Transmitters (ATW1301)?
A: The Audio-Technica Wireless Microphones and Transmitters (ATW1301) weighs 1 pound and has dimensions of 7 x 1 x 4 inches.

Q: What is the power source of the Audio-Technica Wireless Microphones and Transmitters (ATW1301)?
A: The power source of the Audio-Technica Wireless Microphones and Transmitters (ATW1301) is battery-powered.

Q: How many channels does the Audio-Technica Wireless Microphones and Transmitters (ATW1301) have?
A: The Audio-Technica Wireless Microphones and Transmitters (ATW1301) has 2 channels.

Q: What is included in the Audio-Technica Wireless Microphones and Transmitters (ATW1301) package?
A: The Audio-Technica Wireless Microphones and Transmitters (ATW1301) package includes an ATW-RC13 receiver chassis with rack-mount adapters, one or two ATW-RU13 receiver units with corresponding AT8690 receiver unit mounting brackets, a joining plate (for dual-channel systems only), one RJ12 cable, one AC adapter, and one or two ATW-T1001 UniPak body-pack or ATW-T1002 handheld transmitters.
