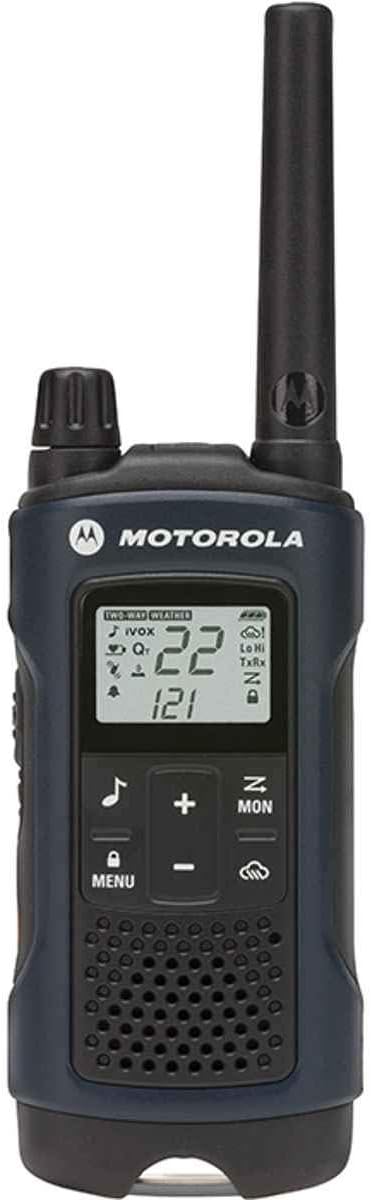

MOTOROLA SOLUTIONS Talkabout T460 Rechargeable Two-Way Radio Pair (Dark Blue) User Manual

Table of Contents

1. Getting Started
2. Charging the Batteries
3. Turning On/Off the Radio
4. Selecting a Channel and Privacy Code
5. Using the Push-To-Talk (PTT) Button
6. Hands-free Communication with iVOX/VOX
7. Using the Built-in Flashlight
8. Emergency Alert Button
9. Weather Channels and Alerts
10. Troubleshooting Tips
11. FAQs

1. Getting Started

Before using your T460 two-way radio, make sure to charge the included NiMH rechargeable batteries or insert 3 AA batteries.

2. Charging the Batteries

To charge the NiMH batteries, follow these steps:

1. Insert the NiMH batteries into the battery compartment of each radio.
2. Connect the micro-USB charging cable to the charging port on the side of each radio.
3. Plug the other end of the charging cable into a wall outlet or other USB power source.
4. Allow the batteries to charge for up to 10 hours or until the battery indicator on the display shows a full charge.

3. Turning On/Off the Radio

To turn on the radio, press and hold the Power button located on the top of the radio until you hear a tone and the display turns on. To turn off the radio, press and hold the Power button again until you hear a tone and the display turns off.

4. Selecting a Channel and Privacy Code

Follow these steps to select a channel and privacy code:

1. Press the Menu button to enter the menu.
2. Use the Up/Down buttons to select a channel (1-22).
3. Press the Menu button again to access the privacy codes (1-121).
4. Use the Up/Down buttons to select a privacy code.
5. Press the PTT button to save your selections and exit the menu.

5. Using the Push-To-Talk (PTT) Button

To communicate with others on the same channel and privacy code, press and hold the PTT button on the side of the radio, wait for a brief moment, and then speak into the microphone. Release the PTT button when you finish speaking to allow others to respond.

6. Hands-free Communication with iVOX/VOX

To enable hands-free communication, follow these steps:

1. Press the Menu button until you see the iVOX/VOX icon on the display.
2. Use the Up/Down buttons to select the desired sensitivity level (1-3).
3. Press the PTT button to save your selection and exit the menu.

With iVOX/VOX enabled, the radio will automatically transmit when it detects your voice, allowing you to communicate without pressing the PTT button.

7. Using the Built-in Flashlight

To turn on the built-in LED flashlight, press and hold the Flashlight button located on the top of the radio. To turn off the flashlight, press and hold the Flashlight button again.

8. Emergency Alert Button

In case of an emergency, press and hold the Emergency Alert button located on the side of the radio for 3 seconds. The radio will emit an alert siren followed by the transmission of any spoken or incidental sounds, alerting others to your situation.

9. Weather Channels and Alerts

To access NOAA weather channels and alerts, follow these steps:

1. Press the Menu button until you see the Weather icon on the display.
2. Use the Up/Down buttons to select a weather channel.
3. Press the PTT button to save your selection and exit the menu.

To enable weather alerts, press and hold the Menu button while in the weather channel mode. The radio will emit a tone when a weather alert is received.

10. Troubleshooting Tips

• If the radio is not turning on, ensure the batteries are properly installed and charged.
• If the radio is not transmitting or receiving, check that the selected channel and privacy code match those of the other radios in your group.
• If the range is limited or the signal is weak, move to a higher elevation or away from obstructions.
• If the battery life is shorter than expected, try using the PTT Power Boost feature or replace the batteries.

11. FAQs

What is the maximum range for these radios?

The maximum range is up to 35 miles in ideal conditions. However, actual range will vary depending on terrain, weather conditions, and obstructions.

How long does the battery last?

The battery life is up to 8.5 hours with the included NiMH rechargeable batteries or up to 21 hours with 3 AA batteries.

Are these radios waterproof?

The radios have an IP54 weatherproof rating, which means they are resistant to water splashes and dust, but not fully waterproof.

Can I use these radios with other brands and models?

Yes, as long as the other radios are FRS/GMRS compatible and set to the same channel and privacy code.

Q: What is the range of the Motorola Solutions Talkabout T460 Rechargeable Two-Way Radio Pair?
A: The range of the T460 is up to 35 miles, but this can be reduced in real-life conditions depending on terrain and other factors such as weather conditions, electromagnetic interference, and obstructions.

Q: What are the key features of the T460?
A: The T460 has 22 channels with 121 privacy codes, NOAA weather channels and alerts, a built-in flashlight, an emergency alert button, IP54 weatherproof rating, dual power options, PTT power boost, iVOX/VOX hands-free communication, and a micro USB charging port.

Q: What is PTT power boost?
A: PTT power boost is a feature that allows you to extend the transmission range by increasing the transmitter power output. It also saves battery life when no power boost is necessary.

Q: Can I receive real-time weather updates with the T460?
A: Yes, you can keep updated with real-time weather conditions by turning on the weather channel or initiating weather alerts. This feature allows you to be prepared for unexpected weather changes.

Q: How many channels and privacy codes does the T460 have?
A: The T460 has 22 channels with 121 privacy codes, totaling 2,662 combinations. This makes it easy to find an available channel when communicating with others.

Q: Is the T460 waterproof?
A: No, the T460 has an IP54 weatherproof rating which means it can withstand some exposure to water but cannot be submerged in water.

Q: What is included in the packaging of the T460?
A: The package includes 2 radios, 2 NiMH rechargeable batteries, 2 micro-USB wall charging cables, 2 belt clips, a user guide, and an accessory brochure.

Q: How long does the battery last on the T460?
A: The battery life of the T460 is up to 8.5 hours with the included NiMH rechargeable batteries or up to 21 hours with 3 AA batteries.

Q: Can I replace the rechargeable battery on the T460?
A: Yes, the rechargeable battery on the T460 is replaceable. It also takes AA batteries for additional power options.

Q: Is the T460 compatible with all types of headsets/microphones?
A: No, the T460 only has one standard headphone jack and may not be compatible with headsets/microphones that have two plugs at the end.

Q: What is the weight and dimensions of the T460?
A: The T460 weighs 6.7 ounces and has dimensions of 1.37 x 2.26 x 7.54 inches.
