Garmin 010-11617-32 Extension Cable, 12-pin User Manual

Package Contents

• 1 x Garmin 12-pin Extension Cable
• Documentation

Instructions for Use

1. Locate the existing Garmin transducer cable on your boat.
2. Ensure that the boat's power is turned off before proceeding with the installation.

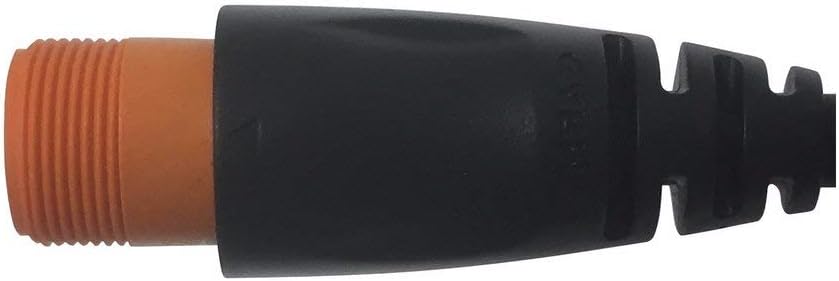

3. Identify the female connector on the Garmin 12-pin extension cable.
4. Connect the female connector of the extension cable to the male connector of the existing transducer cable.
5. Ensure that the connection is secure and properly aligned.
6. Identify the male connector on the Garmin 12-pin extension cable.
7. Connect the male connector of the extension cable to the female connector on your Garmin chart plotter or compatible server device.
8. Ensure that the connection is secure and properly aligned.
9. Secure the extension cable along the boat's rigging or wiring channels, avoiding sharp bends or kinks in the cable.
10. Turn on the boat's power and verify that the Garmin chart plotter or server device is receiving data from the transducer through the extension cable.

Troubleshooting Tips

• If the Garmin chart plotter or server device is not receiving data from the transducer, check all connections to ensure they are secure and properly aligned.
• Inspect the extension cable for any visible damage or kinks that may be affecting its performance.
• Ensure that the extension cable is compatible with your specific Garmin device and transducer model.
• If problems persist, contact Garmin customer support for further assistance.

Frequently Asked Questions

Is this extension cable compatible with all Garmin transducers?

This Garmin 12-pin extension cable is designed for use with XID transducers. Please check your transducer model to ensure compatibility.

How long is the extension cable?

The Garmin 12-pin extension cable is approximately 5.91 x 5.91 x 1.57 inches in size and adds extra length to your existing transducer cable, allowing for a more flexible installation on your boat.

What is the material of the extension cable?

The Garmin 12-pin extension cable is made of durable plastic material, ensuring a long-lasting and reliable connection between your transducer and Garmin device.

Can I use this extension cable with other brands or devices?

This extension cable is specifically designed for use with Garmin devices and XID transducers. Compatibility with other brands or devices is not guaranteed.

Is the extension cable waterproof?

While the Garmin 12-pin extension cable is designed for use on boats and in marine environments, it is recommended to protect the connectors with watertight caps when not in use to prevent water damage or corrosion.

Q: What is the country of origin for the Garmin 010-11617-32 Extension Cable?
A: The Garmin 010-11617-32 Extension Cable is made in China.

Q: What type of transducers is this extension cable compatible with?
A: This extension cable is compatible with XID transducers.

Q: What is the part number for this extension cable?
A: The part number for this extension cable is 010-11617-32.

Q: What is the package weight of this product?
A: The package weight of this product is 0.4 pounds.

Q: What category does this product belong to?
A: This product belongs to the Sports & Outdoors > Electronics > GPS, Finders & Accessories > GPS System Accessories > Chargers & Cables category.

Q: What is the color of this extension cable?
A: The color of this extension cable is black.

Q: What is the connector gender of this extension cable?
A: The connector gender of this extension cable is female-to-male.

Q: How many items are included in the package?
A: One item is included in the package.

Q: What is the connectivity technology used by this extension cable?
A: This extension cable uses 12 PIN connectivity technology.

Q: What is the material used to make this extension cable?
A: This extension cable is made of plastic.

Q: Does this extension cable come with any included components?
A: Yes, it comes with an Extension Cable and a document.

Q: When was this product first available for purchase?
A: This product was first available for purchase on August 11, 2015.

Q: Will this extension cable work with a Garmin Echomap Chirp Plus 73sv?
A: Yes, it should work for all 12-pin transponders, including the Garmin Echomap Chirp Plus 73sv.

Q: Does this extension cable have a nut to keep it securely attached to the Garmin Echomap Plus unit?
A: Yes, there is a plastic nut on the transducer unit and another on the extension to hook to the control head, so they are secured as opposed to a press fitting.

Q: Is this extension cable 8 feet long?
A: Yes, this extension cable is 8 feet long.

Q: Will this extension cable work with an Echomap UHD 73cv?
A: No, this extension cable is not compatible with an Echomap UHD 73cv as it does not use a 12-pin connector.
