Casio XJ-V2 WXGA Ultra Video Projector User Manual

Table of Contents

1. Introduction
2. Package Contents
3. Projector Setup
4. Connecting to Devices
5. Adjusting the Image
6. Maintenance and Care
7. Troubleshooting
8. Frequently Asked Questions

1. Introduction

Welcome to the Casio XJ-V2 WXGA Ultra Video Projector user manual. This guide will provide detailed instructions on how to set up, use, and maintain your projector for optimal performance. The Casio XJ-V2 is a high-quality, energy-efficient projector with a lamp-free laser and LED hybrid light source, providing up to 20,000 hours of use with minimal brightness degradation.

2. Package Contents

Before setting up your projector, ensure that you have received the following items in the package:

• Casio XJ-V2 Projector
• Power Cable
• Remote Control (with batteries)
• User Manual
• Projector Supercenter Lens Cloth

3. Projector Setup

1. Place the projector on a stable, flat surface, ensuring that there is adequate ventilation around the projector to prevent overheating.
2. Connect the power cable to the projector and an electrical outlet.
3. Press the "Power" button on the projector or the remote control to turn on the projector. The projector will reach full brightness in approximately five seconds.

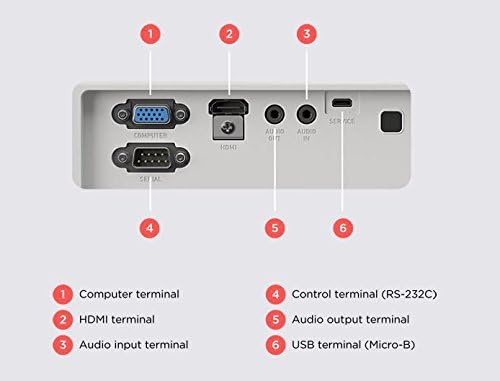

4. Connecting to Devices

To connect your projector to various devices, use the appropriate input ports on the projector:

• HDMI: Connect to Blu-ray players, gaming consoles, or computers with an HDMI cable.
• VGA: Connect to computers or other devices with a VGA cable.
• RS232: Connect to control systems or other devices with an RS232 cable.
• 3.5mm Audio In/Out: Connect to external speakers or audio systems with a 3.5mm audio cable.
• USB: Connect to USB devices for firmware updates or power supply.

5. Adjusting the Image

1. Adjust the projector's zoom and focus using the zoom and focus rings on the lens.
2. Use the remote control or the projector's control panel to adjust the keystone settings to correct any image distortion.
3. For optimal image quality, adjust the brightness, contrast, and color settings using the projector's on-screen menu.

6. Maintenance and Care

To ensure the longevity and optimal performance of your projector, follow these maintenance and care tips:

• Keep the projector's lens clean using the included Projector Supercenter Lens Cloth.
• Ensure proper ventilation around the projector to prevent overheating.
• Turn off the projector when not in use to conserve energy and prolong the life of the light source.

7. Troubleshooting

If you encounter any issues with your projector, refer to the following troubleshooting tips:

1. No image or poor image quality:
   • Ensure that the projector is connected to a device and the correct input source is selected.
   • Check the cables for any damage or loose connections.
   • Adjust the projector's focus, zoom, and keystone settings.
   • Ensure the projector's lens is clean.
2. No sound or poor sound quality:
   • Ensure that the audio source is connected to the projector or external speakers.
   • Check the audio cables for any damage or loose connections.
   • Adjust the volume settings on the projector or the connected device.
3. Remote control not working:
   • Ensure that the batteries in the remote control are properly inserted and not depleted.
   • Ensure that there are no obstructions between the remote control and the projector's IR receiver.

8. Frequently Asked Questions

What is the native resolution of the Casio XJ-V2 projector?

The native resolution of the Casio XJ-V2 projector is XGA (1024x768).

How long does the lamp-free light source last?

The lamp-free laser and LED hybrid light source in the Casio XJ-V2 projector has an estimated life of up to 20,000 hours.

Can I use the Casio XJ-V2 projector for continuous use applications like digital signage?

Yes, the Casio XJ-V2 projector can be used for continuous use applications due to its special Casio light technology.

Does the Casio XJ-V2 projector come with a warranty?

Yes, the Casio XJ-V2 projector comes with a 3-year parts and labor warranty and a 5-year or 10,000-hour light source warranty.

What is the maximum image size the Casio XJ-V2 projector can display?

The Casio XJ-V2 projector can display an image size of up to 300 inches.

Q: What is the lamp type and life of the Casio XJ-V2 projector?
A: The Casio XJ-V2 projector uses a Lamp Free Laser & LED Hybrid Light Source with a service life of up to 20,000 hours.

Q: What is the brightness and resolution of the Casio XJ-V2 projector?
A: The Casio XJ-V2 projector has a brightness of 3000 ANSI lumens and a resolution of 1024 x 768 pixels.

Q: Is the Casio XJ-V2 projector suitable for standard screen displays?
A: Yes, the Casio XJ-V2 projector has a 4:3 aspect ratio which offers the perfect resolution capability for standard screen displays.

Q: Is the Casio XJ-V2 projector portable?
A: Yes, the Casio XJ-V2 projector is stylish and compact, making it easily portable.

Q: Does the Casio XJ-V2 projector have a keystone adjustment?
A: Yes, the Casio XJ-V2 projector has a keystone adjustment feature which can be accessed through the remote control.

Q: What is the warranty on the Casio XJ-V2 projector?
A: The Casio XJ-V2 projector comes with a 3-year parts and labor warranty and a 5-year or 10,000-hour light source warranty.

Q: Is the Casio XJ-V2 projector suitable for home theater use?
A: Yes, the Casio XJ-V2 projector supports 16:9, 16:10, and 4:3 aspect ratios, making it suitable for home theater use.

Q: Can the Casio XJ-V2 projector be ceiling mounted?
A: Yes, the Casio XJ-V2 projector can be ceiling mounted.

Q: What is the weight and dimensions of the Casio XJ-V2 projector?
A: The Casio XJ-V2 projector weighs 8 pounds and has dimensions of 10.6 x 23.5 x 11.8 inches.

Q: Does the Casio XJ-V2 projector come with a lens cloth?
A: Yes, the Casio XJ-V2 projector comes with a Projector Supercenter microfiber lens cloth included with each purchase.
