Samson Expedition XP106wDE Rechargeable Portable PA System User Manual

Table of Contents

1. Introduction
2. Package Contents
3. Setting Up Your PA System
4. Using the Headset Microphone
5. Connecting to Bluetooth Devices
6. Troubleshooting Tips
7. Frequently Asked Questions

1. Introduction

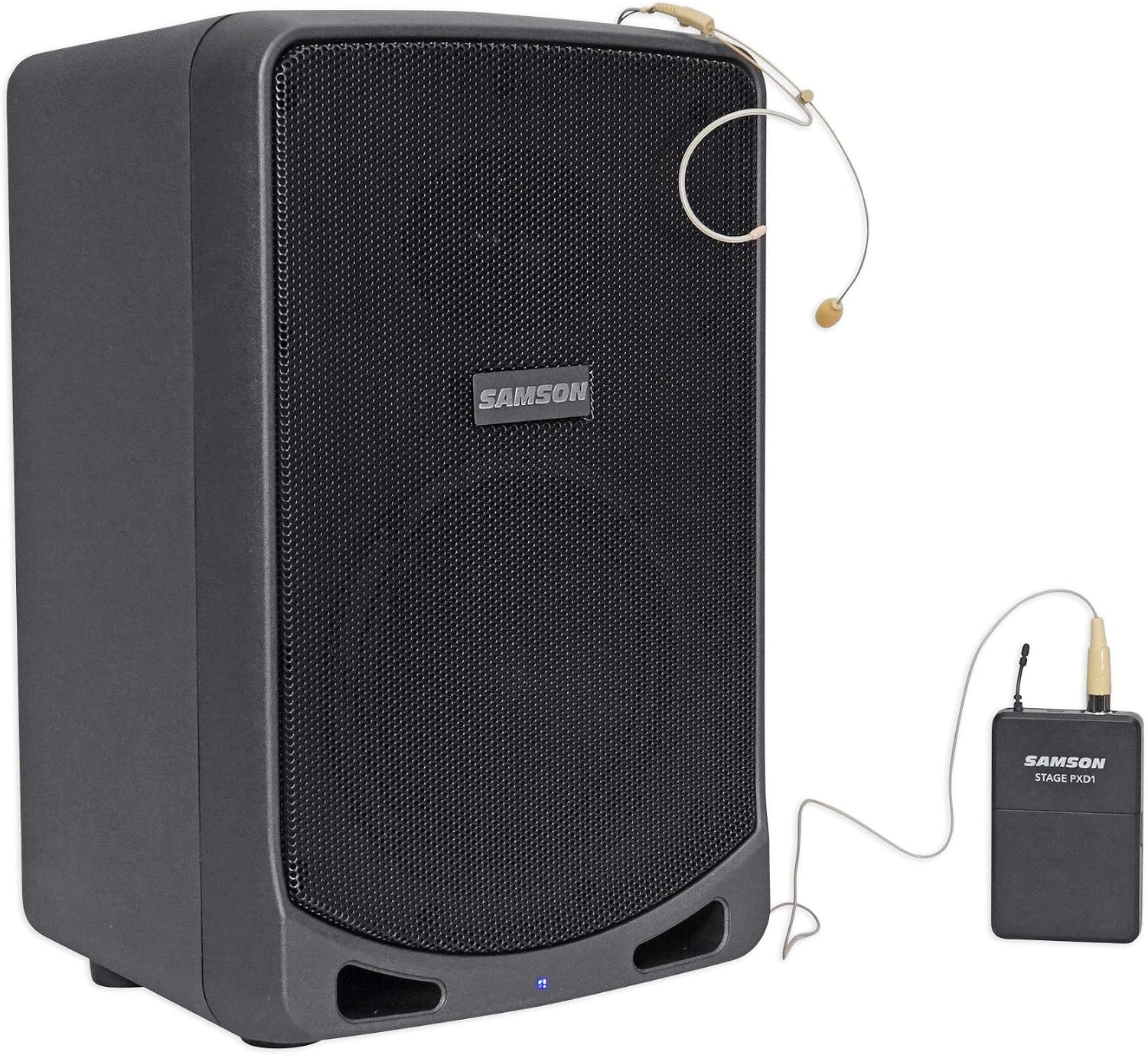

Thank you for purchasing the Samson Expedition XP106wDE Rechargeable Portable PA System. This all-in-one, lightweight portable PA system is perfect for classrooms, conferences, tour groups, parties, and more. With its rechargeable battery, Bluetooth connectivity, and wireless headset microphone, you'll enjoy a hassle-free audio experience.

2. Package Contents

• Samson Expedition XP106wDE Portable PA System
• Stage XPD1 USB Digital Wireless Headset System (belt pack and DE5 double ear headset)
• AC power adapter
• User manual

3. Setting Up Your PA System

1. Place the PA system on a flat, stable surface or mount it on a speaker stand using the 1 3/8" speaker stand mount.
2. Connect the AC power adapter to the PA system's power input and plug it into an electrical outlet.
3. Turn on the PA system by pressing the power button located on the rear panel.
4. Adjust the volume levels of each input using the corresponding knobs on the front panel.

4. Using the Headset Microphone

1. Insert the XPD1 Headset USB stick receiver into the PA system's USB Wireless port.
2. Turn on the belt pack transmitter by pressing the power button.
3. Adjust the headset microphone for a comfortable fit, ensuring the microphone is positioned close to your mouth.
4. Use the gain control in the belt pack transmitter's battery compartment to adjust the microphone's sensitivity.

5. Connecting to Bluetooth Devices

1. Press the Bluetooth button on the PA system's front panel to enable Bluetooth mode.
2. On your Bluetooth-enabled device, search for available Bluetooth devices and select "Samson XP106wDE" from the list.
3. Once connected, you can play music from your device wirelessly through the PA system.

6. Troubleshooting Tips

• If the PA system is not turning on, ensure the AC power adapter is properly connected and the electrical outlet is functioning.
• If the headset microphone is not working, check that the USB stick receiver is inserted correctly and the belt pack transmitter is powered on.
• If you're experiencing feedback, make sure the microphone is positioned correctly and not too close to the speaker.
• If you're having difficulty connecting to Bluetooth devices, ensure Bluetooth mode is enabled on the PA system and your device is within range.

7. Frequently Asked Questions

Q: How long does the rechargeable battery last?

A: The internal rechargeable battery can last for up to 20 hours of continuous use.

Q: Can I connect multiple speakers together?

A: Yes, you can use the line output to cascade multiple systems together for expanded sound coverage.

Q: Can I use this PA system outdoors?

A: Yes, the Samson Expedition XP106wDE is suitable for both indoor and outdoor use.

Q: How do I charge the battery?

A: Connect the AC power adapter to the PA system and plug it into an electrical outlet. The battery will charge while the system is connected to power.

Q: Can I connect a wired microphone to this PA system?

A: Yes, you can connect a wired microphone using the XLR-1/4" combo input on the front panel.

Q: What are the dimensions of the Samson Expedition XP106wDE Rechargeable Portable PA System?
A: The dimensions of the speaker are 21 x 14 x 14 inches.

Q: What is the weight of the Samson Expedition XP106wDE Rechargeable Portable PA System?
A: The weight of the speaker is 19.8 pounds.

Q: Does the Samson Expedition XP106wDE Rechargeable Portable PA System have Bluetooth connectivity?
A: Yes, it has Bluetooth connectivity to connect wireless music sources.

Q: What is included with the Samson Expedition XP106wDE Rechargeable Portable PA System?
A: The system includes a Stage XPD1 USB Digital Wireless Headset System with a belt pack and DE5 double ear headset (100' operating range).

Q: Can the XPD2 mic work with this system?
A: Yes, it can.

Q: Can the mic be used without the speaker for streaming or videos?
A: Yes, the XPD wireless microphone system can be connected to the USB port on a computer and be used for streaming videos.

Q: Can the XP40iw wireless microphone be used with this system?
A: No, it cannot. The XP106 does not have an integrated UHF receiver. The mic you are referencing requires a receiver so you would have to buy a separate UHF receiver to get this mic work with this system.

Q: Is there a wireless hearing aid to connect to this system?
A: No, there isn't. The system only has a Bluetooth input and not an output. It does have a 1/4" line out jack. You can plug in a wireless transmitter into the 1/4" jack so that your client can receive audio.

Q: What type of battery is used so I can buy a spare?
A: The body pack takes two AA batteries, and you should never have to deal with the battery inside the speaker itself.

Q: What is the purpose of the Music/Speech switch on the Samson Expedition XP106wDE Rechargeable Portable PA System?
A: The Music/Speech switch lets you optimize the output EQ for speech or music playback.

Q: Can this system be used for teaching in a large, noisy classroom?
A: Yes, it is great for teachers in a noisy large classroom as it is loud without feedback noise and comes with a comfortable headphone microphone.
