Thule EasyFold XT 2 User Manual

Product Overview

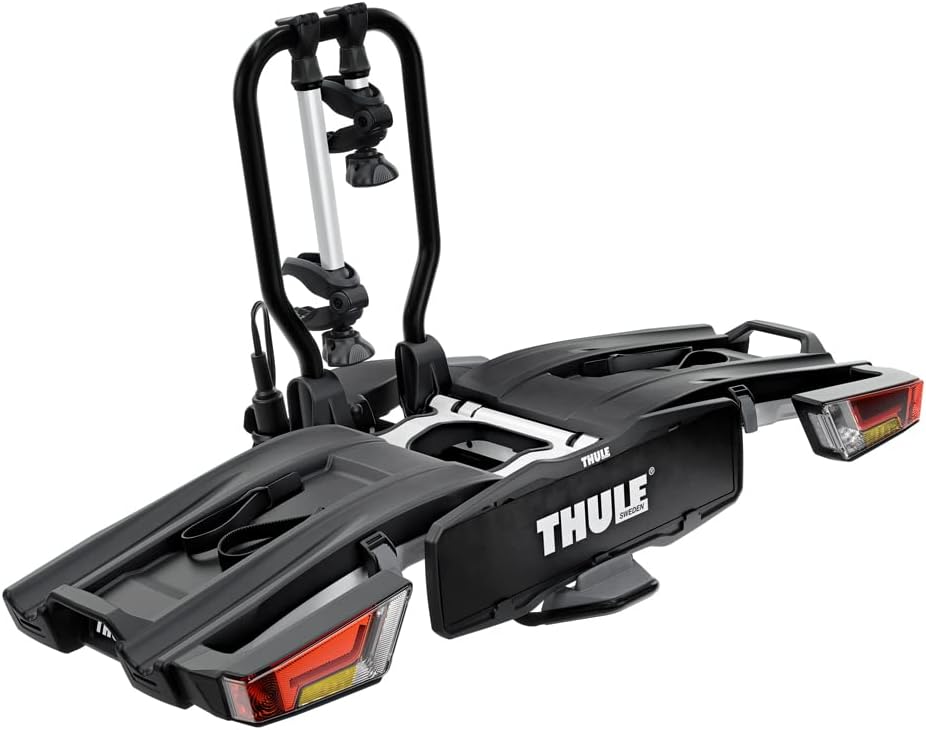

The Thule EasyFold XT 2 is a fully foldable, compact, and easy-to-use bike carrier designed for all types of bikes, including electric bikes and mountain bikes. It features a convenient tilt function for easy trunk access, adjustable micro-clip buckles for quick wheel fastening, and increased distance between wheel holders to accommodate large bikes.

Specifications

• Brand: Thule
• Model Number: 933100
• Weight: 20.3 kg
• Dimensions: 63 x 123 x 68 cm
• Load Capacity: 60 kg
• Mounting Type: Hitch-mounted
• Color: Black/Aluminium
• Safety Performance: TÜV certified

Installation

1. Slide the carrier onto the tow ball of your vehicle and press down the lever to secure it in place.
2. Adjust the tightening knob to ensure a snug fit on the tow ball.
3. Attach your license plate to the built-in holder without the need for drilling or additional tools.
4. Unfold the bike carrier by pressing the release buttons and lowering the platform.

Mounting Bikes

1. Open the wheel straps and arm locks.
2. Load the bikes onto the carrier, ensuring the heaviest bike is closest to the vehicle.
3. Secure the bikes by closing the arm locks onto the frames. Adjust the position as necessary to avoid contact between bikes.
4. Fasten the wheels with the straps, ensuring they are tight and secure.

Tilting the Carrier

1. To access your vehicle's trunk without removing the bikes, press the foot pedal located at the base of the carrier.
2. Gently tilt the carrier away from the vehicle.

Folding and Storage

1. Remove the bikes and open the arm locks.
2. Press the release buttons and lift the platform to a vertical position.
3. Fold the carrier arms and secure them in place.
4. Use the integrated handles to remove the carrier from the tow ball and store it in a safe place.

Troubleshooting Tips

Carrier is Loose on Tow Ball

Ensure the tightening knob is fully adjusted to secure the carrier to the tow ball. Re-tighten if necessary.

Difficulty in Tilting Carrier

Check for any obstructions and ensure the foot pedal is fully pressed. Apply gentle force to tilt the carrier.

Bikes are Not Secure

Re-adjust the arm locks to ensure a firm grip on the bike frames and re-tighten the wheel straps.

Carrier Arms Won't Lock

Make sure the arms are fully extended and aligned correctly before attempting to lock them in place.

FAQs

Can the Thule EasyFold XT 2 carry electric bikes?

Yes, the Thule EasyFold XT 2 is designed to carry electric bikes as well as other types of bikes, with a load capacity of 60 kg.

Is the bike carrier easy to store?

Yes, the carrier is fully foldable for easy storage and can be stored like a suitcase.

Do I need tools to mount the carrier or the bikes?

No, the Thule EasyFold XT 2 is designed for easy installation and use without the need for tools.

What is the maximum permitted speed when using this carrier?

The carrier can be used at speeds up to 130 km/h, as specified in the product characteristics.

Does the carrier come with a ramp for loading bikes?

The ramp is an optional accessory and is not included with the carrier. It can be purchased separately for easier loading of heavy bikes.

Is there a cover available for the Thule EasyFold XT 2?

Yes, there is a separate storage cover available to protect the carrier when not in use.

What should I do if a part of the carrier arrives damaged?

Contact the retailer or Thule's customer service for assistance with replacement parts or warranty claims.

Can I open my vehicle's trunk with the bikes mounted?

Yes, the carrier has a tilt function that allows you to access the trunk without removing the bikes.

Is an adapter required for the electrical connection?

The Thule EasyFold XT 2 comes with a 13-pin connector. If your vehicle has a 7-pin socket, you will need an adapter.

Q: What is the Thule EasyFold XT 2?
A: The Thule EasyFold XT 2 is a foldable bike carrier that can be mounted on a hitch ball. It is designed to provide easy access to the trunk even when bikes are attached.

Q: What are the features of the Thule EasyFold XT 2?
A: The Thule EasyFold XT 2 has several features including:
- Convenient tilting pedal for easy access to the trunk with bikes attached
- Adjustable micro-clip buckles with tightening straps for quick wheel attachment and transportation of large-sized bikes
- Increased distance between wheel holders to accommodate bikes with wide rims
- Fully foldable design for easy installation, use, and storage
- High loading capacity suitable for electric bikes and mountain bikes

Q: What are the specifications of the Thule EasyFold XT 2?
A: The specifications of the Thule EasyFold XT 2 are as follows:
- Brand: Thule
- Model Number: ‎933100
- Category: Auto et Moto > Transport et rangement > Galeries de toit et coffres > Porte-vélos
- Manufacturer: ‎Thule GmbH
- Weight of the item: ‎20.3 Kilograms
- Product dimensions (L x W x H): ‎63 x 123 x 68 cm; 20.34 kilograms
- Item model number: ‎933100
- Manufacturer Serial Number: ‎933100
- Safety performance: TÜV certified
- Construction: Diagonal

Q: What is the maximum load capacity of the Thule EasyFold XT 2?
A: The Thule EasyFold XT 2 has a maximum load capacity of 60 kilograms.

Q: What type of fixation does the Thule EasyFold XT 2 have?
A: The Thule EasyFold XT 2 uses strap fixation.

Q: What is the color of the Thule EasyFold XT 2?
A: The Thule EasyFold XT 2 is available in Black/Aluminium color.

Q: When was the Thule EasyFold XT 2 first available?
A: The Thule EasyFold XT 2 was first available on December 1, 2016.

Q: What are some customer reviews of the Thule EasyFold XT 2?
A: Here are some customer reviews of the Thule EasyFold XT 2:
- "Magic product. When you want something of quality, you have to pay for it. This product is worth every penny. It can easily support two electric bikes without any issues. Easy installation, takes only 30 seconds, and folds like a suitcase in no time. Highly recommended."
- "Awesome. Perfect for my Haibike on a pickup truck! Solid, easy to install, and practical!"
- "Indispensable. So many positive points for this indispensable product for carrying our two electric bikes. Very easy to install, fold, and store. It's expensive, but it seems very reliable."
- "Expensive but well-designed and secure... Delivery had a little confusion in tracking, but overall, the product arrived in good condition. No need to assemble anything, just attach the license plate. The standard size of the plate fits perfectly with the provided fixings. I put some silicone behind the plate to stick it a bit and avoid potential vibration noises. Installation on the car's hitch is very easy. Adjust the knob to tighten it on the hitch. Attaching the bikes is also very easy. Tilting to access the trunk is also very simple. A beautiful product that is worth its weight in gold. This bike carrier can be used up to 130 km/h (specified in the specifications). Tranquility and safety come at a price."
- "A good product, but a few flaws. As usual with Thule, it is a super quality product with the price to match. But there are still a few small details missing for the 5th star. Pros: - Great quality, finish, it doesn't move on the hitch, it's a bike carrier that inspires confidence. - The folding function allows it to fit in a small car trunk (for me, it fits perfectly in the 2021 Sandero). But be aware that it is still a bike carrier and it takes up quite a bit of space, but it's compact and cubic enough for easy storage. The cover (separate accessory) prevents the trunk from getting dirty if the bike carrier is dirty/wet. The fact that it folds also facilitates storage, transport, and assembly. - Unlike other older Thule bike carriers, the wheel straps are long enough, even for large bikes (large 29" mountain bikes with 2.6 tires, no problem). Thule sells longer straps as an option for fat bikes. - No problem putting large bikes on it, from 29" mountain bikes to bikes with wide handlebars, it fits. Cons: - The price, obviously. But well, this folding function is really practical. - Frame attachment. Unfortunately, Thule has not yet worked miracles in this area. Especially on this bike carrier. The upright that holds the clamping arms could be higher; it would be much easier to attach the bikes. This is the case with the 3-bike version. And with modern bikes, frames are becoming increasingly difficult to clamp (especially on the lower tube of e-bikes, for example). This is what cost them the 5th star in my rating."

Q: Is there any warranty or customer support for the Thule EasyFold XT 2?
A: There is no information provided about warranty or customer support for the Thule EasyFold XT 2. Please refer to the manufacturer or seller for specific details.
