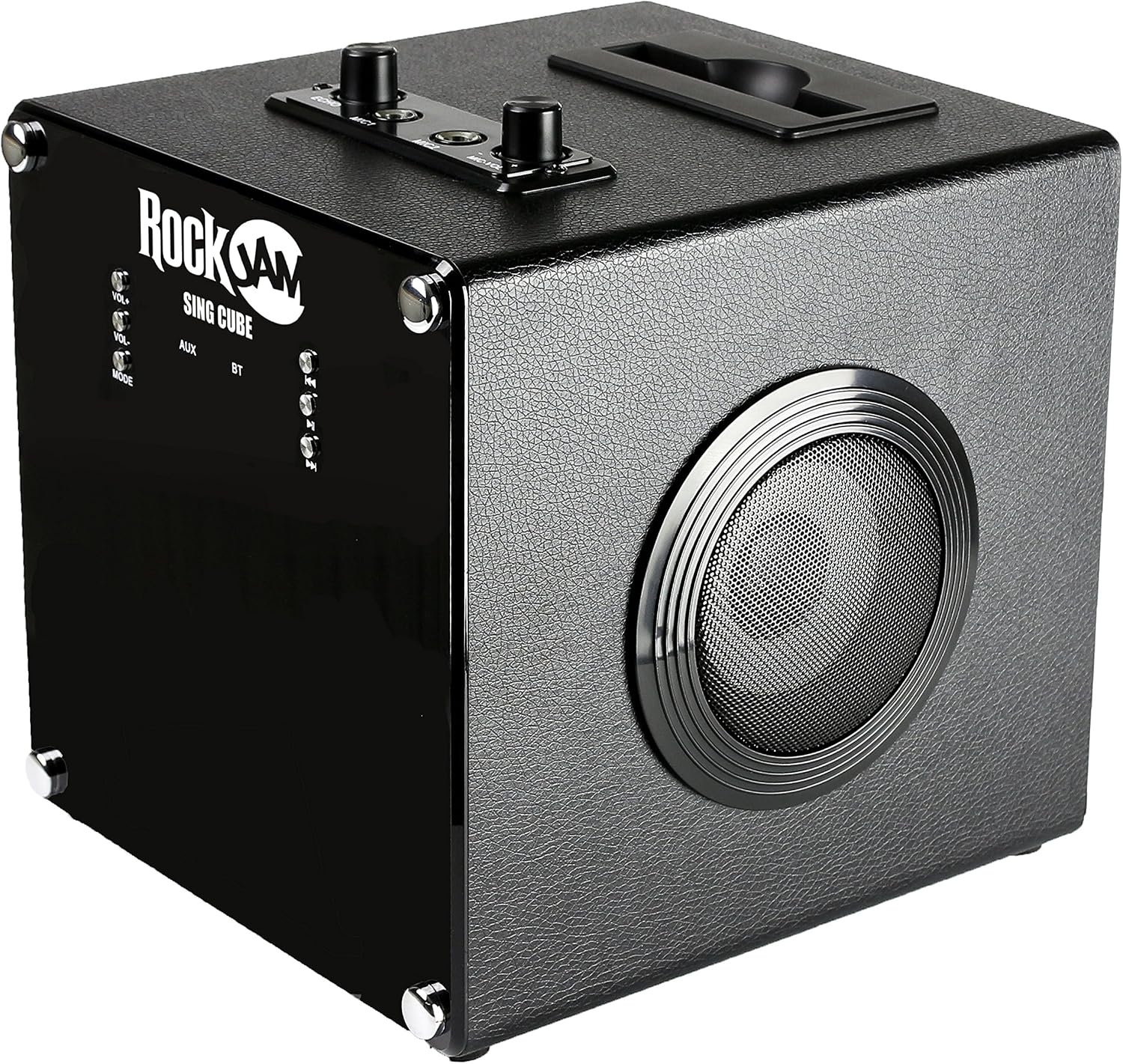

RockJam RJSC01-BK Singcube Rechargeable Bluetooth Karaoke Machine User Manual

Table of Contents

1. Package Contents
2. Setting Up Your Karaoke Machine
3. Connecting to Bluetooth or Auxiliary Devices
4. Using the Microphones
5. Adjusting Sound Effects and Volume
6. Light Show Feature
7. Charging the Singcube
8. Troubleshooting Tips
9. Frequently Asked Questions

1. Package Contents

• RockJam RJSC01-BK Singcube Karaoke Machine
• Two Karaoke Microphones
• Charging Cable

2. Setting Up Your Karaoke Machine

1. Place the Singcube on a flat surface.
2. Connect the two included microphones to the microphone input ports on the front of the Singcube.

3. Connecting to Bluetooth or Auxiliary Devices

1. Turn on the Singcube by pressing the power button.
2. To connect via Bluetooth, enable Bluetooth on your mobile device and search for available devices. Select "RockJam Singcube" from the list of devices.
3. To connect via the Auxiliary port, use a 3.5mm audio cable (not included) to connect your mobile device to the Singcube's Auxiliary input port.
4. Once connected, play music from your mobile device to start the karaoke experience.

4. Using the Microphones

1. Hold the microphone at a comfortable distance from your mouth.
2. Adjust the microphone volume using the volume control knobs on the front of the Singcube.
3. Sing along with the music playing from your connected device.

5. Adjusting Sound Effects and Volume

1. Use the volume control knobs on the front of the Singcube to adjust the volume of the music and microphones.
2. Adjust the echo effect by turning the echo control knob on the front of the Singcube.

6. Light Show Feature

1. Press the light show button on the front of the Singcube to activate the light show feature.
2. The lights will move in time with the music being played.
3. Press the light show button again to turn off the light show feature.

7. Charging the Singcube

1. Connect the included charging cable to the charging port on the back of the Singcube.
2. Plug the other end of the charging cable into a USB power source (USB power adapter not included).
3. Charge the Singcube until the battery indicator shows a full charge.

8. Troubleshooting Tips

• If the Singcube is not turning on, ensure it is charged and the power button is pressed.
• If the Bluetooth connection is unstable, move the mobile device closer to the Singcube and ensure there are no obstructions between the devices.
• If the microphones are not producing sound, check the microphone connections and ensure the volume is turned up.
• If the sound quality is poor, adjust the volume and echo settings on the Singcube, and ensure the connected device is playing high-quality audio.

9. Frequently Asked Questions

Q: How long does the battery last on a full charge?

A: The battery lasts approximately 3 hours on a full charge.

Q: Does the Singcube come with a power adapter for charging?

A: No, the Singcube only includes a USB charging cable. You will need to use your own USB power adapter to charge the device.

Q: Can I connect the Singcube to my TV for displaying lyrics?

A: The Singcube does not have a direct connection to a TV. You can use your mobile device to display lyrics while connected to the Singcube for audio.

Q: Does the Singcube have built-in songs or music?

A: No, the Singcube does not have built-in songs or music. You will need to connect a mobile device via Bluetooth or the Auxiliary port to play music.

Q: What are the connectivity options for the RockJam RJSC01-BK Singcube?
A: The Singcube can be connected to mobile devices via Bluetooth or the Auxiliary port.

Q: Does the Singcube have a light show feature?
A: Yes, the Singcube has a high-powered light show that moves in time with the music and can be turned on or off.

Q: How powerful are the speakers on the Singcube?
A: The Singcube has two 5Watt speakers that are powerful enough to fill a space both inside and outside of the house.

Q: Is the Singcube portable?
A: Yes, the Singcube is portable as it comes with an integrated rechargeable battery, allowing you to take it anywhere.

Q: Does the Singcube come with microphones?
A: Yes, the Singcube comes complete with two karaoke microphones, so there is no need to buy any extras.

Q: What are the dimensions and weight of the Singcube?
A: The Singcube weighs 3.42 pounds and has dimensions of 7.7 x 6.3 x 9.2 inches.

Q: What devices are compatible with the Singcube?
A: The Singcube is compatible with radios and smartphones.

Q: Does the Singcube have a special feature?
A: Yes, the Singcube has a rechargeable battery as a special feature.

Q: What is included in the package when purchasing a Singcube?
A: The package includes a Bluetooth rechargeable karaoke machine, charging cable, and two karaoke microphones.

Q: What connectivity technology does the Singcube use?
A: The Singcube uses Bluetooth and Auxiliary connectivity technology.

Q: Is there a remote control for the Singcube?
A: No, there is no remote control for the Singcube. All buttons have to be operated on the machine itself.

Q: How long does the Singcube battery last?
A: The battery lasts for approximately 3 hours.

Q: Does the Singcube come with a power plug?
A: No, the Singcube comes with a USB cable for charging, but no actual plug for the mains is included.
