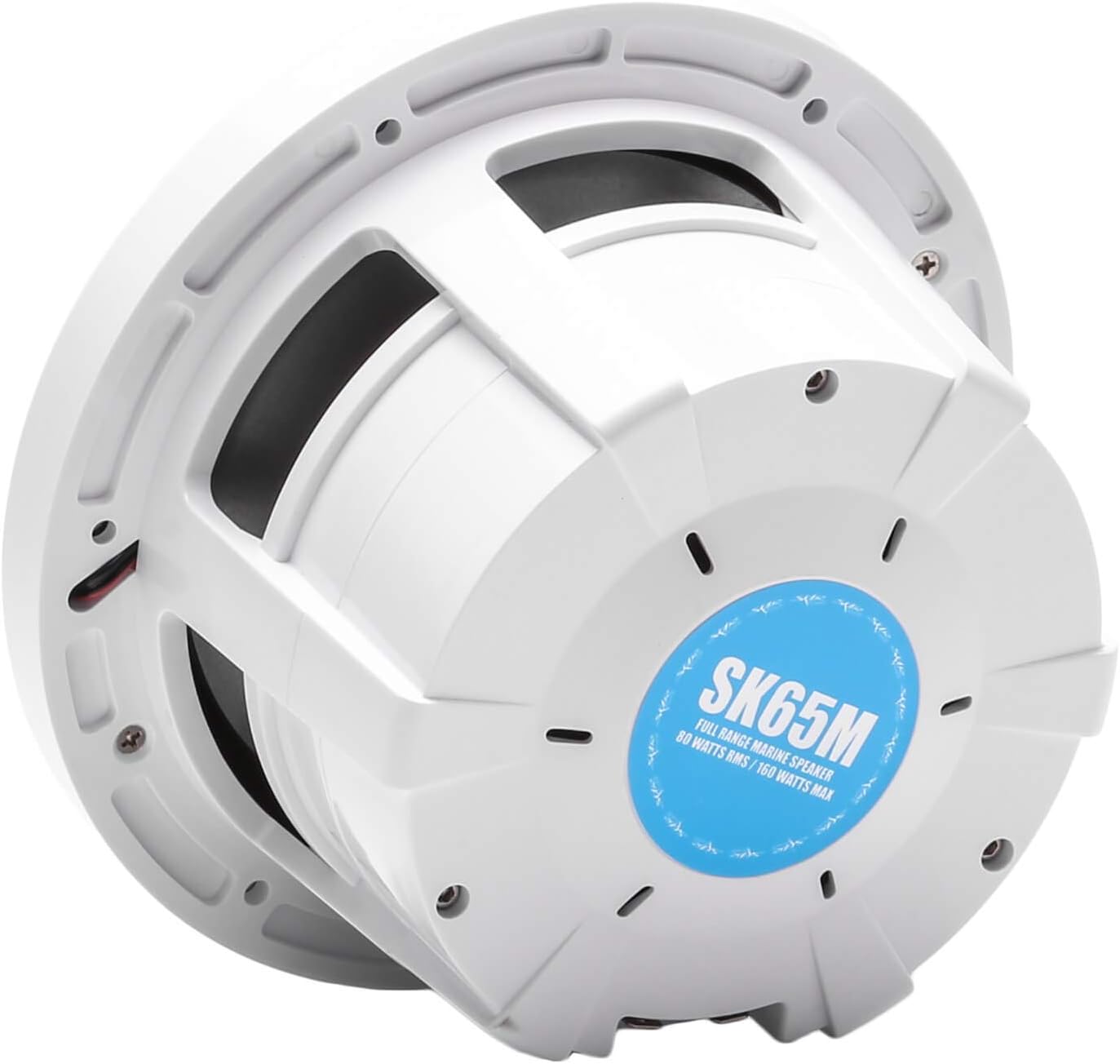

Skar Audio SK65M 6.5" 2-Way Marine Full Range 320 Watt Coaxial Speakers User Manual

Table of Contents

1. Package Contents
2. Installation
3. Connecting the Speakers
4. Troubleshooting Tips
5. Frequently Asked Questions

1. Package Contents

• 2 x Skar Audio SK65M 6.5" Marine Speakers
• Mounting Hardware
• Mounting Templates

2. Installation

1. Choose the location where you want to install the speakers. Make sure the mounting surface is strong enough to support the weight of the speakers and that there is enough space behind the mounting surface for the speaker's depth.
2. Use the provided mounting template to trace the cutout diameter (5.75") and bolt hole circle diameter (6.10") on the mounting surface.
3. Carefully cut out the traced circle using a jigsaw or another appropriate tool. Make sure to wear proper safety equipment while cutting.
4. Drill the bolt holes using the template as a guide.
5. Place the speaker into the cutout and align the bolt holes. Secure the speaker using the provided mounting hardware.

3. Connecting the Speakers

1. Connect the speaker wires to your amplifier or receiver. Make sure to match the positive (+) terminal on the speaker to the positive (+) terminal on the amplifier, and the negative (-) terminal on the speaker to the negative (-) terminal on the amplifier.
2. Ensure that the connections are secure and that there are no loose wires or strands that could cause a short circuit.
3. Test the speakers by playing music at a low volume and gradually increasing the volume to ensure proper operation and sound quality.

4. Troubleshooting Tips

• If there is no sound coming from the speakers, check the connections between the speakers and the amplifier. Make sure the wires are properly connected and that there are no loose strands or short circuits.
• If the sound is distorted or unclear, check the speaker connections and ensure that the positive and negative terminals are correctly matched.
• If the speakers are not producing enough bass, try adjusting the amplifier's crossover settings or adding a subwoofer to your system.
• If the speakers are not loud enough, consider upgrading to a more powerful amplifier or adjusting the amplifier's gain settings.

5. Frequently Asked Questions

Q: Can these speakers be used without an amplifier?

A: While the Skar Audio SK65M speakers can be connected directly to a receiver, using an amplifier will significantly improve their performance and sound quality. It is highly recommended to use an amplifier to get the best results.

Q: Are these speakers waterproof?

A: The Skar Audio SK65M speakers are marine-grade and designed to withstand exposure to water and harsh environments. However, it is recommended to protect them from direct exposure to water whenever possible to ensure their longevity.

Q: What is the recommended power for these speakers?

A: The Skar Audio SK65M speakers have a peak power of 320 watts (pair) and an RMS power of 160 watts (pair). It is recommended to use an amplifier that can provide power within this range for optimal performance.

Q: Can these speakers be used in a car audio system?

A: Yes, the Skar Audio SK65M speakers can be used in car audio systems. However, they are specifically designed for marine applications and may not fit in all car speaker locations without modifications.

Q: Do these speakers come with a warranty?

A: Please refer to the manufacturer's warranty information for details on coverage and how to make a warranty claim.

Q: What are the mounting specifications for the Skar Audio SK65M 6.5" marine speakers?
A: The mounting depth is 3.25", the cutout diameter is 5.75", and the bolt hole circle diameter is 6.10". The magnet cover is 5.30", the overall height is 4.25", and the outside diameter is 7.00".

Q: What are the specifications of these marine speakers?
A: These speakers are 6.5" marine grade 2-way component speakers, sold as a pair. They have a peak power of 320 watts (pair) or 160 watts (each) and an RMS power of 160 watts (pair) or 80 watts (each). They have an impedance of 4 Ohm, a 1.2" SV voice coil, and a frequency response of 57 Hz - 20 kHz. The sensitivity is 88 dB.

Q: Are these speakers waterproof?
A: Yes, these speakers are waterproof.

Q: Can the speaker grills be removed?
A: No, the speaker grills cannot be removed.

Q: What is the weight and dimensions of this product?
A: The weight of this product is 8.91 pounds and the dimensions are 7 x 7 x 4.25 inches.

Q: Are these speakers made in China?
A: Yes, these speakers are made in China.

Q: Can different color covers be purchased for these speakers?
A: No, different color covers cannot be purchased for these speakers.

Q: How do these speakers compare to JL Audio marine speakers in terms of sound quality?
A: According to one customer review, these Skar Audio marine speakers sound basically just as good as JL Audio marine speakers at least to their discriminating ears.

Q: What is the diameter of the mounting hole for these speakers?
A: The diameter of the mounting hole is 5.75".

Q: Is the Skar 500 watt amp enough for four of these speakers, or should I get the 1,000 watt amp?
A: According to one customer review, they are driving a pair with a 200w amp and they get very loud. They recommend starting with the 500 watt amp.

Q: Can these speakers fit in a 6.5 inch wakeboard tower can?
A: According to a customer review, the cutout diameter for these speakers is 5.75".
