AW Classic Bluetooth Record Player System User Manual

Table of Contents

1. Getting Started
2. Playing Vinyl Records
3. Bluetooth Function
4. Playing CDs, Cassettes, and MP3s
5. USB/SD Recording and Cassette Recording
6. AM/FM Stereo Radio
7. Troubleshooting Tips
8. FAQs

1. Getting Started

Before using the AW Classic Bluetooth Record Player System, please ensure that you have all necessary components, including the main unit, two external stereo speakers, a remote control, and required cables. Place the record player on a stable, flat surface and connect the speakers to the main unit using the provided cables. Connect the record player to a power source and turn it on using the power button.

2. Playing Vinyl Records

1. Open the turntable cover and place the desired vinyl record (7", 10", or 12") on the turntable platter.
2. Select the appropriate playing speed (33, 45, or 78 RPM) using the speed selector switch.
3. Unlock the tonearm by gently sliding the lock to the side and carefully lifting the tonearm.
4. Position the tonearm over the record's starting groove and gently lower the tonearm onto the record.
5. Adjust the volume using the volume control knob on the main unit or the remote control.
6. To stop playing, carefully lift the tonearm and return it to its resting position. Lock the tonearm in place and turn off the turntable if desired.

3. Bluetooth Function

1. Turn on the Bluetooth function on your smartphone, tablet, or other Bluetooth-enabled device.
2. Select the "Bluetooth" input mode on the record player using the mode selector button.
3. Search for available Bluetooth devices on your device and select the AW Classic Bluetooth Record Player System to pair.
4. Once connected, play your favorite digital music from your device, and adjust the volume using the volume control knob on the main unit or the remote control.

4. Playing CDs, Cassettes, and MP3s

1. To play CDs, insert the CD into the CD slot on the front of the main unit and select the "CD" input mode using the mode selector button. Use the control buttons on the main unit or the remote control to play, pause, and skip tracks.
2. To play cassettes, insert the cassette tape into the cassette slot on the side of the main unit and select the "Cassette" input mode using the mode selector button. Use the control buttons on the main unit or the remote control to play, pause, and fast-forward or rewind the tape.
3. To play MP3s, connect a USB disk, SD card, or other external device to the appropriate slot on the main unit and select the "USB/SD" input mode using the mode selector button. Use the control buttons on the main unit or the remote control to play, pause, and skip tracks.

5. USB/SD Recording and Cassette Recording

1. For direct USB/SD recording, insert a USB disk or SD card into the appropriate slot on the main unit.
2. Select the desired input source (vinyl record, radio, CD, SD, USB, or AUX) using the mode selector button.
3. Press the "Record" button on the main unit or the remote control to start recording. Press "Stop" to end the recording.
4. For cassette recording, insert a recordable cassette tape into the cassette slot on the side of the main unit.
5. Select the desired input source (vinyl record, radio, CD, SD, USB, or AUX) using the mode selector button.
6. Press the "Record" button on the main unit or the remote control to start recording. Press "Stop" to end the recording.

6. AM/FM Stereo Radio

1. Select the "Radio" input mode using the mode selector button.
2. Choose between AM and FM radio bands using the band selector switch.
3. Tune in to your desired radio station using the tuning knob.
4. Adjust the volume using the volume control knob on the main unit or the remote control.

7. Troubleshooting Tips

• If the record player does not turn on, check that it is properly connected to a power source and that the power button is pressed.
• If there is no sound or the sound is distorted, ensure that the speakers are properly connected and that the volume is set to an appropriate level.
• If the Bluetooth function does not work, check that your device's Bluetooth is enabled and that it is within range of the record player.
• If the CD, cassette, or MP3 playback does not work, check that the media is properly inserted and that the correct input mode is selected.
• If the radio reception is poor, try adjusting the position of the record player or the antenna to improve the signal.

8. FAQs

Q: Can I connect the record player to external speakers or a sound system?

A: Yes, the AW Classic Bluetooth Record Player System can be connected to external speakers or a sound system using the appropriate cables.

Q: What types of vinyl records can be played on this record player?

A: The record player can play 7", 10", and 12" vinyl records with optional playing speeds of 33, 45, and 78 RPM.

Q: Can I record from a vinyl record directly to a USB or SD card?

A: Yes, you can record from a vinyl record directly to a USB disk or SD card using the USB/SD recording function.

Q: How do I pair my Bluetooth-enabled device with the record player?

A: Turn on the Bluetooth function on your device, select the "Bluetooth" input mode on the record player, and search for available Bluetooth devices on your device. Select the AW Classic Bluetooth Record Player System to pair.

Q: Can I use the remote control to operate all functions of the record player?

A: Yes, the remote control can be used to operate most functions of the record player, including playing vinyl records, CDs, cassettes, and MP3s, as well as adjusting the volume and selecting input modes.

Product: AW Classic Bluetooth Record Player System w/ 2 Speakers 3-Speed Stereo Turntable System CD/Cassette Player AM/FM - Electronics

Q: What types of vinyl records can this record player play?
A: This record player can play 7", 10", and 12" vinyl records with optional playing speeds of 33/45/78RPM.

Q: Can I play music wirelessly from my smart phone or tablet with this record player?
A: Yes, this record player has a Bluetooth function that allows you to wirelessly play your favorite digital music from your smart phone, tablet, or other devices with Bluetooth.

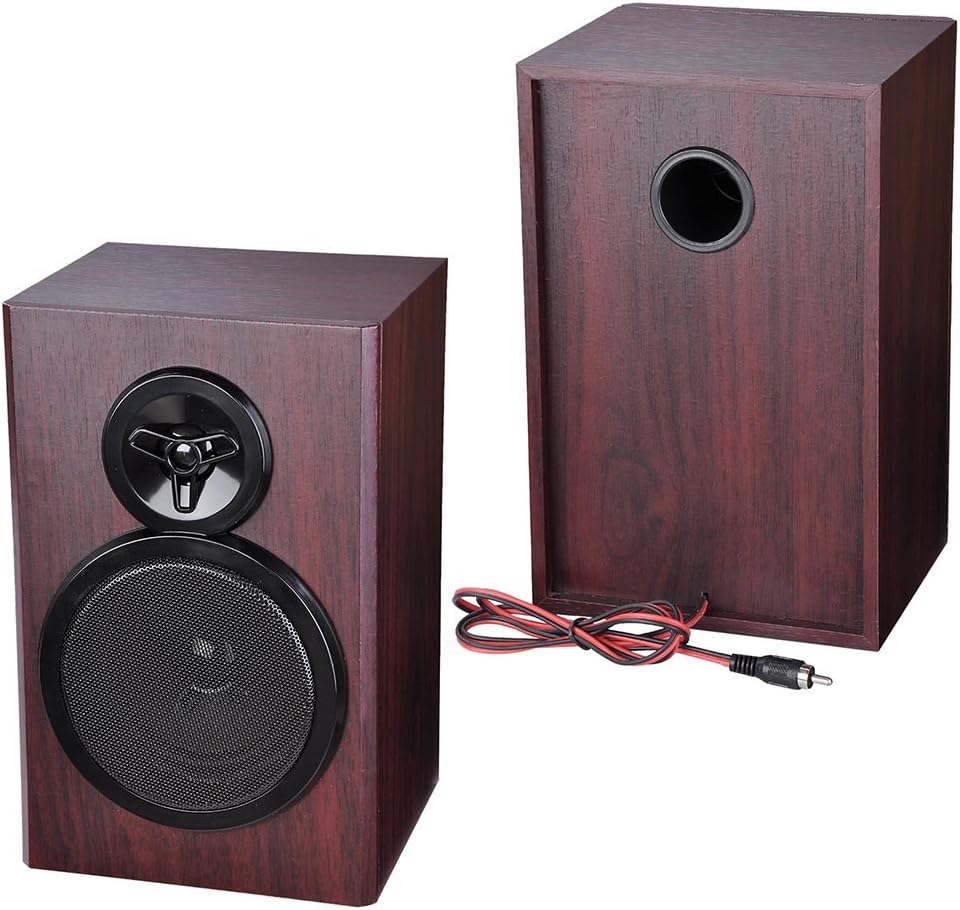

Q: Does this record player come with external speakers?
A: Yes, this record player comes with 2 external stereo speakers.

Q: Does this record player come with a remote control?
A: Yes, this record player comes with a remote control.

Q: Can I play CDs, cassettes, and MP3s with this record player?
A: Yes, you can play CDs, cassettes, and MP3s through USB disk, SD card, or other external devices.

Q: Can I record directly to USB or SD card with this record player?
A: Yes, you can make direct USB/SD recordings.

Q: Can I record from vinyl records, radio, CD, SD, USB or AUX to cassette with this record player?
A: Yes, you can make cassette recordings from vinyl records, radio, CD, SD, USB or AUX. Please note that the cassette tape must be recordable.

Q: Does this record player have an alarm function?
A: No, this record player does not have an alarm function.

Q: Is the Bluetooth difficult to set up?
A: No, the Bluetooth is easy to set up. Simply turn on your phone's Bluetooth and pair it with the record player. Once your phone finds the record player, it's done.

Q: Can I use a USB disk to record from cassette with this record player?
A: Yes, you can use a USB disk to record from cassette.

Q: Do I need to buy extra accessories to play CDs, MP3s or cassettes with this record player?
A: No, all necessary accessories are included with the product.

Q: Can I transfer tracks from cassette or vinyl to my computer with this record player?
A: Yes, you can connect the record player to your computer and transfer tracks from cassette or vinyl to your computer.

Q: How high is the cover raised when lifted over the phonograph player?
A: The height of the cover raised is 41cm.

Q: Does this record player come with an extra stylus? Will Victrola styli work on this machine?
A: No, this record player only comes with one stylus and it is not compatible with other brand's stylus. If you would like to purchase an extra Replacement Stylus Turntable Needle, please order from our store.

Q: Can I use Bluetooth to output music to my iPhone?
A: Yes, you can use Bluetooth function to output music to your iPhone.

Q: Does this unit include a special needle for playing 78s?
A: No, this unit does not include a special needle for playing 78s. However, the provided needle can still be used for playing 78s.
