User Manual for LE RGBW LED Strip Lights

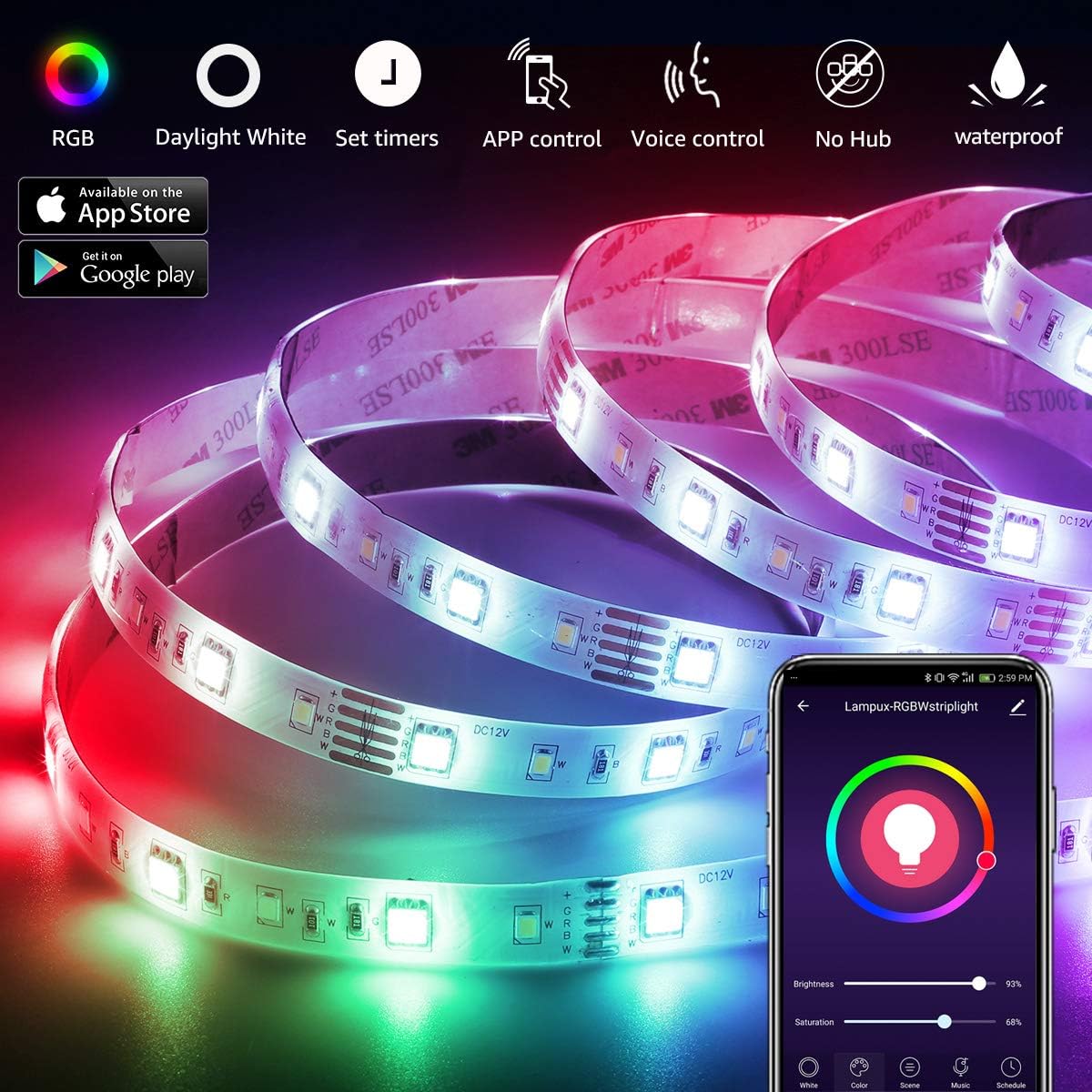

Product Overview

Thank you for choosing the LE RGBW LED Strip Lights. This smart, waterproof, color-changing LED strip is designed to provide vibrant and diverse lighting options for your bedroom, home, kitchen, or even for outdoor use. With WiFi connectivity, voice control through Alexa and Google Assistant, and a dedicated app, you can enjoy a customizable and convenient lighting experience.

Package Contents

• 16.4ft Waterproof LED Strip Light
• WiFi Smart In-Line Controller
• 12 Volt Power Adapter

Specifications

• Length: 16.4 ft
• Width: 12 mm
• LED Quantity: 300 (150 Daylight SMD 5050 + 150 RGB SMD 2835)
• Color Temperature: 6000 Kelvin
• Luminous Flux: 1680 Lumen
• Voltage: 12 Volts
• Wattage: 18 watts
• Water Resistance Level: Waterproof
• Connectivity: WiFi (2.4 GHz only)
• Control Methods: App, Voice (via Alexa, Google Assistant)

Installation Instructions

1. Ensure the surface you are mounting the LED strip to is clean, dry, and smooth.
2. Peel off the protective layer from the 3M adhesive tape on the back of the LED strip.
3. Press the strip firmly against the surface to secure it in place.
4. Connect the LED strip to the smart in-line controller, then to the power adapter, and plug it into a power outlet.
5. Download the 'LE LampUX' app from the app store on your smartphone and create an account.
6. Power on the LED strip and ensure it stays on for at least 10 seconds.
7. Press and hold the controller button for 5 seconds until the light blinks rapidly, indicating it's ready to pair.
8. Follow the in-app instructions to connect the LED strip to your 2.4 GHz WiFi network.

Operation Guide

Use the 'LE LampUX' app to control your LED strip. You can turn the lights on/off, adjust brightness, change colors, set schedules, and more. For voice control, enable the 'LE LampUX' skill in your Alexa app or link to Google Assistant following the respective app's instructions.

Troubleshooting Tips

• LED Strip Not Responding: Ensure the strip is properly connected to the power supply and the in-line controller. Check if the WiFi network is working and within range.
• App Can't Find LED Strip: Reset the LED strip by unplugging it from the power source, then plugging it back in. Hold the controller button for 5 seconds until the light blinks rapidly, then try pairing again through the app.
• Poor Adhesion: Clean the surface thoroughly before applying the LED strip. If the strip still doesn't stick, consider using additional mounting clips or adhesive.
• Connectivity Issues: Make sure your smartphone is connected to a 2.4 GHz WiFi network, as the device is not compatible with 5 GHz networks.

Frequently Asked Questions (FAQ)

Can I cut the LED strip to fit my space?

Yes, you can cut the strip at the designated markings to fit your desired length. Please ensure the power is off before cutting.

Is the LED strip suitable for outdoor use?

The strip is waterproof and suitable for outdoor use. However, ensure that the power adapter and controller are protected from water.

How do I use the music sync feature?

Open the 'LE LampUX' app and navigate to the music sync feature. The app will use your phone's microphone to pick up music and adjust the lights accordingly.

What if the LED strip doesn't stick well?

If the strip doesn't adhere well, clean the surface again and ensure it's dry. If it still fails, use additional mounting hardware or adhesive.

Can I control the LED strip when I'm away from home?

Yes, as long as your LED strip is connected to WiFi, you can control it using the app from anywhere.

How do I set up voice control?

For Alexa, enable the 'LE LampUX' skill in the Alexa app and link your account. For Google Assistant, add the 'LE LampUX' action in the Google Home app and follow the instructions to link your account.

Can multiple LED strips be controlled with the same app?

Yes, you can add multiple LED strips within the 'LE LampUX' app and control them individually or as a group.

What should I do if the LED strip is flashing or not working properly?

Check the connections between the LED strip, controller, and power supply. If the issue persists, reset the strip and reconnect it through the app.

Is there a warranty for this product?

Yes, there is a 2-year warranty from the manufacturer. Contact the seller for warranty claims.

If you have any further questions or need additional support, please refer to the user manual or contact customer service for assistance.

Q: What is the wattage of the LE RGBW LED Strip Lights?
A: The wattage of the LE RGBW LED Strip Lights is 18W.

Q: How many LEDs are there in the strip lights?
A: The strip lights have a total of 150 Daylight (SMD 5050) LEDs and 150 RGB (SMD 2835) LEDs.

Q: What is the length and width of the strip lights?
A: The strip lights have a length of 16.4 ft and a width of 12 mm.

Q: Does the strip light come with an app?
A: Yes, the strip light comes with the LE LampUX app for control.

Q: Can I control the strip lights using voice commands?
A: Yes, the strip lights are compatible with Alexa and Google Assistant, allowing you to control them with voice commands.

Q: Can I set timers and countdowns for the strip lights?
A: Yes, you can set timers and countdowns to turn on/off the lights at your preset time.

Q: Can I control the strip lights remotely?
A: Yes, you can control the strip lights remotely using the LampUX app on your smartphone.

Q: Are the strip lights waterproof?
A: Yes, the strip lights are waterproof and suitable for outdoor use.

Q: What is included in the package?
A: The package includes a 16.4 ft waterproof strip light, a WiFi smart in-line controller, and a 12-volt power adapter.

Q: Is there a warranty for the strip lights?
A: Yes, there is a 2-year warranty for the LE RGBW LED Strip Lights.
