Pyle PBKSP22 HiFi Desktop Bookshelf Speakers Pair User Manual

Table of Contents

1. Introduction
2. Package Contents
3. Speaker Placement
4. Connecting the Speakers
5. Bluetooth Pairing
6. Controls and Settings
7. Troubleshooting
8. Frequently Asked Questions

1. Introduction

Thank you for purchasing the Pyle PBKSP22 HiFi Desktop Bookshelf Speakers Pair. These speakers are designed to provide you with high-quality sound for your computer, home theater, or personal audio setup. Please read this user manual carefully to ensure proper use and care of your new speakers.

2. Package Contents

• 1 x Active Speaker
• 1 x Passive Speaker
• 1 x Power Cable
• 1 x RCA to RCA Cable
• 1 x 3.5mm to RCA Cable
• User Manual

3. Speaker Placement

Place the speakers on a stable, flat surface such as a desk or bookshelf. For optimal sound quality, position the speakers at ear level and angle them towards your listening position. Make sure there is enough space around the speakers for proper ventilation.

4. Connecting the Speakers

1. Connect the active speaker to a power outlet using the included power cable.
2. Connect the passive speaker to the active speaker using the included speaker wire. Make sure to match the red and black terminals on both speakers.
3. Select your preferred audio source (RCA, AUX, or USB) and connect it to the active speaker using the appropriate cable.

5. Bluetooth Pairing

1. Turn on the active speaker using the power switch on the rear panel.
2. Press the 'Mode' button on the rear panel until the Bluetooth LED starts flashing.
3. On your Bluetooth-enabled device, search for available devices and select 'Pyle PBKSP22' to pair.
4. Once connected, the Bluetooth LED will stop flashing and remain lit.

6. Controls and Settings

The rear panel of the active speaker features the following controls:

• Power Switch: Turns the speaker system on or off.
• Mode Button: Selects the audio input source (RCA, AUX, Bluetooth, or USB).
• Bass Knob: Adjusts the bass level.
• Treble Knob: Adjusts the treble level.
• Volume Knob: Adjusts the overall volume.

7. Troubleshooting

1. No sound or low volume: Make sure the speakers are connected properly, the correct audio source is selected, and the volume is turned up.
2. Bluetooth connection issues: Ensure the speaker is in pairing mode and your device's Bluetooth is turned on. Move your device closer to the speaker and remove any obstacles between them.
3. Distorted sound: Lower the volume or adjust the bass and treble settings. Make sure the audio source is of high quality.
4. Intermittent sound: Check the connections between the speakers and the audio source. Make sure the cables are not damaged or loose.

8. Frequently Asked Questions

1. Can I connect multiple audio sources to the speakers simultaneously? Yes, you can connect multiple audio sources using the RCA, AUX, and USB inputs. However, only one source can be active at a time, selected using the 'Mode' button.
2. Can I use these speakers with a TV? Yes, you can connect the speakers to a TV using the RCA or AUX inputs, depending on your TV's available outputs.
3. Are these speakers compatible with a turntable? Yes, you can connect a turntable to the speakers using the RCA input. Make sure your turntable has a built-in preamp or use an external preamp.
4. Can I add a subwoofer to this speaker system? The Pyle PBKSP22 does not have a dedicated subwoofer output. However, you can use a subwoofer with a built-in crossover that accepts speaker-level inputs.

Q: What is the maximum power output of these speakers?
A: The Pyle HiFi desktop bookshelf speakers pair has a maximum power output of 300 watts and 150 watts RMS.

Q: What is the frequency response of these speakers?

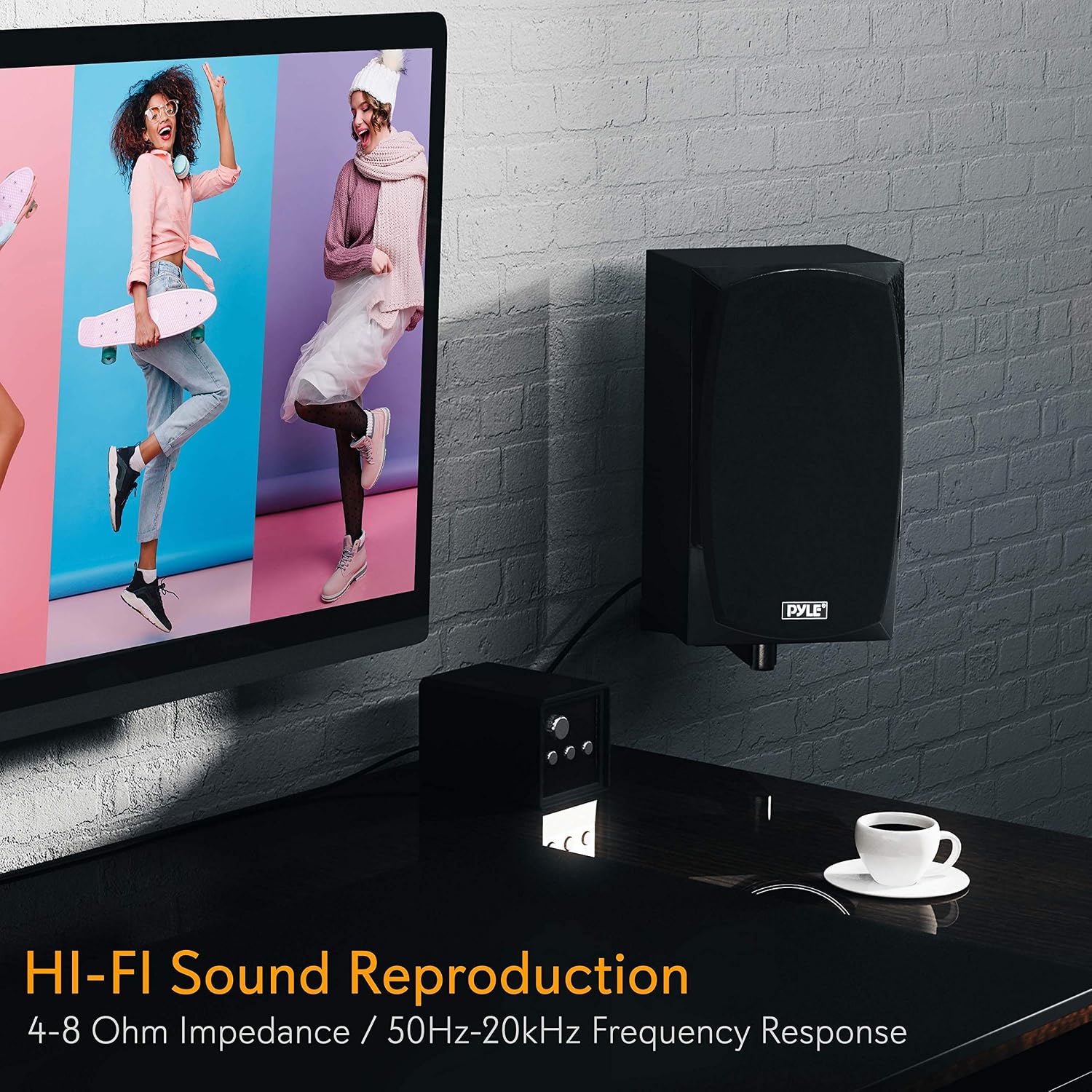

A: These active + passive bookshelf speakers are equipped with a 5.25" monitor speaker driver and 1" aluminum dome tweeter and feature 4-8 Ohm impedance / 50Hz-20kHz frequency response for full range stereo sound reproduction.

Q: Are these speakers compatible with Bluetooth devices?
A: Yes, the stereo speaker system is compatible with Bluetooth for wireless audio streaming and works with devices like iPhone, Android mobile phone, iPad, tablet, PC. Ideal for personal indoor home use or for outdoor DJ party.

Q: What kind of connections do these speakers have?
A: This bookshelf desktop speaker is equipped with RCA (L/R), Aux audio input, and USB flash drive reader and supports MP3 digital audio file. Perfect for home theater, studio monitor, or computer desk applications.

Q: Can a subwoofer be added to these speakers?
A: Yes, it clearly shows in the picture of the back of the unit where you plug speakers in at. It has an "SW" hook up and that IS for adding a subwoofer.

Q: How do you pair these speakers with Bluetooth?
A: You don’t Bluetooth the speakers rather you Bluetooth the tuneramp through the headphone portal!

Q: Do these speakers connect to each other or do both speakers have ports for the L & R RCA inputs (for L or R channel)?
A: Yes, it is a pair of passive and active speakers. You have to connect the passive to the active speaker then plug it into the power source.

Q: Can the two built-in wireless microphones work with two external microphones together when singing Karaoke?
A: Not sure, but it is recommended to stay clear of this item as the microphones worked enough to get sound to come out but the amp is junk and the sound is terrible.

Q: What kind of mounting holes do these speakers have, or what type of mount does it support?
A: It doesn't have a mounting hole. For more info, kindly visit the manufacturer's website pyleaudio.com and type the model number PBKSP22 in the search box.

Q: Will the microphone inputs accept a stereo signal?
A: Yes, the microphone inputs will accept a stereo signal.

Q: Speaker says connected but no Bluetooth devices in my apartment are paired with it, I use line in only. How does that happen?
A: Try unplugging the speakers first and relocating them where no other device will connect and see if it still does the same. If it does, it is recommended to contact the manufacturer directly via www.pyleusa.com/pages/contacts so they can help you further regarding this concern with their technical support team.
