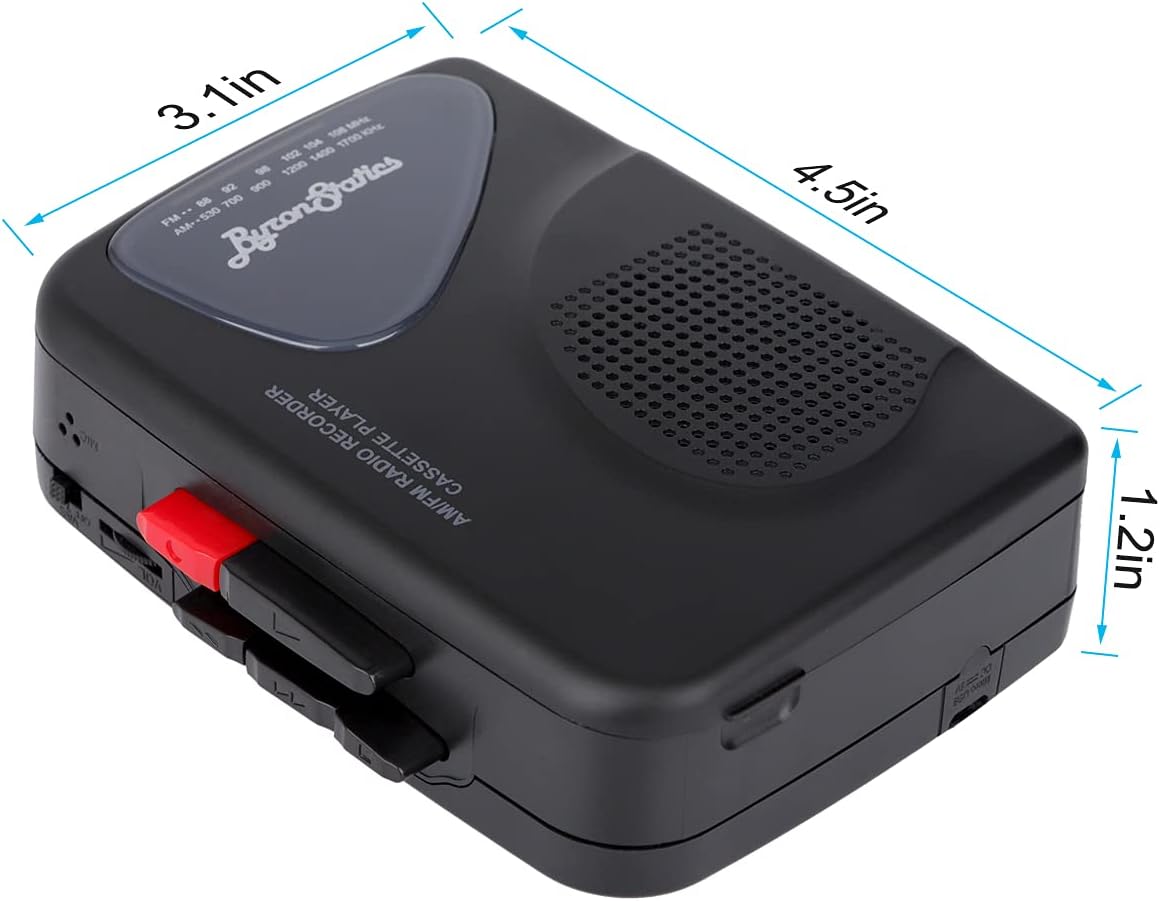

ByronStatics Portable Cassette Players Recorders FM AM Radio Walkman User Manual

Table of Contents

1. Getting Started
2. Operating the Cassette Player
3. Using the FM AM Radio
4. Recording Operation
5. Troubleshooting Tips
6. Frequently Asked Questions (FAQ)

1. Getting Started

Before using the ByronStatics Portable Cassette Players Recorders FM AM Radio Walkman, ensure that you have the following items:

• 2 AA batteries or a micro USB cable (not included)
• Headphones (included)
• Cassette tapes (optional)

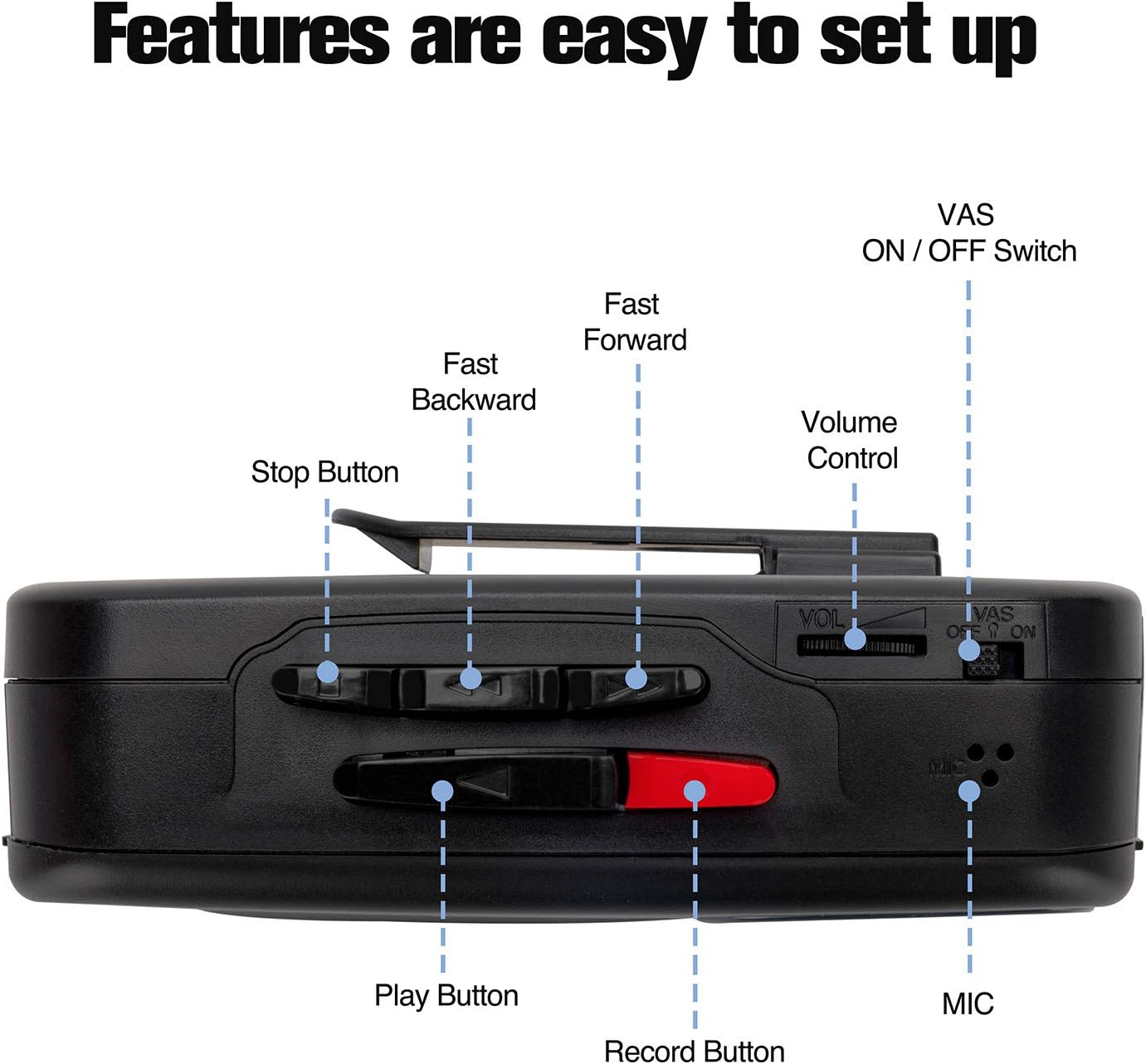

2. Operating the Cassette Player

1. Insert the plug of your headphones into the headphone jack.
2. Set the function selector to 'tape' if required.
3. Open the cassette door and insert a pre-recorded cassette tape with the exposed tape facing upwards. Close the cassette door and push the O position.
4. Press the play button and adjust the volume control to obtain the desired sound level.
5. Press the F.FWD button and adjust the volume control to obtain the desired sound level.
6. Press the stop button to switch off the cassette player.

3. Using the FM AM Radio

1. Put on your headphones and insert the plug into the headphone jack.
2. Switch the function selector to 'radio'.
3. Switch the band selector to 'AM' or 'FM' for the desired band.
4. Turn the tuning knob to select the desired radio station.
5. Adjust the volume control to obtain the desired sound level.
6. To turn the radio off, switch the function selector to 'tape'.

4. Recording Operation

1. Before recording, check the bottom of the blank cassette tape on both sides A and B to ensure it has two 'Recording Lips'.
2. Close the cassette door and select your favorite music or program from the radio or from the mic. Adjust the volume level to a suitable level or max, then press the 'REC' button (in red color) to start recording.
3. You can monitor the recording process through your headphones or speaker.
4. Press the 'stop' button to stop the record function.
5. To listen to the recorded program, press the F.BWD button to rewind the tape and press the play button to replay the recorded program.
6. To prevent your recorded program from being erased, remove the recording lip.

5. Troubleshooting Tips

• If the cassette player is not working, ensure that the batteries are properly inserted or that the micro USB cable is connected.
• If the sound is distorted, try adjusting the volume or changing the batteries.
• If the radio reception is poor, make sure the earphone cord is fully extended and not wound or folded.
• If the cassette player is playing too fast or too slow, the motor may be faulty. Contact the manufacturer for assistance.

6. Frequently Asked Questions (FAQ)

1. Q: Can I use this cassette player with external speakers?
   A: Yes, you can connect external speakers using the headphone jack.
2. Q: Does the cassette player have a built-in microphone for recording?
   A: Yes, the cassette player has a built-in microphone for recording.
3. Q: Can I power this cassette player with a USB cable instead of batteries?
   A: Yes, you can power the cassette player with a micro USB cable. If you use the USB power, it is recommended to remove any batteries first.
4. Q: What is the radio frequency range?
   A: The radio frequency range is FM: 88-108 MHz and AM: 530-1710 KHz.
5. Q: Can I adjust the playback speed of the cassette player?
   A: The playback speed of the cassette player is fixed and cannot be adjusted.

Product FAQ:

Q: What type of cassette tapes does this player work with?
A: This cassette player works with Type I tapes. Anything made for cassette tapes after 2010 are likely to play Type I tapes.

Q: Can this cassette player record from the AM/FM radio?
A: Yes, it can. While the mode select switch is in the “Radio” function, and the record + play button are depressed with a blank tape inside it, the cassette player will easily record the function of the AM/FM radio over to the cassette.

Q: What is the function of the VAS switch?
A: The V.A.S. (voice-activated system) button automatically starts rolling and recording with voice or environmental sound exceeds certain dB level. Also, the recording will automatically stop when sound is under certain dB level. This function helps to save tapes.

Q: Can I plug in a microphone into the headphone jack and use it for recording?
A: No, you cannot. The earphone jack is for audio-out, not in.

Q: Does this cassette player come with a blank tape?
A: No, it does not come with a tape.

Q: Where is this product made?
A: This product is made in China.

Q: Can this cassette player play metal alloy tapes?
A: Technically, it can play metal alloy tapes, but they may sound a bit “off”. It works well with ferric and chrome type tapes.

Q: Does this cassette player have an automatic stop system?
A: Yes, it does. The automatic stop system protects your old classical cassette tape.

Q: How long do the batteries last on this cassette player?
A: The batteries last for 1 to 1-1/2 hours. It is recommended to take out the batteries after half an hour of use and put them back when ready to use again to avoid draining them completely.

Q: Is this cassette player easy to use?
A: Yes, it is. The rewind, fast forward, stop, play and record buttons are easy to see and use. The sound is crisp with no buzzing or other noise.
