LONPOO Portable CD Player User Manual

Table of Contents

1. Overview
2. Getting Started
3. CD Playback
4. FM Radio
5. Bluetooth Connectivity
6. Auxiliary Input
7. USB Playback
8. Headphone Socket
9. Troubleshooting Tips
10. FAQs

1. Overview

The LONPOO Portable CD Player is a versatile and compact audio device that allows you to enjoy your favorite music from various sources. It features CD playback, FM radio, Bluetooth connectivity, auxiliary input, USB playback, and a headphone socket.

2. Getting Started

Power the device using either the included AC adapter or 4 C batteries (not included). To turn the device on, press the power button located on the top of the unit. The LCD display will light up, indicating the device is ready for use.

3. CD Playback

1. Open the CD compartment by pressing the OPEN button.
2. Insert your CD with the label facing up.
3. Close the CD compartment.
4. Press the PLAY/PAUSE button to start playing the CD. The LCD display will show the track number and elapsed time.
5. Use the SKIP buttons to navigate between tracks.
6. Press the STOP button to stop playback.

4. FM Radio

1. Press the MODE button until the LCD display shows "FM".
2. Use the TUNING buttons to select your desired radio station. The frequency will be displayed on the LCD screen.
3. Press and hold the MEMORY button to save the current station. The LCD display will show "P" followed by a number, indicating the preset number.
4. Use the PRESET buttons to navigate between saved stations.

5. Bluetooth Connectivity

1. Press the MODE button until the LCD display shows "BT".
2. Enable Bluetooth on your smartphone or other compatible device and search for available devices.
3. Select "LP-D03" from the list of available devices to pair.
4. Once connected, you can play music from your device through the LONPOO Portable CD Player.

6. Auxiliary Input

1. Connect your MP3 player, smartphone, or tablet to the AUX IN socket using a 3.5mm audio cable (not included).
2. Press the MODE button until the LCD display shows "AUX".
3. Play music from your connected device.

7. USB Playback

1. Insert a USB flash drive containing MP3/WMA files into the USB port.
2. Press the MODE button until the LCD display shows "USB".
3. Press the PLAY/PAUSE button to start playing the files. The LCD display will show the track number and elapsed time.
4. Use the SKIP buttons to navigate between tracks.
5. Press the STOP button to stop playback.

8. Headphone Socket

Connect your headphones to the headphone socket for private listening. When headphones are connected, the built-in speakers will be muted.

9. Troubleshooting Tips

• If the device does not turn on, check that the power adapter is properly connected or that the batteries are correctly installed and not depleted.
• If the CD does not play, ensure that the CD is clean and inserted correctly. Try a different CD to rule out disc issues.
• If the FM radio reception is poor, try adjusting the position of the device or the antenna for better reception.
• If the Bluetooth connection is not working, ensure that your device is compatible and within range. Try disconnecting and reconnecting the devices.

10. FAQs

How do I turn off the blinking lights?

Press and hold the power button to turn off the blinking lights.

Can I charge my phone with this CD player?

Yes, you can charge your phone slowly using the USB port.

Does this CD player support AM radio?

No, this CD player only supports FM radio.

Is this CD player compatible with all Bluetooth devices?

It should be compatible with most Bluetooth devices, but compatibility cannot be guaranteed for all devices.

What is the range of the FM radio?

The FM radio range is 87.5-108 MHz.

Q: What are the playback options for the Lonpoo Portable CD Player?
A: The Lonpoo Portable CD Player offers a variety of playback choices, including USB MP3 playback or Audio CD, all your Bluetooth compatible devices, USB flash drive/pen drive and aux-in which will connect to the majority of MP3 devices/smart phones.

Q: Is the Lonpoo Portable CD Player lightweight?
A: Yes, the Lonpoo Portable CD Player is lightweight and compact, making it easy to carry with you wherever you go.

Q: Can the Lonpoo Portable CD Player be powered by batteries?
A: Yes, the Lonpoo Portable CD Player can be optionally powered by 4 C batteries, making it convenient for outdoor use or in areas without power supply.

Q: What are the radio options for the Lonpoo Portable CD Player?
A: The Lonpoo Portable CD Player includes an FM radio function that allows you to listen to radio channels ranging from 87.5-108 MHz. However, it does not have an AM band.

Q: What type of connectivity technology does the Lonpoo Portable CD Player have?
A: The Lonpoo Portable CD Player offers Bluetooth, auxiliary, and USB connectivity technology.

Q: What is included in the package?
A: The package includes the Lonpoo Portable CD Player, a user manual, and necessary cables for connectivity.

Q: What is the weight and dimensions of the product?

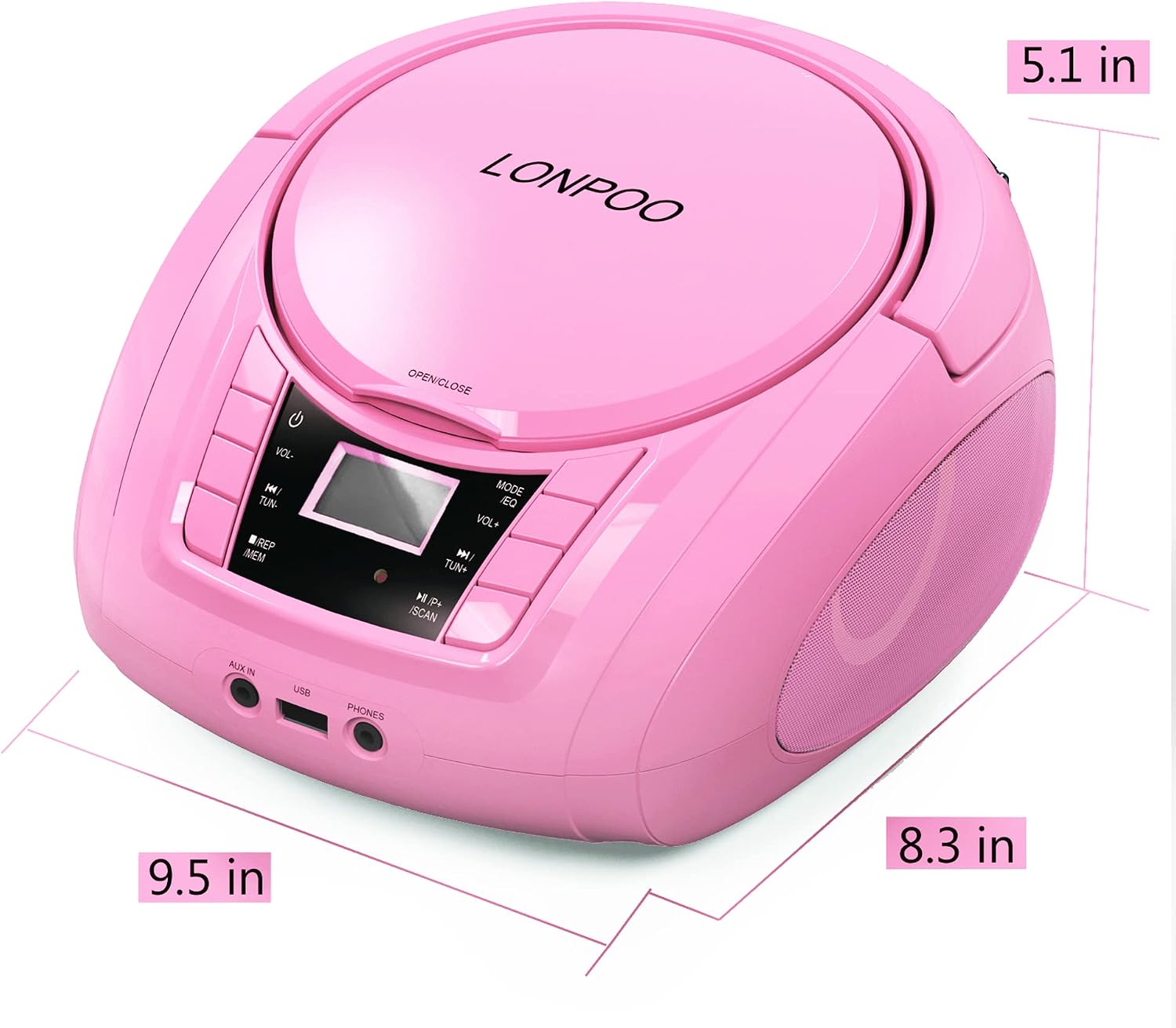

A: The product weighs 2.9 pounds and has dimensions of 9.84 x 8.27 x 4.72 inches.

Q: Does this boombox have a headphone socket?
A: Yes, it has a headphone socket that allows for private listening.

Q: What type of batteries are required to power the device?
A: The device requires 6 size C batteries.

Q: Can this boombox play mini CDs?
A: No, it can only play regular size CDs.

Q: What is the range of the FM radio function?
A: The FM radio function has a range of 87.5-108 MHz.

Q: Can this boombox play Apple AAC music files?
A: Based on customer reviews, it seems that the unit does not support Apple AAC music files.

Q: Does this boombox have a light-up function?
A: No, this batch of Lonpoo Portable CD Players does not have a light-up function.

Q: Is there a way to repeat one song on USB playback?
A: Yes, you can use the 3rd button down on the right to select 1 instead of All to repeat one song on USB playback.

Q: What is the best way to find a replacement power cord if lost?
A: Most after-market portable boom box cords will fit.
