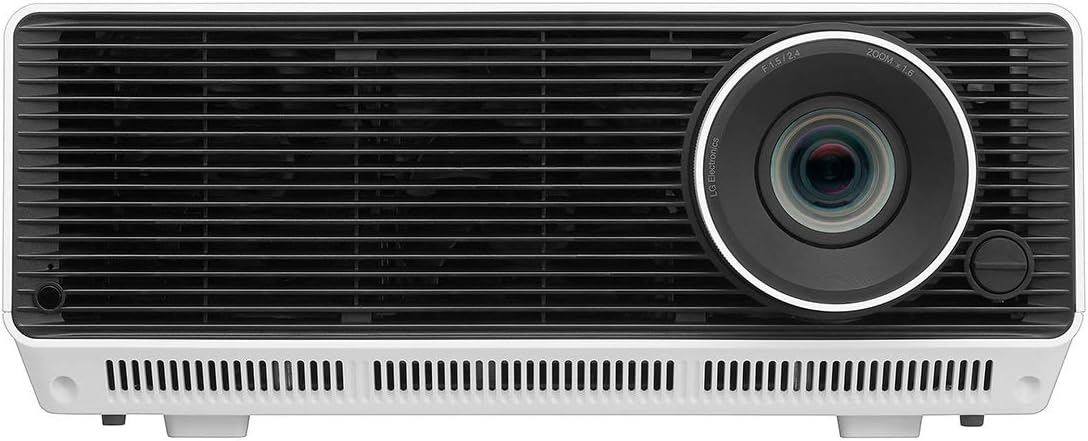

LG GRU510N 300" 4K UHD Laser Projector User Manual

Table of Contents

1. Package Contents
2. Setting Up the Projector
3. Connecting Devices
4. Using the Remote Control
5. Adjusting the Image
6. Troubleshooting
7. Frequently Asked Questions

1. Package Contents

• LG GRU510N 300" 4K UHD Laser Projector
• Remote control with batteries
• Power cord
• Warranty card
• User manual

2. Setting Up the Projector

1. Place the projector on a stable, level surface or mount it using a compatible tabletop mount.
2. Connect the power cord to the projector and plug it into an electrical outlet.
3. Press the power button on the projector or the remote control to turn it on.
4. Adjust the projector's distance from the screen to achieve the desired image size (up to 300 inches).
5. Use the lens shift feature (Horizontal ± 24%, Vertical ± 60%) to align the image with the screen.

3. Connecting Devices

Use HDMI cables to connect your devices (e.g., Blu-ray player, gaming console, or streaming device) to the projector. The projector supports 4K UHD (3840 x 2160) resolution and is compatible with HDCP 2.2 for streaming 4K content.

4. Using the Remote Control

Insert the included batteries into the remote control. Use the remote control to navigate the projector's on-screen menu, adjust settings, and control connected devices.

5. Adjusting the Image

1. Use the remote control to access the projector's on-screen menu.
2. Select "Picture" to adjust settings such as brightness, contrast, and color.
3. Select "Advanced" to access additional settings, including the 12-point warping feature for edge adjustment.
4. Save your settings and exit the menu.

6. Troubleshooting

• No image: Ensure the projector is powered on and connected to a video source. Check that the correct input source is selected.
• Poor image quality: Adjust the projector's distance from the screen, lens shift settings, and picture settings. Ensure the source device is set to output 4K UHD resolution.
• Remote control not working: Check that the batteries are correctly inserted and not depleted. Ensure there are no obstacles between the remote control and the projector's infrared sensor.
• Cannot connect to a wireless device: Ensure the device is compatible with the projector and is within range. Check that both devices are connected to the same Wi-Fi network.

7. Frequently Asked Questions

Can I connect a sound system to the projector?

Yes, the LG GRU510N projector supports Bluetooth Sound Out, allowing you to connect a compatible Bluetooth speaker or sound system wirelessly.

Does the projector support HDR content?

The projector supports 4K UHD resolution, but may not support all HDR formats. Check your source device's settings to ensure it is outputting a compatible format.

How long is the lamp life?

The LG GRU510N uses a laser light source with an estimated lamp life of 20,000 hours.

Is the projector suitable for use in bright rooms?

With a brightness of 5000 ANSI lumens, the projector is suitable for use in well-lit environments. However, image quality may be affected by direct sunlight or extremely bright lighting.

Product: LG GRU510N 300” 4K UHD (3840 x 2160) Resolution, Smart TV Home Theater CineBeam Laser Projector, 5000 ANSI Lumen, Full IP Control, Bluetooth Sound Out, Wireless Connection - Electronics

Q: What is the maximum screen size and resolution of the LG GRU510N projector?
A: The LG GRU510N projector can project up to a 300-inch screen at a 4K UHD resolution of 3840 x 2160 pixels.

Q: What is the brightness level of this projector?
A: The LG GRU510N projector has a brightness level of up to 5000 ANSI lumens.

Q: What type of lamp does this projector use?
A: The LG GRU510N projector uses a laser lamp with a lifespan of 20,000 hours.

Q: Does this projector have lens shift and advanced edge adjustment features?
A: Yes, the LG GRU510N projector has lens shift (Horiz ± 24%, Vert ± 60%) and advanced edge adjustment (12 point warping) features.

Q: What are the connectivity options for this projector?
A: The LG GRU510N projector supports HDMI connectivity and also has Bluetooth sound out and wireless connection capabilities.

Q: Does this projector support Dolby Vision?
A: No, this projector does not support Dolby Vision.

Q: What is the difference between Cinebeam and Probeam projectors?
A: Both projectors have their advantages over the other. The CineBeam has AirPlay, a total of 3 HDMI ports, Dolby Atmos sound, built-in stereo speakers, and is capable of a shorter throw distance. On the other hand, the ProBeam is capable of a brighter light output, supports WiFi, has horizontal lens shift, and a sleep timer.

Q: What is the focal length range of the lens?
A: The LG GRU510N projector has a 1.6 X Zoom and a 1.0 x Zoom. The minimum projection distance using the 1.6 x Zoom is 44.0" (1120 mm) and the maximum projection distance is 342.9" (8710 mm). Using the 1.0 x Zoom, the minimum projection distance is 71.6" (1820 mm) and the maximum projection distance is 550" (13970 mm).

Q: Is this projector a Cinebeam or Probeam projector?
A: The LG GRU510N projector is a Cinebeam projector.

Q: What is the maximum refresh rate of this projector?
A: The LG GRU510N projector has a maximum refresh rate of 120Hz.

Q: Does this projector support 3D features?
A: No, this projector does not support 3D features and will display up to 4K UHD resolution.

Q: What are the mounting options for this projector?
A: The LG GRU510N projector can be ceiling mounted using M6 x L10 screws with a recommended torque of 5-8 kgf.cm (4.34-6.94 lbf-in). It is recommended that you contact the Support Center (800) 243-0000 for installation.

Q: Can this projector throw a 150-inch screen from a distance of around 18 feet?
A: Yes, the owners manual contains a projector throw distance chart that indicates a 200" 16:9 Aspect Ratio screen has a throw distance of 227.9 inches (about 19 feet).

Overall, the LG GRU510N CineBeam Laser Projector offers impressive features such as high resolution, brightness, and advanced adjustment options at an affordable price point compared to other projectors in its class.
