Portable Bluetooth Speakers with Double Subwoofer A35 User Manual

Table of Contents

1. Getting Started
2. Bluetooth Connection
3. Using the Speaker with Non-Bluetooth Devices
4. FM Radio Function
5. Playback Modes
6. Adjusting Volume, Bass, and Treble
7. Using the Remote Control
8. Charging the Speaker
9. Troubleshooting Tips
10. Frequently Asked Questions

1. Getting Started

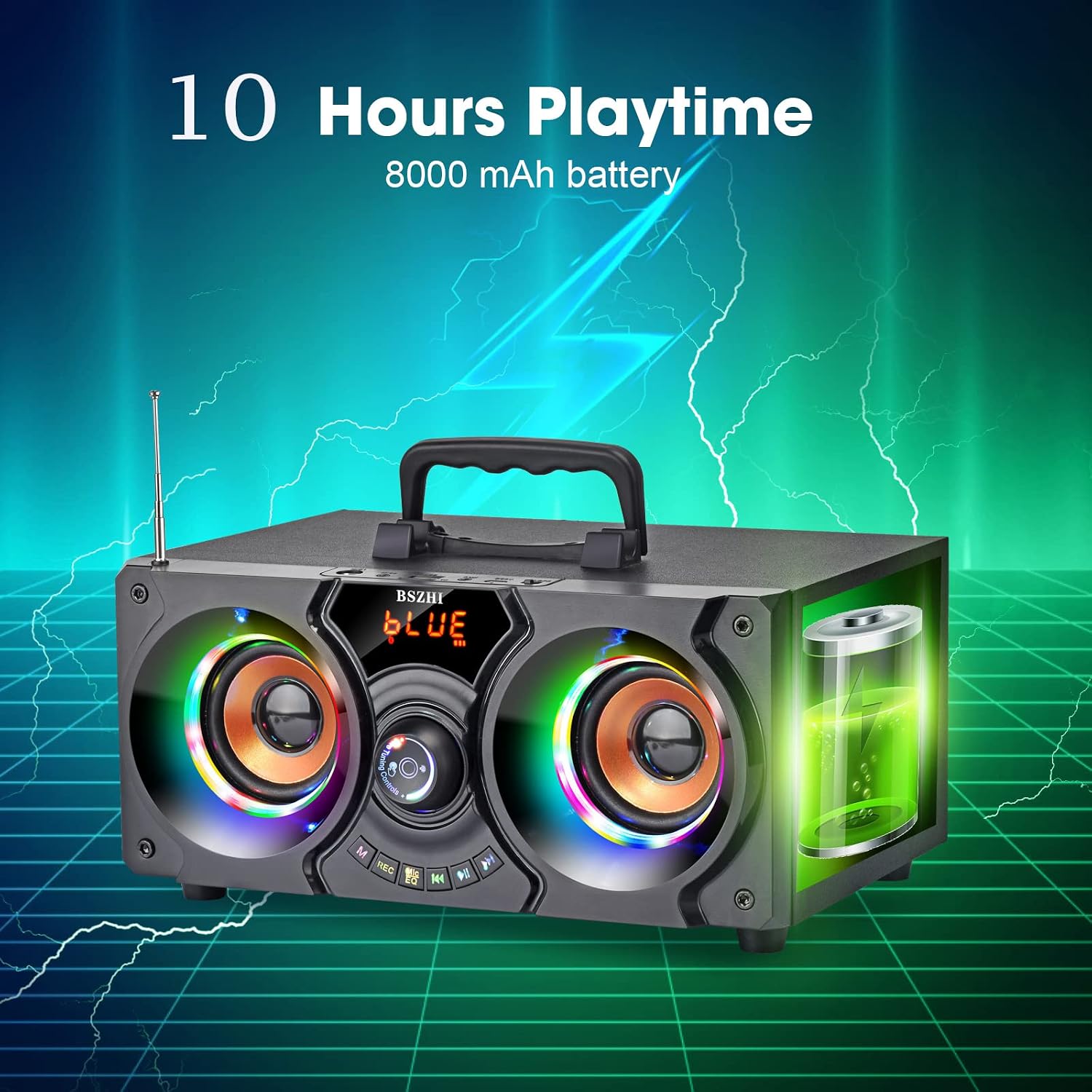

Before using your A35 Portable Bluetooth Speaker, ensure that it is fully charged. To charge the speaker, connect the included charging cable to the charging port on the speaker and plug the other end into a USB power source. The charging process takes approximately 2-4 hours. When fully charged, the speaker can provide up to 10 hours of continuous playtime (based on 50% volume level).

2. Bluetooth Connection

To connect your Bluetooth-enabled device to the A35 speaker, follow these steps:

1. Turn on the speaker by pressing the power button.
2. Enable Bluetooth on your device and search for nearby devices.
3. Select "A35" from the list of available devices.
4. Once connected, you can start playing audio from your device through the speaker.

3. Using the Speaker with Non-Bluetooth Devices

To connect non-Bluetooth devices such as a PC or TV, use the included 3.5mm audio cable to connect the device's audio output to the speaker's AUX input. Once connected, you can start playing audio from your device through the speaker.

4. FM Radio Function

To use the FM radio function, follow these steps:

1. Press the "Mode" button on the speaker or remote control until "FM" is displayed on the digital display.
2. Long press the "Pause" button to automatically search and save available radio stations.
3. Use the "Previous" and "Next" buttons to switch between saved stations.

5. Playback Modes

The A35 speaker supports various playback modes, including:

• Bluetooth
• FM Radio
• TF Card
• AUX Input
• U-disk

6. Adjusting Volume, Bass, and Treble

To adjust the volume, bass, and treble, use the corresponding buttons on the speaker or remote control. Press the "+" button to increase and the "-" button to decrease the volume, bass, or treble.

7. Using the Remote Control

The included remote control allows you to control various functions of the speaker, such as volume, bass, treble, microphone echo, microphone volume, and playback modes. Ensure that the remote control is within the line of sight of the speaker for optimal performance.

8. Charging the Speaker

To charge the speaker, connect the included charging cable to the charging port on the speaker and plug the other end into a USB power source. The charging process takes approximately 2-4 hours. When fully charged, the speaker can provide up to 10 hours of continuous playtime (based on 50% volume level).

9. Troubleshooting Tips

• If the speaker is not turning on, ensure that it is fully charged.
• If the speaker is not connecting to your device via Bluetooth, ensure that your device's Bluetooth is enabled and within range (100 feet) of the speaker.
• If the speaker is not producing sound, ensure that the volume is turned up and the correct playback mode is selected.
• If the speaker is not picking up radio stations, ensure that the antenna is properly extended and the speaker is in an area with good reception.

10. Frequently Asked Questions

Q: How long does it take to fully charge the speaker?
A: It takes approximately 2-4 hours to fully charge the speaker.

Q: What is the wireless range of the Bluetooth connection?
A: The A35 speaker has a maximum wireless range of 100 feet when connected to Bluetooth devices.

Q: How long does the battery last on a full charge?
A: When fully charged, the speaker can provide up to 10 hours of continuous playtime (based on 50% volume level).

Q: Can I connect the speaker to non-Bluetooth devices?
A: Yes, you can connect the speaker to non-Bluetooth devices using the included 3.5mm audio cable.

Q: How do I switch between playback modes?
A: Press the "Mode" button on the speaker or remote control until the desired mode is displayed on the digital display.

Q: What are the specifications of the A35 Bluetooth Speakers?
A: The A35 Bluetooth Speakers have a 2.2 channel design with 4 loud speakers including double Bass, double tweeters, and a rear heavy bass guide tube. It has a maximum output of 60W and supports treble and bass adjustments. It uses Bluetooth 5.0 technology with a maximum wireless range of 100 feet and can connect to smartphones, tablets, and other Bluetooth devices. It also has a built-in 8000mAh rechargeable lithium battery that can continuously play up to 10 hours when fully charged. The speakers feature jumping colorful LED lights, FM radio, TF Card music playback, AUX input, 3.5MM Microphone Jack, U-disk music playback, intelligent remote control, and digital display.

Q: How do you turn off the lights on the A35 Bluetooth Speakers?
A: Press and hold the center of the knob for 3 seconds to turn the light on and off.

Q: Does this company make an 80watt version of the A35 Bluetooth Speakers?
A: No, there is no more powerful version available at this time.

Q: Is the A35 Bluetooth Speakers suitable for wedding parties?
A: Yes, it is suitable for family, backyard parties, small gatherings with its colorful LED lights and dynamic music.

Q: Does the A35 Bluetooth Speakers have a microphone to answer calls when paired to phone?
A: No, it does not have a microphone for answering calls.

Q: How is the sound quality of the A35 Bluetooth Speakers?
A: The sound quality of the A35 Bluetooth Speakers is good.

Q: Is the battery replaceable in the A35 Bluetooth Speakers?
A: No, the A35 Bluetooth Speakers have a built-in 8000mAh rechargeable lithium battery that is not replaceable.

Q: How do you play music from a USB on the A35 Bluetooth Speakers?
A: Plug the USB into the USB port on the speakers.

Q: What is the weight and dimensions of the A35 Bluetooth Speakers?
A: The A35 Bluetooth Speakers weigh 6.64 pounds and have dimensions of 11.8 x 8.58 x 5.35 inches.
