AKKIGL Multi-Functional Projection Digital Alarm Clock User Manual

Table of Contents

1. Setting Up Your Alarm Clock
2. Adjusting Projection Brightness and Angle
3. Setting the Time and Date
4. Adjusting LED Display Brightness
5. Setting Dual Alarms
6. Using the Snooze Function
7. Listening to FM Radio
8. Charging Your Devices
9. Battery Backup
10. Troubleshooting Tips
11. Frequently Asked Questions

1. Setting Up Your Alarm Clock

To set up your AKKIGL Multi-Functional Projection Digital Alarm Clock, first plug the provided power adapter and USB cable into the alarm clock and a power source. The alarm clock can also be powered by a laptop or power bank. If you want to activate the battery backup function, remove the insulation sheet in the back of the alarm clock.

2. Adjusting Projection Brightness and Angle

To adjust the projection brightness, press the "Project Zz" button on the top of the alarm clock until you reach the desired brightness level (High, Medium, Low, or Off). To adjust the projection angle, rotate the focus knob on the right side of the projector. You can also press the 180° rotation button on the back of the alarm clock to flip the projection.

3. Setting the Time and Date

To set the time and date, press and hold the "Time Set" button on the top of the alarm clock. Use the "+" and "-" buttons to adjust the hour and minute, and press "Time Set" again to confirm the time. To switch between 12-hour and 24-hour formats, press and hold the "12/24H" button.

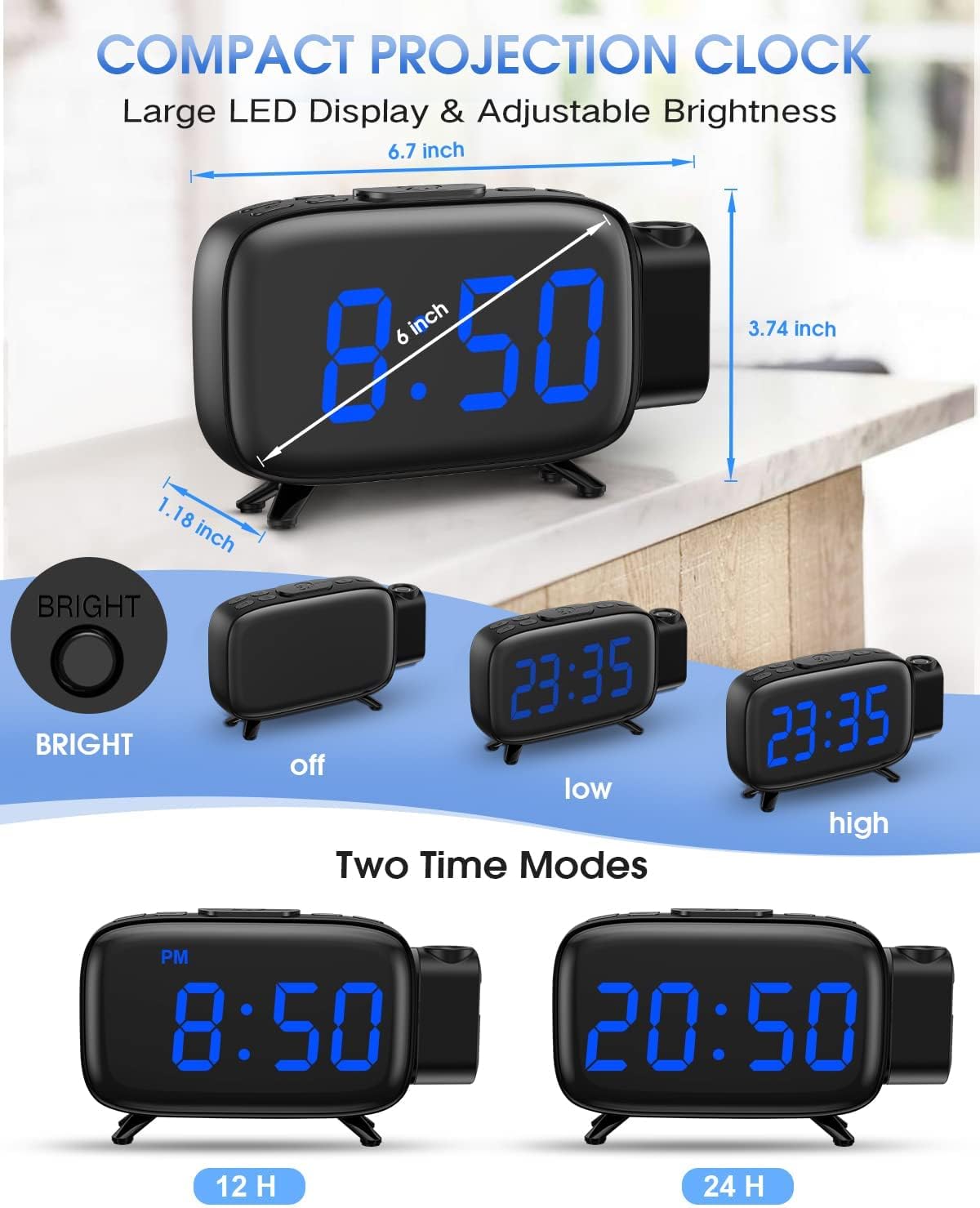

4. Adjusting LED Display Brightness

To adjust the LED display brightness, press the "Dimmer" button on the top of the alarm clock until you reach the desired brightness level (High, Low, or Off).

5. Setting Dual Alarms

To set the dual alarms, press and hold either the "Alarm 1" or "Alarm 2" button on the top of the alarm clock. Use the "+" and "-" buttons to adjust the hour and minute, and press the corresponding alarm button again to confirm the time. To choose from the 7 available alarm sounds, press the "Alarm Sound" button. Adjust the alarm volume using the "+" and "-" buttons.

6. Using the Snooze Function

When the alarm goes off, press the "Snooze" button on the top of the alarm clock to get an extra 10 minutes of sleep. Any other button will turn off the alarm.

7. Listening to FM Radio

To listen to FM radio, press the "Radio" button on the top of the alarm clock. Extend the antenna on the back of the alarm clock for better reception. Use the "+" and "-" buttons to manually search for radio stations or press and hold the "Radio" button to automatically search and store stations. Adjust the radio volume using the "+" and "-" buttons.

8. Charging Your Devices

To charge your devices, plug your USB cable into the USB charging port on the back of the alarm clock.

9. Battery Backup

The built-in battery inside the alarm clock will save your time, alarm, and radio settings in the event of a power failure or temporary unplugging. Note that the backup battery only supports memory function and will not power the LED display or alarm.

10. Troubleshooting Tips

If you encounter any issues with your alarm clock, try the following troubleshooting tips:

• Ensure the power adapter and USB cable are properly connected.
• Check that the backup battery insulation sheet has been removed.
• Extend the antenna for better FM radio reception.
• Adjust the focus knob and projection angle for a clearer projection.

11. Frequently Asked Questions

Q: Can I adjust the size of the projection?
A: The size of the projection is fixed with the lens and cannot be adjusted.

Q: Can I use the projection function when the LED display is turned off?
A: Yes, the projection function is still active even when the LED display is turned off.

Q: What is the optimum projection distance?
A: The optimum projection distance is between 1.5 and 13 feet (0.45 to 3.9 meters).

Q: How do I switch between 12-hour and 24-hour formats?
A: Press and hold the "12/24H" button to switch between 12-hour and 24-hour formats.

Q: What are the special features of the AKKIGL Projection Alarm Clock?
A: The AKKIGL Projection Alarm Clock has several special features, including adjustable brightness of display and projection, adjustable projection angle, adjustable volume, dual alarms, snooze function, FM radio, large LED display, battery backup, USB charging ports, and 12/24 hour format.

Q: Can the projection of the clock be adjusted?
A: Yes, the projection angle of the AKKIGL Projection Alarm Clock can be adjusted within 180 degrees. Additionally, the clarity of the projection can be adjusted by rotating the focus knob located on the right side of the projector.

Q: Does this alarm clock have a radio function?
A: Yes, this alarm clock has a built-in FM radio with enhanced antenna and 16-level adjustable volume. You can manually or automatically search for and store unlimited numbers of stations within 76-108 MHz.

Q: How many alarms can be set on this clock?
A: The AKKIGL Projection Alarm Clock allows you to set two separate alarms with 7 optional alarm sounds and 6 adjustable volume levels (30-90db) available for each alarm.

Q: Is there a snooze function on this alarm clock?
A: Yes, this alarm clock has a snooze function that allows you to get an extra 10 minutes of sleep time by pressing the big snooze button when hearing the alarm.

Q: Can this alarm clock charge devices via USB?
A: Yes, this alarm clock has a built-in USB charging port that provides 5V/1A output for charging your phone or other devices.

Q: Does this alarm clock have a battery backup?
A: Yes, this alarm clock has a built-in cell button backup battery that saves time/alarm/radio settings in case of power outage or temporary unplugging. However, it cannot support the digital LED clock to light up or ring the alarm.
