User Manual for Double Din Bluetooth Car Stereo with Apple Carplay & Android Auto

Table of Contents

1. Package Contents
2. Installation
3. Basic Operation
4. Apple Carplay & Android Auto
5. Bluetooth and Front Microphone
6. Touchscreen and Mirroring
7. Pre-Amp and Subwoofer Output
8. Rear View Camera
9. Troubleshooting Tips
10. Frequently Asked Questions

1. Package Contents

• Double Din Bluetooth Car Stereo
• External Front Microphone
• Backup Camera
• Wiring Harnesses
• Installation Hardware
• User Manual

2. Installation

Before installation, ensure your dashboard opening size matches one of the three compatible sizes mentioned in the product description. Follow the installation instructions provided in the user manual. If you are not comfortable with the installation process, seek assistance from a professional installer.

3. Basic Operation

Power on the car stereo and use the touchscreen to access various functions such as AM/FM radio, music playback, and settings. The responsive touchscreen allows for easy navigation and control of the car stereo.

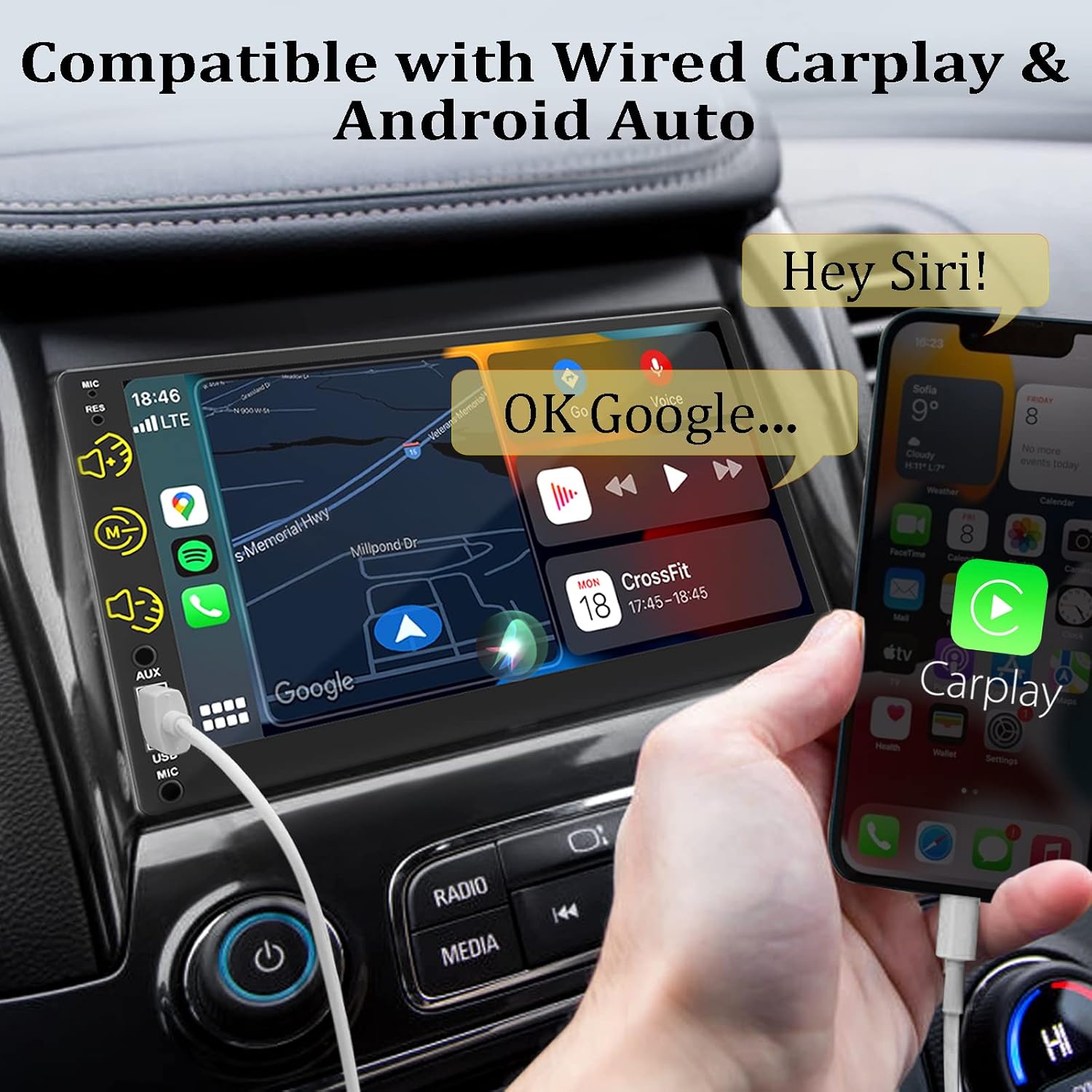

4. Apple Carplay & Android Auto

Connect your iPhone or Android device to the car stereo using a USB cable. The car stereo will automatically detect your device and enable Apple Carplay or Android Auto, allowing you to access various functions like music, maps, calls, notifications, and messages hands-free.

5. Bluetooth and Front Microphone

Pair your smartphone with the car stereo via Bluetooth to listen to music, make calls, and use voice commands. The built-in microphone and external front microphone ensure clear call quality. The steering wheel control (SWC) function allows for safer driving.

6. Touchscreen and Mirroring

The 7-inch touchscreen with 1024 x 600p resolution supports video playback up to 1080 pixels. The car stereo also supports mirror link for most Apple and Android phones, allowing you to mirror your phone's screen on the car stereo display.

7. Pre-Amp and Subwoofer Output

The car stereo features a preamplifier and subwoofer output, allowing you to connect additional subwoofer devices and customize EQ audio settings for a high-quality 3D surround sound experience.

8. Rear View Camera

The included backup camera features night vision, high-definition, waterproof, and 170° wide-angle vision. Connect the camera to the car stereo and it will automatically display the rear view when the vehicle is put in reverse, assisting in safe and easy parking.

9. Troubleshooting Tips

• If the touchscreen is unresponsive, try restarting the car stereo.
• If you experience issues with Apple Carplay or Android Auto, ensure you are using a high-quality USB cable and check for software updates on your smartphone.
• If Bluetooth connection issues occur, try unpairing and re-pairing your device.
• If the backup camera is not functioning properly, check the wiring connections and ensure the camera is securely mounted.

10. Frequently Asked Questions

Q: Is this car stereo compatible with my vehicle?

A: The car stereo is compatible with most car models in the US, Europe, and Asia. Please measure your dashboard opening size to ensure compatibility.

Q: Can I use the steering wheel controls with this car stereo?

A: Yes, the car stereo supports steering wheel control (SWC) functionality for safer driving.

Q: Does the car stereo support wireless Apple Carplay or Android Auto?

A: No, the car stereo supports wired Apple Carplay and Android Auto via a USB cable.

Q: Can I connect an external amplifier to the car stereo?

A: Yes, the car stereo has pre-amplifier and subwoofer output, allowing you to connect additional audio devices.

Q: What is the compatibility of this double din car stereo with Apple Carplay and Android Auto?
A: This double din car stereo is compatible with wired Apple CarPlay and Android Auto, allowing superior Voice Control and making it easier to access your iPhone functions including music, map navigation, calls, notification, messages and much more, while keeping your hands free for totally safe driving.

Q: What is the size of this car stereo and what are the compatible car models?
A: The size of this car stereo is universal: 7.01 x 4.02 x 3.94 inches. Please measure if your dashboard opening size is match one of the following three sizes: (1) Commonly used sizes for car series in the U.S. and Europe: 173×98mm(6.81×3.85inch); (2) Commonly used sizes for car series in the Asian: 178×100mm(7×4inch); (3) Other common sizes:190×116mm(7.48×4.56inch). It is suitable for most car models in the US.

Q: Does this double din car stereo come with a backup camera?
A: Yes, this car radio comes with a backup camera that has night vision function, high-definition, waterproof, and 170° wide-angle vision, whether it is rainy, daytime or night, it can well assist in safe and fast reversing.

Q: Can additional subwoofer devices be connected to this double din car audio?
A: Yes, this double din car audio has preamplifier and subwoofer output, EQ audio settings, allows you to set up and connect additional subwoofer devices as you like, and enjoy high-quality 3D surround sound, make the journey more enjoyable.

Q: Is this double din car stereo compatible with voice control?
A: Yes, this double din car stereo is compatible with voice control through the touchscreen and microphone.

Q: What is the display size and resolution of this double din car stereo?
A: The display size of this double din car stereo is 7 inches, and the display resolution is 1024 x 600.

Q: What connectivity options are available for this double din car stereo?
A: This double din car stereo supports Bluetooth, Auxiliary, and USB connectivity options.

Q: What is the weight and dimensions of this double din car stereo?
A: The weight of this double din car stereo is 2.45 pounds, and the dimensions are 7.01 x 4.02 x 3.94 inches.

Q: Is there a warranty provided with this double din car stereo?
A: The manufacturer has not provided information about a warranty for this product.
