Superboost WiFi Extender Range Booster User Manual

Table of Contents

1. Package Contents
2. Product Overview
3. Setup and Installation
4. Operating Modes
5. Troubleshooting Tips
6. Frequently Asked Questions

1. Package Contents

• Superboost WiFi Extender Range Booster
• LAN / Ethernet Cable
• User Manual

2. Product Overview

The Superboost WiFi Extender Range Booster is designed to amplify your existing WiFi signal, covering up to 9,784 square feet and eliminating dead zones. This device supports a data transfer rate of 300 Mbps and is compatible with 2.4 GHz wireless networks. It comes with 2 advanced antennas and a LAN / Ethernet port for wired connections. The extender is compatible with most routers and can support up to 35 devices.

3. Setup and Installation

1. Plug the WiFi extender into a power outlet near your router.
2. Press the WPS button on your router.
3. Press the WPS button on the WiFi extender within 2 minutes of pressing the button on your router.
4. Wait for the LED lights on the extender to turn solid green, indicating a successful connection.
5. Unplug the extender and move it to a location halfway between your router and the area where you need improved WiFi coverage.
6. Plug the extender back into a power outlet and wait for the LED lights to turn solid green.
7. Connect your devices to the extended network using the same WiFi password as your original network.

4. Operating Modes

The Superboost WiFi Extender Range Booster offers 5 different operating modes:

• Wireless Router
• Repeater
• Access Point
• Client
• Wisp Mode

5. Troubleshooting Tips

• If the extender is not connecting to your router, ensure that both devices are within range of each other and that the WPS buttons were pressed within the 2-minute window.
• If you are experiencing slow or unstable connections, try moving the extender closer to your router or changing the location to avoid interference from other devices or obstacles.
• Ensure that your router and extender are both using the same WiFi password and security settings.
• If your devices are not connecting to the extended network, try resetting the extender and going through the setup process again.

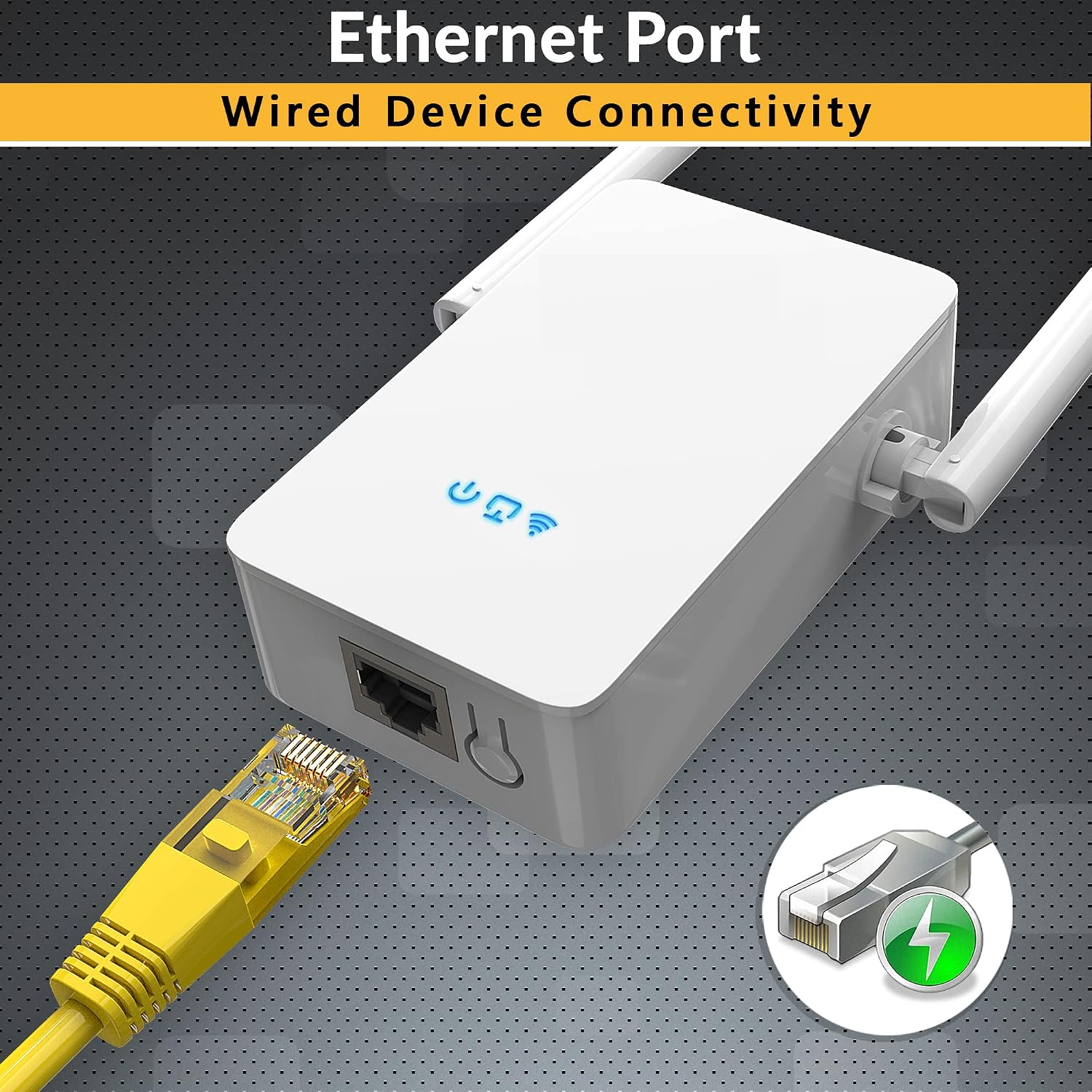

• For advanced setup and configuration, connect the extender to a computer using the included Ethernet cable and access the device's settings through a web browser.

6. Frequently Asked Questions

Does this extender support 5 GHz networks?

No, the Superboost WiFi Extender Range Booster only supports 2.4 GHz wireless networks.

Can I use this extender with any router?

Yes, this extender is universally compatible with most routers.

How many devices can be connected to the extender at once?

The extender can support up to 35 devices simultaneously.

Can I use this extender outdoors?

While the extender is designed to improve WiFi coverage both indoors and outdoors, it is not weatherproof and should be protected from direct exposure to the elements.

How do I reset the extender to factory settings?

Press and hold the reset button on the extender for 10 seconds or until the LED lights start flashing. The extender will reboot and return to its factory settings.

Q: What is the range of the Superboost WiFi Extender Range Booster for Home & Yard?
A: The Superboost WiFi Extender Range Booster for Home & Yard can permeate through 9000+ square feet of 'home barriers', delivering optimized, stable bandwidth.

Q: Does it have financial security features?
A: Yes, the powerful 300 Mbps and 2.4 GHz Processor WiFi Extender combines with the latest Advanced WEP/WPA/WPA2 security protocols to create a formidable wall of defense for business, financial & identity protection.

Q: How many devices can it connect?
A: The internet range booster with Ethernet Port connects up to 35 devices, interference-free.

Q: Is it compatible with Comcast?
A: Yes, it is compatible with Comcast, and as long as you are using Wi-Fi, not cell signal, that extender should just work. It could even extend a public hotspot as it doesn't have a captive portal.

Q: Is this a dual-channel extender?
A: No, it only has 2.4 GHz.

Q: How does it work if you have no router only a modem?
A: You should be able to plug an Ethernet cord up to the modem.

Q: Does it work with stand-alone hotspot devices?
A: The manufacturer does not recommend it.

Q: How far will this pick up a WiFi signal from a router like in an RV park?
A: The range may vary depending on the obstacles in between. Some reviews suggest that the range is not very far, but it served their needs.

Q: What are the included components of the package?
A: The package includes the WiFi extender signal range booster for home with an Ethernet port.

Q: What is the data transfer rate of this device?
A: The data transfer rate is 300 Megabits per second.

Q: What is the weight of this device?
A: The weight of this device is 6.7 ounces.

Q: When was it first available?
A: It was first available on March 10, 2022.

Q: What is the best seller rank of this device?
A: The best seller rank of this device is #60 in Repeaters.

Q: What are the dimensions of the package?
A: The package dimensions are 7.32 x 3.86 x 2.24 inches.

Q: Does it have a one-tap WPS setup?
A: Yes, it has an easy 30-second setup with a one-tap WPS button.

Q: Is it compatible with ATT wireless system?
A: The manufacturer is not familiar with ATT, but as long as it is a Wi-Fi signal, you can boost/extend it.
