Bebeconfort EvolveFix i-Size User Manual

Installation

1. Place the EvolveFix i-Size on your vehicle's seat with the ISOFIX connectors aligned to your vehicle's ISOFIX anchor points.
2. Extend the ISOFIX connectors by pushing the button and connect them to the anchor points until you hear a click, indicating they are securely attached.
3. Extend the Top Tether strap and hook it to the designated anchor point behind the vehicle's seat. Tighten the strap to secure the seat firmly.

Adjusting the Seat

1. To rotate the seat, pull the rotation handle located at the front of the seat base and turn the seat to the desired position.
2. For reclining the seat, use the recline handle at the front of the seat to adjust between the 4 recline positions.
3. To adjust the headrest, squeeze the headrest adjustment button at the top of the seat and slide the headrest up or down to one of the 9 positions.

Securing Your Child

1. Place your child in the seat and adjust the harness so that it is snug against your child's body. The harness should be at or just above your child's shoulders.
2. Buckle the 5-point harness and tighten by pulling the adjustment strap.
3. Ensure that the harness is not twisted and that your child is secure.

Care and Maintenance

1. Remove the seat cover by detaching it from the shell. Refer to the instruction manual for detailed steps.
2. Machine wash the cover at 30 degrees Celsius and let it air dry before reattaching it to the seat.
3. Wipe the shell and harness with a damp cloth to clean. Do not use abrasive cleaners.

Troubleshooting Tips

• Seat Not Rotating: Ensure that the rotation handle is fully engaged and that no debris is blocking the rotation mechanism.
• ISOFIX Not Locking: Check that the ISOFIX connectors are properly aligned with the anchor points and push firmly until you hear a click.
• Top Tether Not Tightening: Confirm that the Top Tether is hooked correctly and pull the strap to remove any slack.
• Recline Not Working: Adjust the recline handle again and ensure that the seat is not under load while adjusting.
• Harness Not Tightening: Remove any twists in the straps and try pulling the adjustment strap again.

Frequently Asked Questions (FAQs)

Can the EvolveFix i-Size be installed in any car?

The EvolveFix i-Size requires a vehicle with ISOFIX anchor points and a Top Tether anchor. Please check your vehicle's manual to ensure compatibility.

What is the maximum weight and height for a child using this seat?

The maximum weight is 36 kilograms, and the maximum height is 150 centimeters.

How do I know if the seat is installed correctly?

You should hear a click when the ISOFIX connectors are attached, and the Top Tether should be tight with no slack. The indicators on the ISOFIX connectors may also show green when the seat is correctly installed.

Can the seat cover be replaced?

Yes, the seat cover is removable and machine washable. Replacement covers can be purchased if needed.

Is the seat approved for airplane use?

The EvolveFix i-Size is not typically approved for airplane use. Please check with your airline for their specific requirements on child restraints.

How do I switch from rear-facing to forward-facing?

To switch the orientation, rotate the seat to the side, adjust the ISOFIX connectors if necessary, and rotate the seat to the desired direction. Always ensure the seat is locked in place before use.

What should I do if the seat seems loose after installation?

Re-check the ISOFIX and Top Tether connections. Make sure the ISOFIX connectors are fully engaged and the Top Tether is taut. Refer to the installation section for further guidance.

Is the EvolveFix i-Size compatible with strollers?

No, the EvolveFix i-Size is a fixed car seat and is not designed to be compatible with strollers.

What materials is the seat made of?

The seat is made of polyester, steel, HDPE, PA, and polyurethane for durability and comfort.

How long can I use this seat?

The EvolveFix i-Size is designed to grow with your child from birth up to approximately 12 years of age, depending on their weight and height.

Product FAQ:

Q: What age range is this car seat suitable for?
A: This car seat is suitable for children from 0 to 12 years old, with a weight range of 40-150 cm.

Q: Is this car seat i-Size compliant?
A: Yes, this car seat is i-Size compliant, which is the highest safety standard in the EU (R129).

Q: How is this car seat installed?
A: This car seat is installed using the ISOFIX system with a Top Tether strap for maximum stability and safety.

Q: Can this car seat rotate?

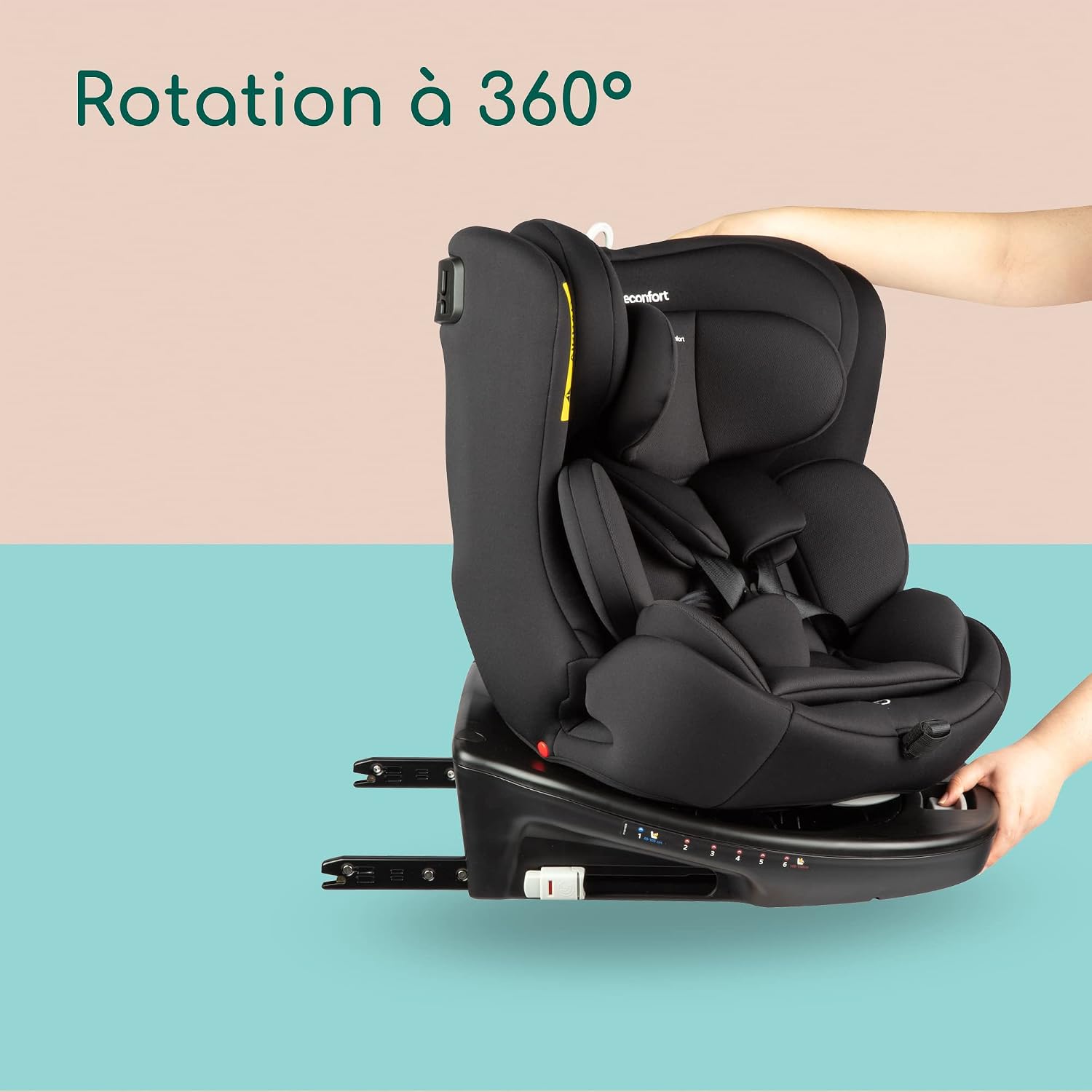

A: Yes, this car seat has a 360° rotating feature, making it easy to install and remove your child from the car seat.

Q: How many recline positions does this car seat have?
A: This car seat has 4 recline positions, allowing your child to travel comfortably in a relaxed or seated position.

Q: How many adjustable headrest positions does this car seat have?
A: This car seat has 9 adjustable headrest positions, allowing you to easily adjust the headrest as your child grows.

Q: Does this car seat provide side impact protection?
A: Yes, this car seat provides double protection against side impact with head and torso protection on both sides.

Q: Can the fabric of this car seat be machine washed?
A: Yes, the padded and soft fabric of this car seat can be machine washed at 30 degrees Celsius for easy cleaning.

Q: What are the dimensions and weight of this car seat?
A: The dimensions of this car seat are 50 x 53 x 44 cm, and it weighs 13.4 kilograms.

Q: What is included in the package?
A: The package includes the Bebeconfort EvolveFix i-Size Car Seat in Black Mist color.

Q: Is there a warranty for this product?
A: The warranty details can be obtained from the manufacturer, Dorel juvenile.

Please note that the information provided is based on the product description and may vary. It is always recommended to refer to the manufacturer's instructions for specific details and guidelines.
