User Manual for YaberAuto Car Battery Booster with Compressor

Product Overview

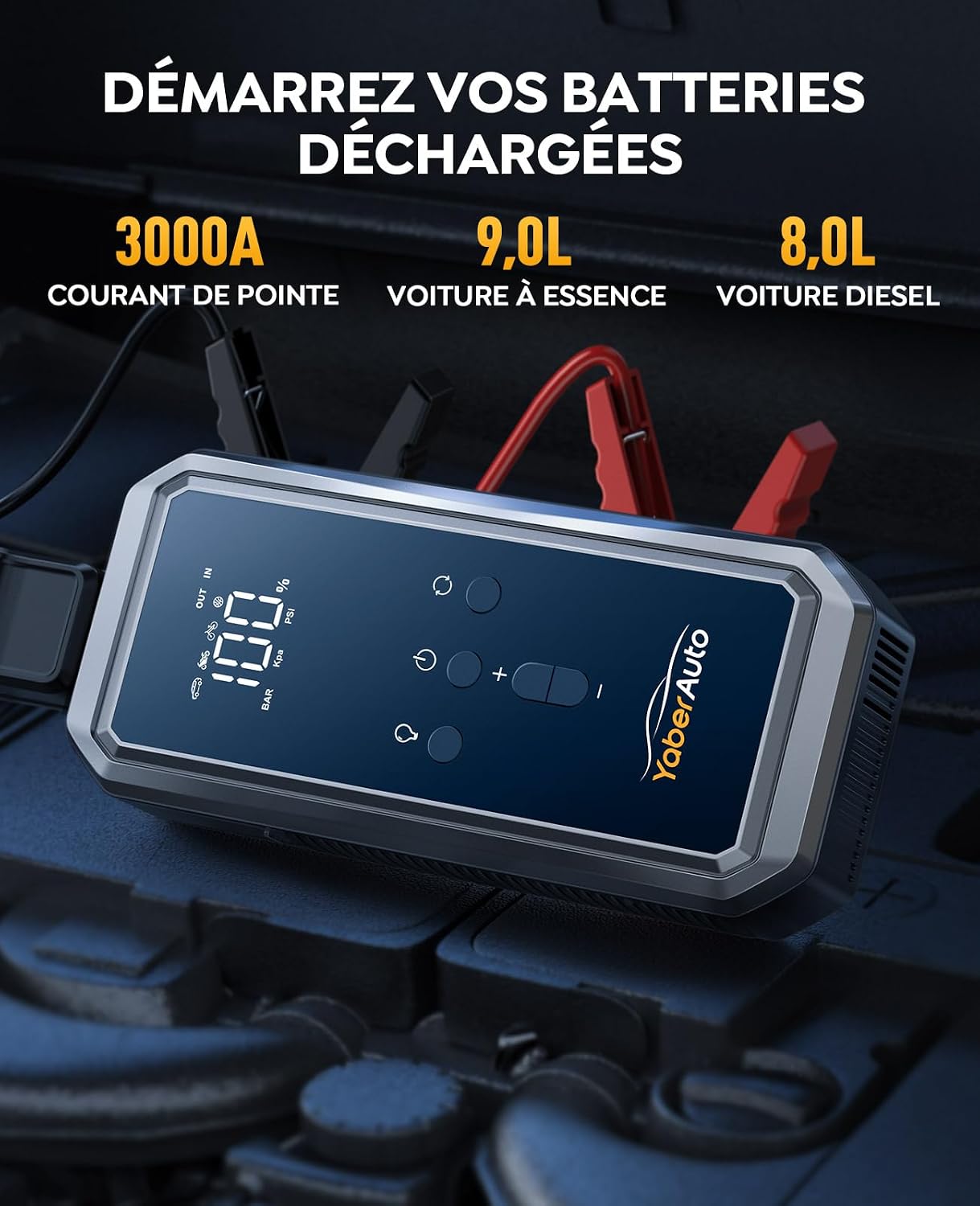

The YaberAuto Car Battery Booster with Compressor is a versatile and powerful device designed to jump-start your vehicle and inflate tires. With a peak current of 3000A and a capacity of 21800mAh, it can start gasoline engines up to 9.0L and diesel engines up to 8.0L. The device also features a built-in air compressor with a maximum pressure of 150 PSI, LED screen, LED flashlight, and USB charging ports.

Getting Started

Before using the booster, ensure it is fully charged. Charge the device using the provided charging cable by connecting it to a USB power source.

Jump-Starting a Vehicle

1. Connect the red clamp to the positive (+) battery terminal.
2. Connect the black clamp to the negative (-) battery terminal or a ground point on the vehicle.
3. Turn on the booster by pressing the power button.
4. Start the vehicle. If it doesn’t start immediately, wait a few minutes and try again.
5. Once the vehicle starts, disconnect the clamps in reverse order.

Using the Air Compressor

1. Attach the appropriate nozzle to the tire valve or other inflatable items.
2. Set the desired pressure using the LED screen and buttons.
3. Turn on the compressor. It will automatically stop once the set pressure is reached.
4. Detach the nozzle and store it properly.

Using the LED Flashlight

1. Press and hold the LED light button to switch on the flashlight.
2. Press the button to cycle through the three modes: flashlight, SOS, and strobe.
3. Press and hold the button again to turn off the flashlight.

Charging Devices

1. Connect your device to one of the USB output ports using a compatible cable.
2. For devices that require a DC output, use the included DC adapter.
3. Monitor the charging progress on the device’s screen.

Troubleshooting Tips

• If the booster does not start your vehicle, ensure the clamps are properly connected and the booster has sufficient charge.
• If the air compressor is not working, check for any loose connections and ensure the nozzle is securely attached.
• If the LED flashlight is not working, ensure the booster has enough charge and press and hold the light button firmly.
• If the USB ports are not charging your devices, try using a different cable or check if the device’s battery is functioning.

Frequently Asked Questions (FAQ)

What types of vehicles can the booster start?

The booster can start gasoline engines up to 9.0L and diesel engines up to 8.0L.

How long does it take to fully charge the booster?

Charging time varies based on the power source. With a 3A fast charger, it can take approximately 3-4 hours. With a standard 2A charger, it may take around 12 hours.

Can the booster inflate bicycle and motorcycle tires?

Yes, the booster comes with different nozzles and has preset modes for car, bicycle, motorcycle, and ball inflation.

Is the device safe to use?

Yes, the booster has multiple safety protections, including short-circuit, over-voltage, under-voltage, reverse charging, over-temperature, over-charge, and reverse connection protections.

How do I activate the 3-year warranty?

Refer to the warranty card included in the package for instructions on how to activate the 3-year warranty.

Can I use the booster as a power bank for my devices?

Yes, the booster can be used as a power bank to charge your USB-enabled devices.

Does the booster work in extreme temperatures?

The booster is designed to function in a wide range of temperatures, from -4°F to 140°F (-20°C to 60°C).

How do I know when the air compressor has reached the set pressure?

The air compressor will automatically stop inflating once the preset pressure is achieved. The current pressure is also displayed on the LED screen during operation.

What should I do if the booster does not start my car?

Ensure the clamps are properly connected, the booster is turned on, and it has enough charge. If the car still doesn’t start, contact customer support for assistance.

Q: What is the capacity and maximum current of the YaberAuto Booster Batterie Voiture?
A: The YaberAuto Booster Batterie Voiture has a capacity of 21800mAh and a maximum current of 3000A.

Q: Can it start both gasoline and diesel engines?
A: Yes, it can start both gasoline engines up to 9.0L and diesel engines up to 8.0L.

Q: Is it safe to use in low temperatures?
A: Yes, the YaberAuto Booster Batterie Voiture can be used in temperatures as low as -4~140℉.

Q: Does it come with a portable air compressor?
A: Yes, this booster battery comes with a portable air compressor that can inflate tires, balloons, etc.

Q: Does the air compressor have an LED display?
A: Yes, the air compressor is equipped with an LED display for real-time data reading and safe use.

Q: What are the charging options available?
A: The booster battery has two USB output ports (5V/2.4A) and a DC output port (12V~16.8V 10A) with a DC cigarette lighter adapter included.

Q: Does it have an emergency LED light?
A: Yes, this booster battery has a LED light with three lighting modes (flashlight/SOS/strobe) for emergency situations or outdoor activities.

Q: What is included in the package?
A: The package includes the YaberAuto YA70 car starter with built-in air compressor, sturdy jumper cables, charging cable, DC adapter for cigarette lighter, three types of inflation nozzles, storage bag, and user manual.

Please let us know if you have any further questions about our products.
